User Manual for Schoeps CCM41 LG Supercardioid Compact Microphone Click to enlarge the picture
Contents of the user manual for the Schoeps CCM41 LG Supercardioid Compact Microphone
- Product category: Small Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Small Diaphragm Condenser
|
User manual for the Schoeps CCM41 LG Supercardioid Compact Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|

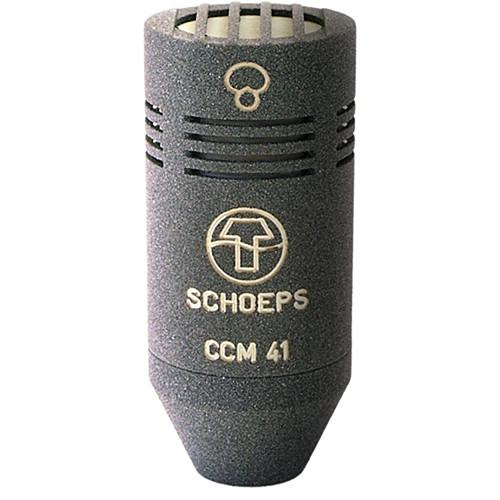

Product description The Schoeps CCM41 LG is a miniature supercardioid microphone with detachable cable. The design is a direct result of the demand for a compact capsule with the pick up of a shotgun microphone.Off-axis sound is attenuated more effectively than that of a traditional cardioid polar pattern, and its frequency response is well suited for natural reproduction of vocals and instruments. The CCM 41 has slightly more roll-off at the low end due to the gradient effect, and is well suited as a "spot" microphone for orchestras, choirs, ambiance and more. - Supercardioid with highly consistent directionality throughout its frequency range
- Ideally suited for music and speech
- High directivity, comparable to that of a short "shotgun" microphone up through midrange frequencies
- Often preferred for use in film sound recording and as a spot microphone in orchestras
In the Box Schoeps CCM41 LG Supercardioid Compact Microphone K 5 LU Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps CCM41 LG Supercardioid Compact Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps CCM 41 LG Specs | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 40Hz to 20kHz | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | 79 dB-A | | Maximum Input Sound Level | 132dB | | Power Requirements | 12V | | Output Impedance | Minimum Load: 600 Ohms
(If a lower load impedance is used, the main effect will be to reduce the maximum output level of the microphone.) | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 2.28 x 1.81" (58 x 46mm) (Length x Diameter)
K 5 LU Cable Length: 16.40 feet (5m) | | Weight | 43 g (1.51 oz) |
