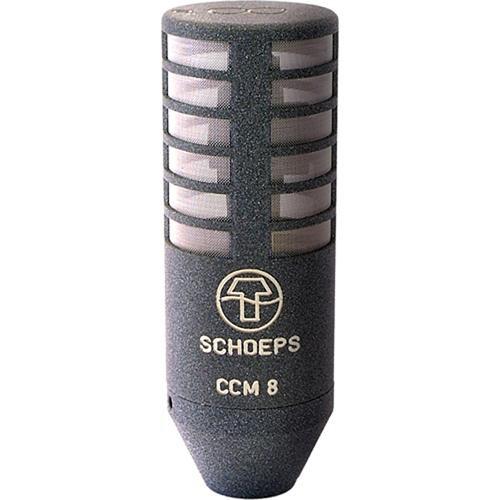

User Manual for Schoeps CCM8 LG Compact Figure-Eight Microphone Click to enlarge the picture
Contents of the user manual for the Schoeps CCM8 LG Compact Figure-Eight Microphone
- Product category: Small Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Small Diaphragm Condenser
|
User manual for the Schoeps CCM8 LG Compact Figure-Eight Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The Schoeps CCM8 LG is a miniature figure-eight microphone with a detachable cable. The figure-eight pattern design provides a bidirectional pickup that is almost completely identical at all frequencies. The figure-eight pattern is also useful in M/S stereo capturing. The K 5 LU adapter cable and an SGC miniature stand mount with swivel is also included. - Figure-Eight Polar Pattern
- The capsule is a pure pressure-gradient transducer with a figure-8 pattern. The bi-directional pattern is almost completely identical at all frequencies.
- Detachable K 5 LU Cable
- This version of the CCM8 features a detachable 3-Pin LEMO connector allowing easier microphone interchanging and placement.
- Off-Axis High Frequency Rejection
- The CCM8 provides exceptional high-frequency rejection at the off-axis sections of the capsule.
- Wide Linear Frequency Response
- The wide frequency response ensures accurate detail regardless of the source signal.
In the Box Schoeps CCM8 LG Compact Figure-Eight Microphone K 5 LU Adapter Cable SGC Miniature Stand Mount with Swivel Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps CCM8 LG Compact Figure-Eight Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps CCM8 LG Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Figure-8 | | Frequency Range | 40 Hz to 16 kHz | | Signal to Noise Ratio | 76 dB A-Weighted | | Equivalent Noise Level | 18 dB A-Weighted | | Maximum SPL | 134 dB SPL Peak | | Impedance | 90 Ohms | | Sensitivity | 10 mV/Pa | | Low-Cut Filter | @ 20 Hz | | | | Output Connectors | 1 x 3-Pin LEMO K 5 LU with Lemo to XLRM connection supplied | | Operating Current Consumption | 4 mA 8 mA with 12V phantom power | | Operating Voltage | 12 to 48 V | | Length | 2.28" / 58 mm | | Diameter | 0.79" / 20 mm | | Weight | 1.52 oz / 43 g | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 7.5 x 6.2 x 2.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
