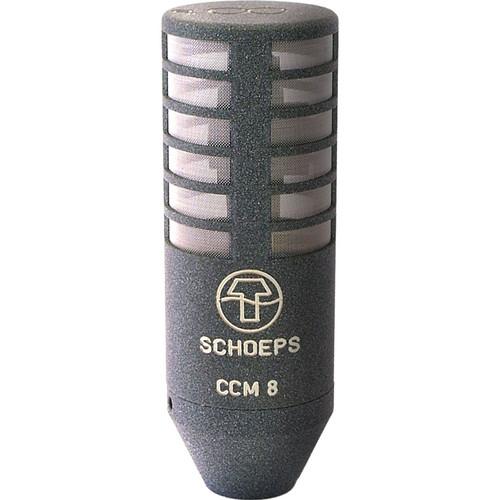

User Manual for Schoeps CCM8 UG Figure-Eight Compact Microphone Click to enlarge the picture
Contents of the user manual for the Schoeps CCM8 UG Figure-Eight Compact Microphone
- Product category: Small Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Small Diaphragm Condenser
|
User manual for the Schoeps CCM8 UG Figure-Eight Compact Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The Schoeps CCM8 UG is a miniature figure-eight microphone with detachable cable. The figure-eight pattern design provides a bi-directional pickup that is almost completely identical at all frequencies. The figure-eight pattern is also useful in M/S stereo capturing. - Figure-Eight Polar Pattern
- The capsule is a pure pressure-gradient transducer with a figure-8 pattern. The bi-directional pattern is almost completely identical at all frequencies
- Off-Axis High Frequency Rejection
- The CCM4 provides exceptional high frequency rejection at the off-axis sections of the capsule.
- Wide Linear Frequency Response
- The wide frequency response ensures accurate detail regardless of the source signal.
In the Box Schoeps CCM8 UG Figure-Eight Compact Microphone K 5 LU Adapter Cable Miniature Stand Mounts with Swivel SGC Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps CCM8 UG Figure-Eight Compact Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps CCM8 UG Specs | Transducer | Condenser | | Polar Pattern | Figure-Eight | | Frequency Response | 40Hz to 16kHz | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | 76 dB-A | | Maximum Input Sound Level | 132dB | | Power Requirements | 12V | | Output Impedance | Minimum Load: 600 Ohms
(If a lower load impedance is used, the main effect will be to reduce the maximum output level of the microphone.) | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 2.28 x 1.81" (58 x 46mm) (Length x Diameter)
K 5 LU Cable Length: 16.4' (5.0 m) | | Weight | 43 g (1.51 oz) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
