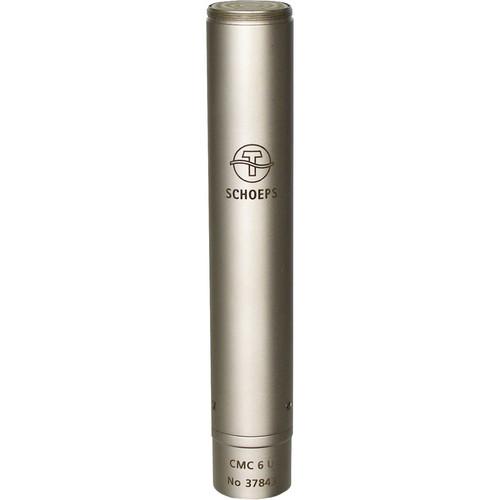

User Manual for Schoeps CMC 6UNI XT Microphone Amplifier Click to enlarge the picture
Contents of the user manual for the Schoeps CMC 6UNI XT Microphone Amplifier
- Product category: Modular Microphone Components Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Modular Microphone Components
|
User manual for the Schoeps CMC 6UNI XT Microphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The CMC 6UNI XT Microphone Amplifier from Schoeps is designed for standard 12 or 48V phantom powering. As the capsules of condenser microphones from Schoeps cannot be directly connected to microphone cables or inputs, a microphone amplifier is required in between. The amplifier’s circuitry recognizes the supply voltage and adjusts itself automatically.Its performance characteristics remain essentially the same with both 12 and 48V; mainly, the difference is that the current drawn at 12V is greater than at 48V. However, the 12V mode consumes less power and might be preferred for battery-powered recording.The microphone amplifier provides the electrostatic charge which the capsule requires in order to produce a signal. Since only a miniscule amount of current is contained in this signal, amplification of the current is required. To avoid interference to the signal on the way from the microphone to the input of the mixer or preamp, the signal is conveyed at low impedance and in a balanced form. The amplifier offers a symmetrical, transformer-less, direct-coupled Class A output stage with low impedance, low distortion, and high freedom from interference.The CMC 6UNI XT Microphone Amplifier is the 40 kHz version, which is indicated by the letters "xt" engraved on the microphone's output socket. It extends the frequency response of the axially addressed Colette capsules beyond 40 kHz. Note: The 2 amplifiers in a stereo pair of microphones should be of the same type. In the Box Schoeps CMC 6UNI XT Microphone Amplifier Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps CMC 6UNI XT Microphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps CMC 6UNI XT Specs | Voltage | 12 / 48 V | | Current Consumption | With 12 V: 8 mAWith 48 V: 4 mA | | Impedance | At 12 V: 25 ΩAt 48 V: 35 Ω | | Frequency | Low-Cut Frequency: 40 kHz | | Maximum Output Voltage | 1 V | | Load Impedance | Minimum Recommended Load Impedance: 600 Ω | | Finish | Nickel | | Length | 4.57" (11.61 cm) | | Diameter | 0.79" (2.01 cm) | | Weight | 2.12 oz (60.00 g) |
