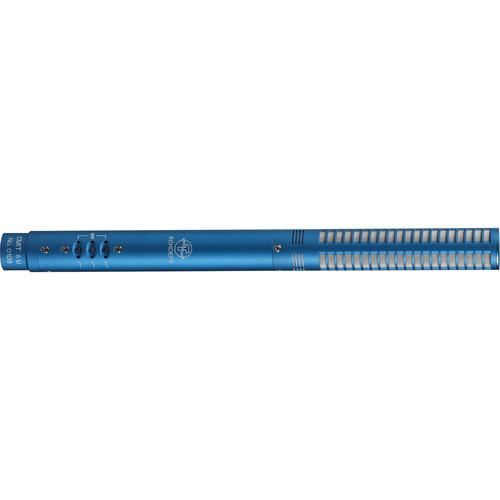

User Manual for Schoeps CMIT 5U Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Schoeps CMIT 5U Shotgun Microphone
- Product category: Shotgun Microphones Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Shotgun Microphones
|
User manual for the Schoeps CMIT 5U Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The blue Schoeps CMIT 5U is a short, lightweight shotgun condenser microphone designed to deliver accurate close and distant capture of dialog and musical instruments for boom operators, audio engineers, and musicians in film, television, and video production as well as music recording applications. Its supercardioid/lobe-shaped polar pattern yields precise directionality, high immunity to wind noise, and low coloration at the off-axis sections of the capsule. Multiple filter settings allow you to tailor the 40 Hz to 20 kHz frequency response to suit different environments and scenarios. A 40 Hz roll-off is active without any filter selection; the switches provide low-cut filters at 80 Hz or 300 Hz for management of proximity effect and handling noise, while a selectable high-frequency boost at 10 kHz enables increased vocal clarity and compensation for high-frequency loss caused by windscreens. LED indicators provide a reading of settings in low light and the settings are retained after power down. No batteries are required as the CMIT 5U is operated via 48V phantom power. It includes a windscreen, mic clip, and wood case. - Enhanced Rejection of Off-Axis Sound
- Low-coloration and steady attenuation of off-axis sound results in a narrow pick-up pattern and balanced sonic character
- High Directionality
- The supercardioid/lobe-shaped polar pattern offers directionality that increases smoothly with higher frequencies
- Switchable Filters
- Select one of three filter settings for a high-frequency rise or reduced low frequencies
- Versatile Frequency Selections
- Choose between a 5 dB shelving boost at 10 kHz, a 6 dB/octave roll-off at 300 Hz, an 18 dB/octave roll-off at 80 Hz, or a 6 dB/octave roll-off at 40 Hz (default mode)
- Neutral Sonic Characteristics
- The wide frequency response and high maximum SPL enable the microphone to accurately capture dialog and instruments
In the Box Schoeps CMIT 5U Shotgun Microphone (Blue) W 140B Foam Windscreen for Schoeps CMIT5U and MiniCMIT Shotgun Microphones (Blue) SG20 Microphone Adapter Stand Clamp Polished Wood Case Limited 2-Year Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps CMIT 5U Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps CMIT 5 Specs | | | Sound Field | Mono | | Operating Principle | Line Gradient | | Transducer | Condenser | | Tube | No | | Polar Pattern | Supercardioid | | Frequency Range | 40 Hz to 20 kHz | | Equivalent Noise Level | 14 dB A-Weighted
24 dB CCIR | | Maximum SPL | 132 dB SPL | | Pad | None | | Impedance | 50 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 17 mV/Pa | | Low-Cut Filter | 18 dB/Octave @ 80 Hz
6 dB/Octave @ 300 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.4 mA | | Operating Voltage | 48 V ± 4 V | | Length | 9.88" / 251 mm | | Diameter | 0.83" / 21 mm | | Weight | 3.14 oz / 89 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 12.9 x 6.2 x 2.2" |
