User Manual for Schoeps CMIT 5U Shotgun Microphone and Rycote Windshield Kit

• Product category: Small Diaphragm Condenser Schoeps
• Brand: Schoeps
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Schoeps Small Diaphragm Condenser

Product description

• CMIT 5U Shotgun Microphone (Blue) The blue Schoeps CMIT 5U is a short, lightweight shotgun condenser microphone designed to deliver accurate close and distant capture of dialog and musical instruments for boom operators, audio engineers, and musicians in film, television, and video production as well as music recording applications. Its supercardioid/lobe-shaped polar pattern yields precise directionality, high immunity to wind noise, and low coloration at the off-axis sections of the capsule. Multiple filter settings allow you to tailor the 40 Hz to 20 kHz frequency response to suit different environments and scenarios. A 40 Hz roll-off is active without any filter selection; the switches provide low-cut filters at 80 Hz or 300 Hz for management of proximity effect and handling noise, while a selectable high-frequency boost at 10 kHz enables increased vocal clarity and compensation for high-frequency loss caused by windscreens. LED indicators provide a reading of settings in low light and the settings are retained after power down. No batteries are required as the CMIT 5U is operated via 48V phantom power. It includes a windscreen, mic clip, and wood case.
  Enhanced Rejection of Off-Axis Sound
  • Low-coloration and steady attenuation of off-axis sound results in a narrow pick-up pattern and balanced sonic character
  High Directionality
  • The supercardioid/lobe-shaped polar pattern offers directionality that increases smoothly with higher frequencies
  Switchable Filters
  • Select one of three filter settings for a high-frequency rise or reduced low frequencies
  Versatile Frequency Selections
  • Choose between a 5 dB shelving boost at 10 kHz, a 6 dB/octave roll-off at 300 Hz, an 18 dB/octave roll-off at 80 Hz, or a 6 dB/octave roll-off at 40 Hz (default mode)
  Neutral Sonic Characteristics
  • The wide frequency response and high maximum SPL enable the microphone to accurately capture dialog and instruments

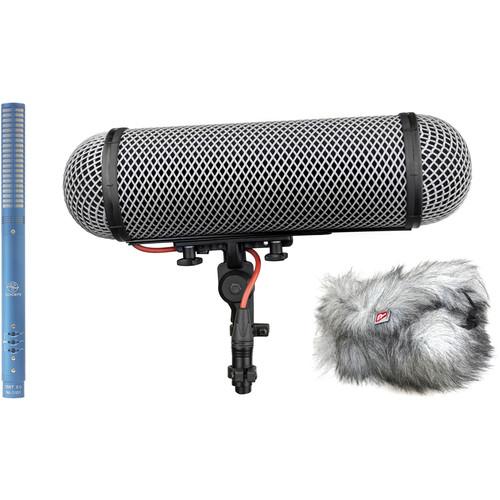

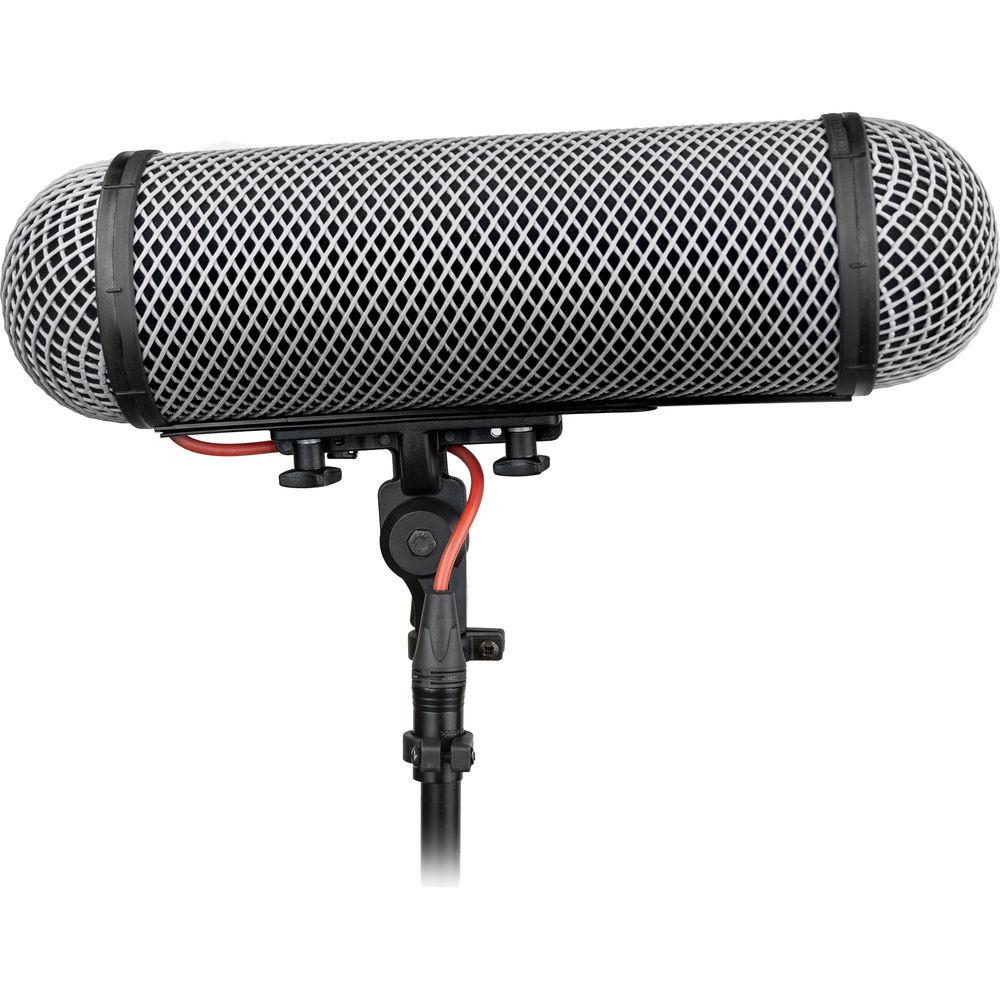

• Windshield Kit for Sennheiser MKH416 & Other Select Shotgun Microphones This Windshield Kit from Rycote is intended for use with the Sennheiser MKH416 and other select shotgun microphones. It can be used with a Schoeps CMIT5U or a Rode NTG3 shotgun microphone and is a complete modular windshield system including a suspension mount, a windjammer, a windshield, cables, and other essentials. This kit is a suitable solution for anyone who does not already own a suspension mount or windjammer.
  Compatible Microphones
  • The Windshield Kit 416, optimized for the Sennheiser MKH416, is also fully compatible with other top shotgun microphones, such as the Schoeps CMIT 5U, DPA 4017B, Sanken CS-3e and CS-2, Neumann KMR 81i, and Rode NTG3
  Fits Like a Glove
  • The 14.5" basket of the Windshield Kit 416 perfectly ensconces the Sennheiser MKH416 and other compatible shotgun microphones, as does the included shock mount

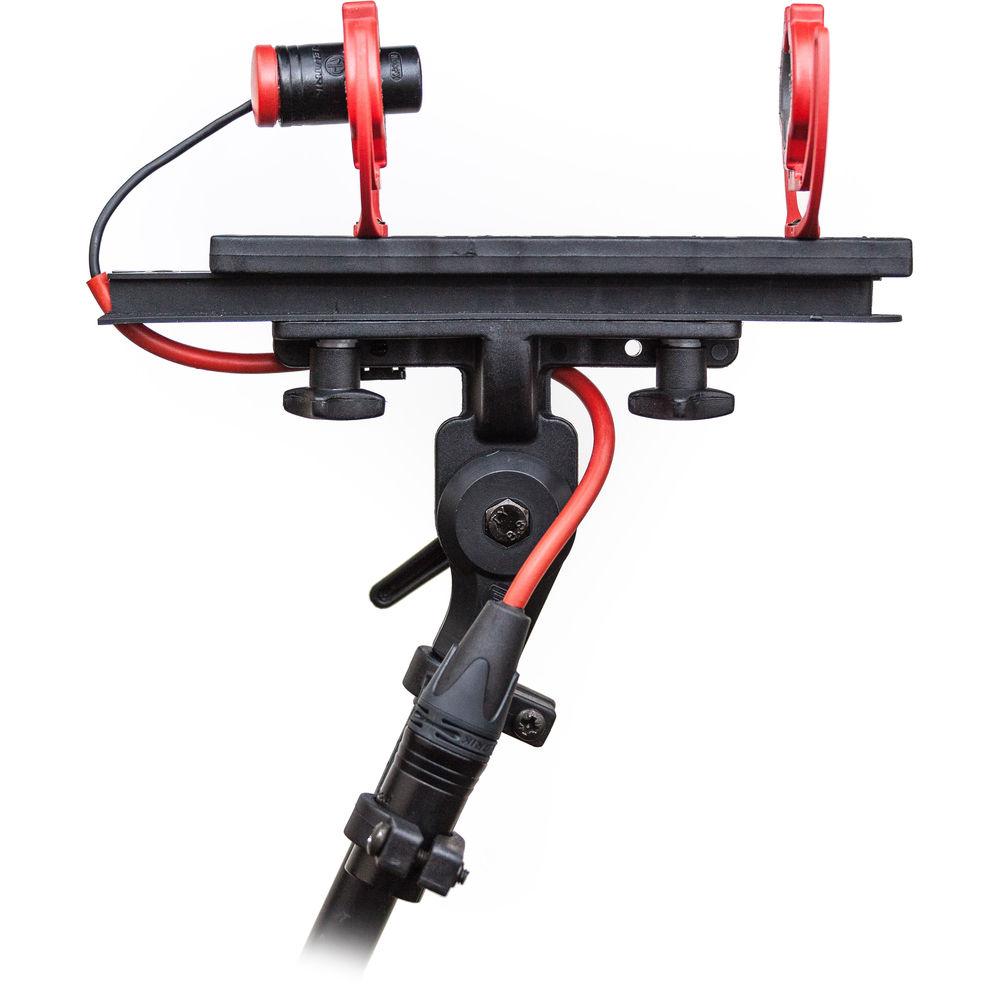

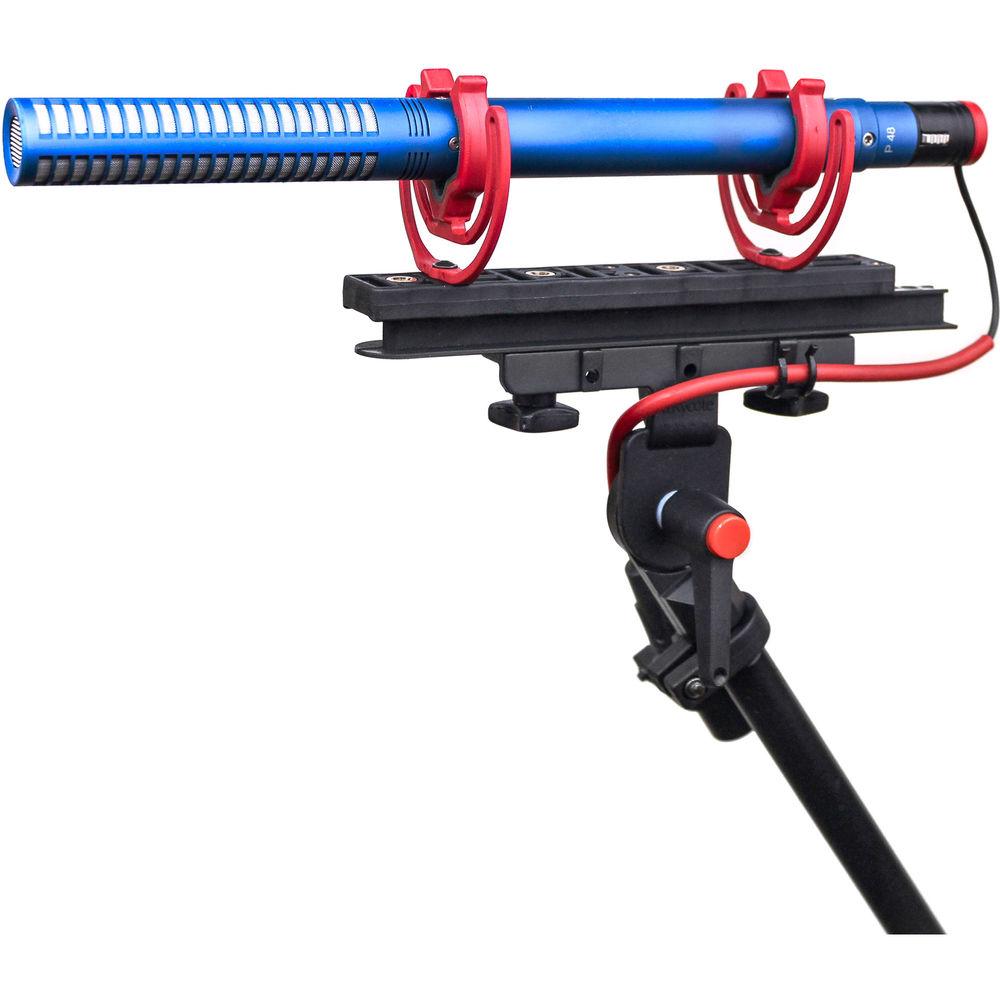

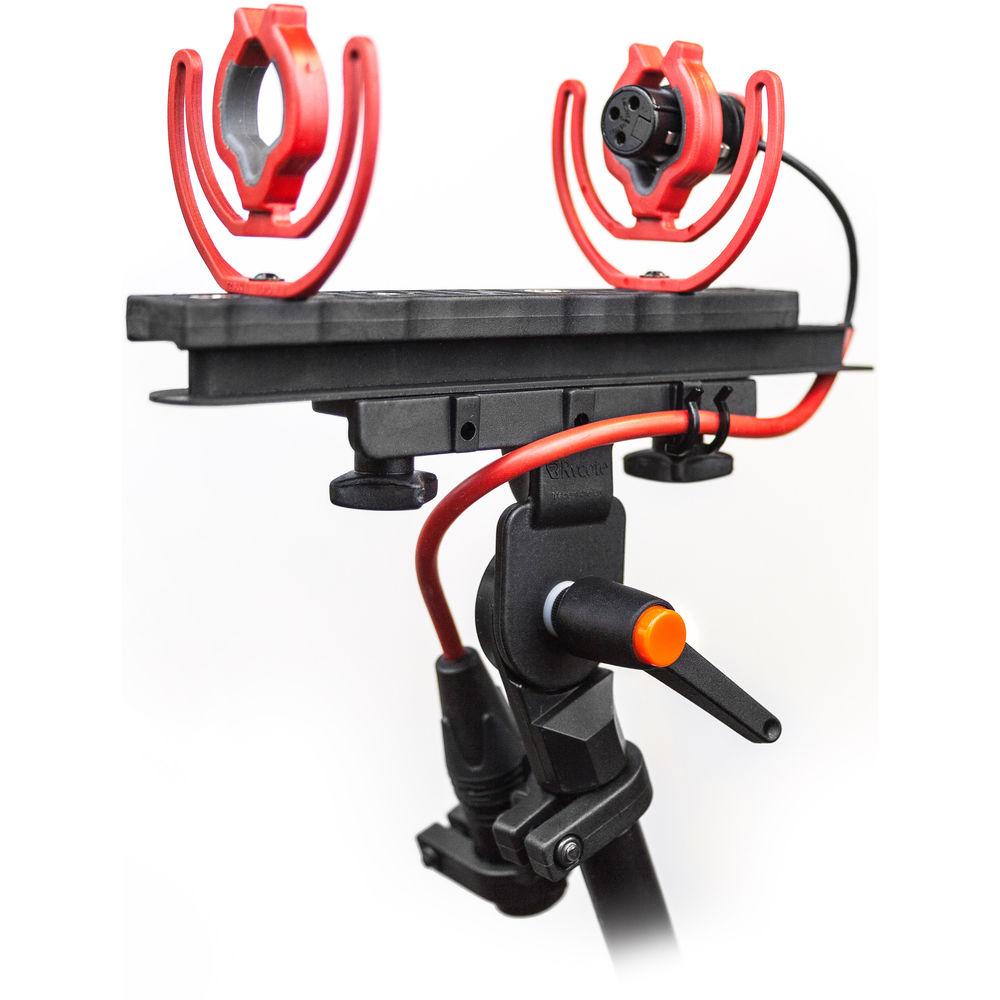

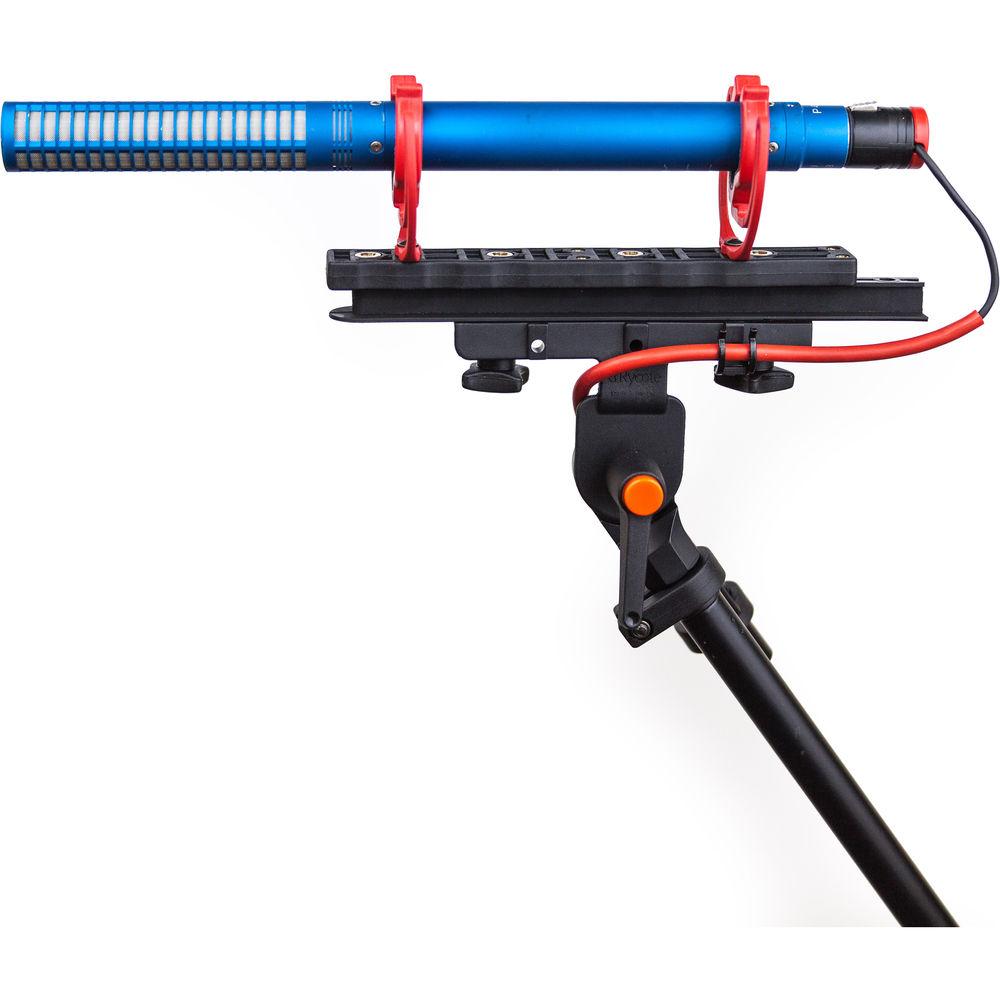

  Lyre Microphone Isolation
  • A 72-shore Lyre suspension system isolates the microphone; this, in conjunction with the included and captive cable, minimizes handling noise
  RF-Shielded XLR
  • This kit includes the Rycote 90° Shortie XLR inside the basket, which sports a built-in RF Shield to aid in facilitating clean audio capture from condenser microphones in dirty RF environments

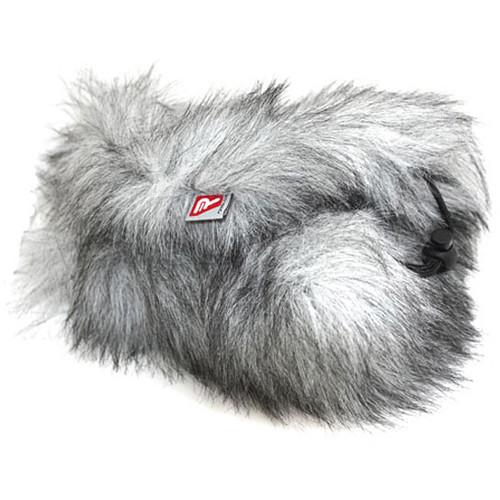

  Included Windjammer
  • The included Windjammer facilitates wind attenuation while preserving transparent audio transmission
  Boom Adapter and XLR Holder
  • An included adapter attaches to boompoles via industry standard female 3/8" UNC brass thread attachment, while an offset Cyclone Series XLR holder sits outside the shield to hold the tail of the XLR cable firmly in place

• W 140B Foam Windscreen for Schoeps CMIT5U and MiniCMIT Shotgun Microphones (Blue)

• SG20 Microphone Adapter Stand Clamp

• Polished Wood Case

• Limited 2-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CMIT 5U Shotgun Microphone (Blue)

  Sound Field	Mono
  Operating Principle	Line Gradient
  Transducer	Condenser
  Tube	No
  Polar Pattern	Supercardioid
  Frequency Range	40 Hz to 20 kHz
  Equivalent Noise Level	14 dB A-Weighted 24 dB CCIR
  Maximum SPL	132 dB SPL
  Pad	None
  Impedance	50 Ohms
  Load Impedance	600 Ohms
  Sensitivity	17 mV/Pa
  Low-Cut Filter	18 dB/Octave @ 80 Hz 6 dB/Octave @ 300 Hz

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	4.4 mA
  Operating Voltage	48 V ± 4 V
  Length	9.88" / 251 mm
  Diameter	0.83" / 21 mm
  Weight	3.14 oz / 89 g

  Box Dimensions (LxWxH)	12.9 x 6.2 x 2.2"

• Windshield Kit for Sennheiser MKH416 & Other Select Shotgun Microphones

  Outer Diameter	4.5" / 11.4 cm
  Length	14.5" / 36.8 cm

  Box Dimensions (LxWxH)	19.1 x 8.1 x 4.4"
