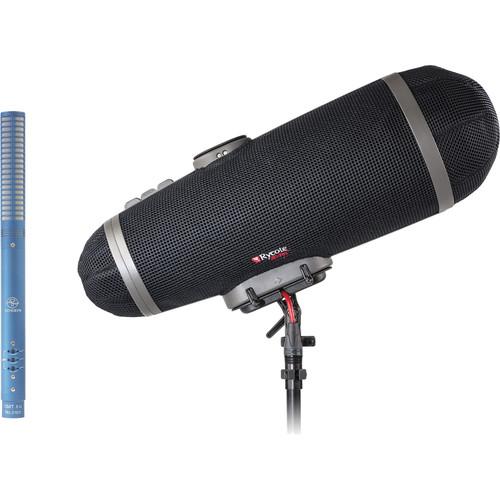

User Manual for Schoeps CMIT CWS SET - CMIT 5 U Microphone with Windshield Kit

• Product category: Shotgun Microphones Schoeps
• Brand: Schoeps
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Schoeps Shotgun Microphones

Product description

• CMIT 5U Shotgun Microphone (Blue) The blue Schoeps CMIT 5U is a short, lightweight shotgun condenser microphone designed to deliver accurate close and distant capture of dialog and musical instruments for boom operators, audio engineers, and musicians in film, television, and video production as well as music recording applications. Its supercardioid/lobe-shaped polar pattern yields precise directionality, high immunity to wind noise, and low coloration at the off-axis sections of the capsule. Multiple filter settings allow you to tailor the 40 Hz to 20 kHz frequency response to suit different environments and scenarios. A 40 Hz roll-off is active without any filter selection; the switches provide low-cut filters at 80 Hz or 300 Hz for management of proximity effect and handling noise, while a selectable high-frequency boost at 10 kHz enables increased vocal clarity and compensation for high-frequency loss caused by windscreens. LED indicators provide a reading of settings in low light and the settings are retained after power down. No batteries are required as the CMIT 5U is operated via 48V phantom power. It includes a windscreen, mic clip, and wood case.
  Enhanced Rejection of Off-Axis Sound
  • Low-coloration and steady attenuation of off-axis sound results in a narrow pick-up pattern and balanced sonic character
  High Directionality
  • The supercardioid/lobe-shaped polar pattern offers directionality that increases smoothly with higher frequencies
  Switchable Filters
  • Select one of three filter settings for a high-frequency rise or reduced low frequencies
  Versatile Frequency Selections
  • Choose between a 5 dB shelving boost at 10 kHz, a 6 dB/octave roll-off at 300 Hz, an 18 dB/octave roll-off at 80 Hz, or a 6 dB/octave roll-off at 40 Hz (default mode)
  Neutral Sonic Characteristics
  • The wide frequency response and high maximum SPL enable the microphone to accurately capture dialog and instruments
• W 140G Foam Windscreen for Schoeps CMIT5U and MiniCMIT Shotgun Microphones (Gray) The gray Schoeps W 140G is a windscreen designed to fit a Schoeps CMIT5U or MiniCMIT shotgun microphone and provide significant reduction of plosives and wind noise for sound recordists and boom operators in field recording, interviews, ENG, and film and television production. Its acoustic foam construction protects the mic from moisture and dirt commonly encountered in outdoor environments. W 140 windscreens deliver up to 18 dBA of wind-noise reduction.
  • • Acoustic foam windscreen
    • Reduces plosives and wind noise
    • 18 dBA of wind-noise reduction
    • Guards microphone against moisture and dirt
    • Fits Schoeps CMIT5U and MiniCMIT shotgun microphones
• SG20 Microphone Adapter Stand Clamp The Sanken SG20 Microphone Stand Adapter is designed to stand-mount Sanken Microphones measuring 0.78" (20mm) in diameter. The SG20 features a swivel action for flexible positioning.
• Cyclone Windshield Kit (Large) Ideal for a multitude of outdoor ENG, broadcast, and film applications, this large Cyclone Windshield Kit from Rycote features a two-piece "Z-Locking" basket design that magnetically affixes around your microphone, isolating the mic from wind-caused noise. Up to 50 dB of reduction can be achieved with use of the Cyclone Windshield alone, and >60 dB is possible when used with a Windjammer on top of it. Increased transparency is achieved due to the cone-like shape, which reduces reflections from parallel surfaces in the recording environment, providing clean audio recordings during outdoor interviews, location shoots, and more. It's designed to provide wind noise reduction that exceeds traditional modular-style windshield/windjammer combined performance.

  The Cyclone introduces a "multi-suspension" design that provides isolation against handling noise, cable-borne noises, and windshield basket self-noise. This multi-suspension design inhibits noise and vibration induced by the windshield itself from being mechanically transmitted, thereby improving recording quality.

  The kit includes the Cyclone Suspension fitted with 72-shore Universal Lyres, a Cyclone XLR cable, a large Cyclone Windshield, a pair of Universal Lyres 62-shore for lightweight microphones, and a hex key driver for making adjustments to the Lyres on the suspension.
  Suitable Mics:
  • • AKG: C568EB
    • Audio-Technica: AT 4073, BP4073, AT897, AT877
    • Neumann: KMR 81i
    • Røde NTG-2, NTG-3, NTG-4+
    • Sanken: CS-2, CS-3e
    • Schoeps: CMIT 5U, Super CMIT, SuperCMIT 2U
    • Sennheiser: MKH 416, MKH 60, MKE 600
    • Shure: VP89S
    • Sony: ECM 670, ECM 678

• W 140B Foam Windscreen for Schoeps CMIT5U and MiniCMIT Shotgun Microphones (Blue)

• SG20 Microphone Adapter Stand Clamp

• Polished Wood Case

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• 1 Year Warranty

• Cyclone Suspension Fitted with 72-Shore Universal Lyres

• Cyclone Cable (XLR to XLR)

• Large Cyclone Windshield for the Cyclone Windshield Kit

• Pair of Cyclone Universal Lyre (62 Shore)

• Hex Key Driver

• Limited 1-Year Warranty

Also Includes

• Wooden Box

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CMIT 5U Shotgun Microphone (Blue)

  Sound Field	Mono
  Operating Principle	Line Gradient
  Transducer	Condenser
  Tube	No
  Polar Pattern	Supercardioid
  Frequency Range	40 Hz to 20 kHz
  Equivalent Noise Level	14 dB A-Weighted 24 dB CCIR
  Maximum SPL	132 dB SPL
  Pad	None
  Impedance	50 Ohms
  Load Impedance	600 Ohms
  Sensitivity	17 mV/Pa
  Low-Cut Filter	18 dB/Octave @ 80 Hz 6 dB/Octave @ 300 Hz

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	4.4 mA
  Operating Voltage	48 V ± 4 V
  Length	9.88" / 251 mm
  Diameter	0.83" / 21 mm
  Weight	3.14 oz / 89 g

  Box Dimensions (LxWxH)	12.9 x 6.2 x 2.2"

• W 140G Foam Windscreen for Schoeps CMIT5U and MiniCMIT Shotgun Microphones (Gray)

  Wind Attenuation	18 dBA @ 11 mph
  Diameter	1.6 to 2" / 41 to 50 mm
  Length	5.5" / 140 mm
  Weight	<0.7 oz / 20 g

  Box Dimensions (LxWxH)	6.5 x 5.0 x 1.4"

• SG20 Microphone Adapter Stand Clamp

  Box Dimensions (LxWxH)	2.0 x 1.0 x 0.5"

• Cyclone Windshield Kit (Large)

  Maximum Noise Attenuation	50 dB
  Outer Diameter	4.5 to 6.2" / 113 to 157 mm
  Length	18.5" / 470 mm
  Weight	20.8 oz / 590 g
  Operating Temperature	-5 to 100°F / -20 to 38°C

  Box Dimensions (LxWxH)	19.2 x 9.2 x 7.2"
