Schoeps CMIT Double M S Piano

User Manual for Schoeps CMIT Double M S Piano Set Microphone Trio with Windscreen System

• Product category: Small Diaphragm Condenser Schoeps
• Brand: Schoeps
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Schoeps Small Diaphragm Condenser

Product description

• CMIT 5U Shotgun Microphone (Blue) The blue Schoeps CMIT 5U is a short, lightweight shotgun condenser microphone designed to deliver accurate close and distant capture of dialog and musical instruments for boom operators, audio engineers, and musicians in film, television, and video production as well as music recording applications. Its supercardioid/lobe-shaped polar pattern yields precise directionality, high immunity to wind noise, and low coloration at the off-axis sections of the capsule. Multiple filter settings allow you to tailor the 40 Hz to 20 kHz frequency response to suit different environments and scenarios. A 40 Hz roll-off is active without any filter selection; the switches provide low-cut filters at 80 Hz or 300 Hz for management of proximity effect and handling noise, while a selectable high-frequency boost at 10 kHz enables increased vocal clarity and compensation for high-frequency loss caused by windscreens. LED indicators provide a reading of settings in low light and the settings are retained after power down. No batteries are required as the CMIT 5U is operated via 48V phantom power. It includes a windscreen, mic clip, and wood case.
  Enhanced Rejection of Off-Axis Sound
  • Low-coloration and steady attenuation of off-axis sound results in a narrow pick-up pattern and balanced sonic character
  High Directionality
  • The supercardioid/lobe-shaped polar pattern offers directionality that increases smoothly with higher frequencies
  Switchable Filters
  • Select one of three filter settings for a high-frequency rise or reduced low frequencies
  Versatile Frequency Selections
  • Choose between a 5 dB shelving boost at 10 kHz, a 6 dB/octave roll-off at 300 Hz, an 18 dB/octave roll-off at 80 Hz, or a 6 dB/octave roll-off at 40 Hz (default mode)
  Neutral Sonic Characteristics
  • The wide frequency response and high maximum SPL enable the microphone to accurately capture dialog and instruments
• CCM4 LG Cardioid Compact Microphone The Schoeps CCM4 is a miniature cardioid microphone featuring a detachable cable and designed for use on singing and speaking voices as well as a wide variety of instruments. It can be used as a spot microphone or for stereo recording with additional mics in coincident, ORTF, or M/S microphone arrangements.The CCM 4 offers a flat frequency response, optimal rejection of rear-incident sound, and a directional pattern that remains constant throughout the audio frequency range. This mic is free of coloration whether the sound is arriving at the front, the sides, or from all around the mic at once.
  • Classic cardioid
  • Suitable for the widest range of applications, either as a spot microphone or for stereo recording with additional mics in coincident, ORTF, or M/S microphone arrangements
  • Consistent directionality throughout its frequency range
  • Preferred for singing or speaking voices and most instruments
• CCM8 LG Compact Figure-Eight Microphone The Schoeps CCM8 LG is a miniature figure-eight microphone with a detachable cable. The figure-eight pattern design provides a bidirectional pickup that is almost completely identical at all frequencies. The figure-eight pattern is also useful in M/S stereo capturing. The K 5 LU adapter cable and an SGC miniature stand mount with swivel is also included.
  Figure-Eight Polar Pattern
  • The capsule is a pure pressure-gradient transducer with a figure-8 pattern. The bi-directional pattern is almost completely identical at all frequencies.
  Detachable K 5 LU Cable
  • This version of the CCM8 features a detachable 3-Pin LEMO connector allowing easier microphone interchanging and placement.
  Off-Axis High Frequency Rejection
  • The CCM8 provides exceptional high-frequency rejection at the off-axis sections of the capsule.
  Wide Linear Frequency Response
  • The wide frequency response ensures accurate detail regardless of the source signal.
• AK DMS 3U Adapter Cable The AK DMS 3U Adapter Cable from Schoeps is used with the Schoeps "Surround Sets" for the Double M/S system. An XLR-7M output connector carries the signals from all three microphones (front mid, figure-8 and rear mid); the AK DMS 3U then splits the three signals out again.

• W 140B Foam Windscreen for Schoeps CMIT5U and MiniCMIT Shotgun Microphones (Blue)

• SG20 Microphone Adapter Stand Clamp

• Polished Wood Case

• Limited 2-Year Warranty

• K 5 LU Cable

• SGC Miniature Stand Mount with Swivel

• Limited 2-Year Warranty

• K 5 LU Adapter Cable

• SGC Miniature Stand Mount with Swivel

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

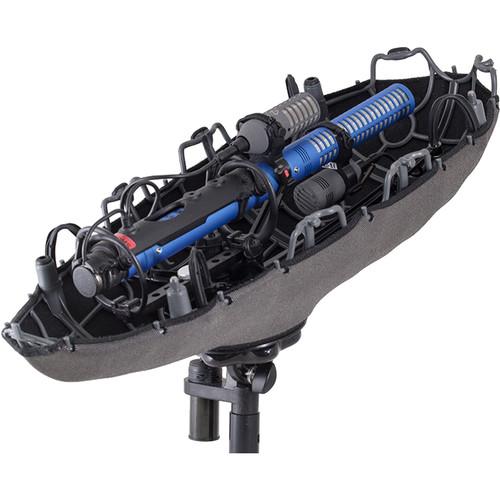

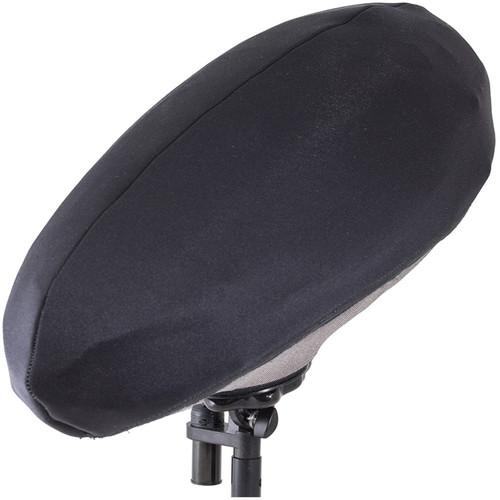

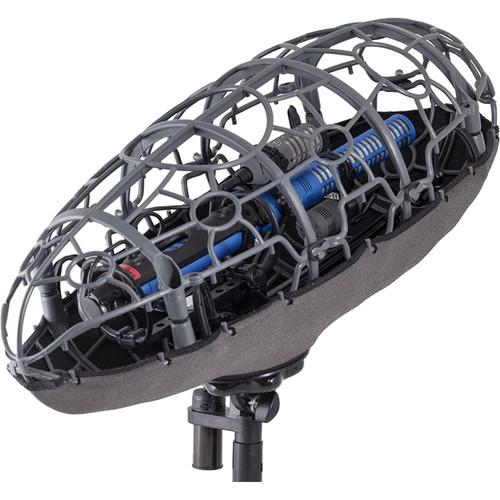

• WSC Piano PIA-3S Basket-Type Windscreen Set

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CMIT 5U Shotgun Microphone (Blue)

  Sound Field	Mono
  Operating Principle	Line Gradient
  Transducer	Condenser
  Tube	No
  Polar Pattern	Supercardioid
  Frequency Range	40 Hz to 20 kHz
  Equivalent Noise Level	14 dB A-Weighted 24 dB CCIR
  Maximum SPL	132 dB SPL
  Pad	None
  Impedance	50 Ohms
  Load Impedance	600 Ohms
  Sensitivity	17 mV/Pa
  Low-Cut Filter	18 dB/Octave @ 80 Hz 6 dB/Octave @ 300 Hz

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	4.4 mA
  Operating Voltage	48 V ± 4 V
  Length	9.88" / 251 mm
  Diameter	0.83" / 21 mm
  Weight	3.14 oz / 89 g

  Box Dimensions (LxWxH)	12.9 x 6.2 x 2.2"

• CCM4 LG Cardioid Compact Microphone

  Sound Field	Mono
  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	40 Hz to 20 kHz
  Signal to Noise Ratio	79 dB A-Weighted
  Equivalent Noise Level	15 dB A-Weighted
  Maximum SPL	132 dB SPL Peak
  THD	0.5%
  Impedance	90 Ohms
  Sensitivity	13 mV/Pa

  Output Connectors	1 x 3-Pin LEMO K 5 LU Lemo 3-Pin to XLR 3-Pin cable included
  Cable Length	16.40' / 5 m
  Operating Voltage	48 V Will run on either standard 12 V or standard 48 V power only (not between voltages)
  Length	2.28" / 58 mm
  Diameter	0.79" / 20 mm
  Weight	1.52 oz / 43 g

  Box Dimensions (LxWxH)	7.48 x 6.299 x 2.52"

• CCM8 LG Compact Figure-Eight Microphone

  Sound Field	Mono
  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Polar Pattern	Figure-8
  Frequency Range	40 Hz to 16 kHz
  Signal to Noise Ratio	76 dB A-Weighted
  Equivalent Noise Level	18 dB A-Weighted
  Maximum SPL	134 dB SPL Peak
  Impedance	90 Ohms
  Sensitivity	10 mV/Pa
  Low-Cut Filter	@ 20 Hz

  Output Connectors	1 x 3-Pin LEMO K 5 LU with Lemo to XLRM connection supplied
  Operating Current Consumption	4 mA 8 mA with 12V phantom power
  Operating Voltage	12 to 48 V
  Length	2.28" / 58 mm
  Diameter	0.79" / 20 mm
  Weight	1.52 oz / 43 g

  Box Dimensions (LxWxH)	7.5 x 6.2 x 2.5"

• AK DMS 3U Adapter Cable

  Length	1.6' (0.5 m)
  Input	XLR-7F 1 ground 2 front cardioid "+ phase" 3 front cardioid "- phase" 4 fig-8 "+ phase" 5 fig-8 "- phase" 6 rear cardioid "+ phase" 7 rear cardioid "- phase"
  Output	3× XLR-3M yellow = front cardioid red = figure-eight brown = rear cardioid

  Box Dimensions (LxWxH)	10.0 x 6.0 x 0.6"
