User Manual for Schoeps CMIT Mono Piano Set CMIT 5U Shotgun Microphone with Windscreen System Click to enlarge the picture
Contents of the user manual for the Schoeps CMIT Mono Piano Set CMIT
- Product category: Small Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Small Diaphragm Condenser
 |
User manual for the Schoeps CMIT Mono Piano Set CMIT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|

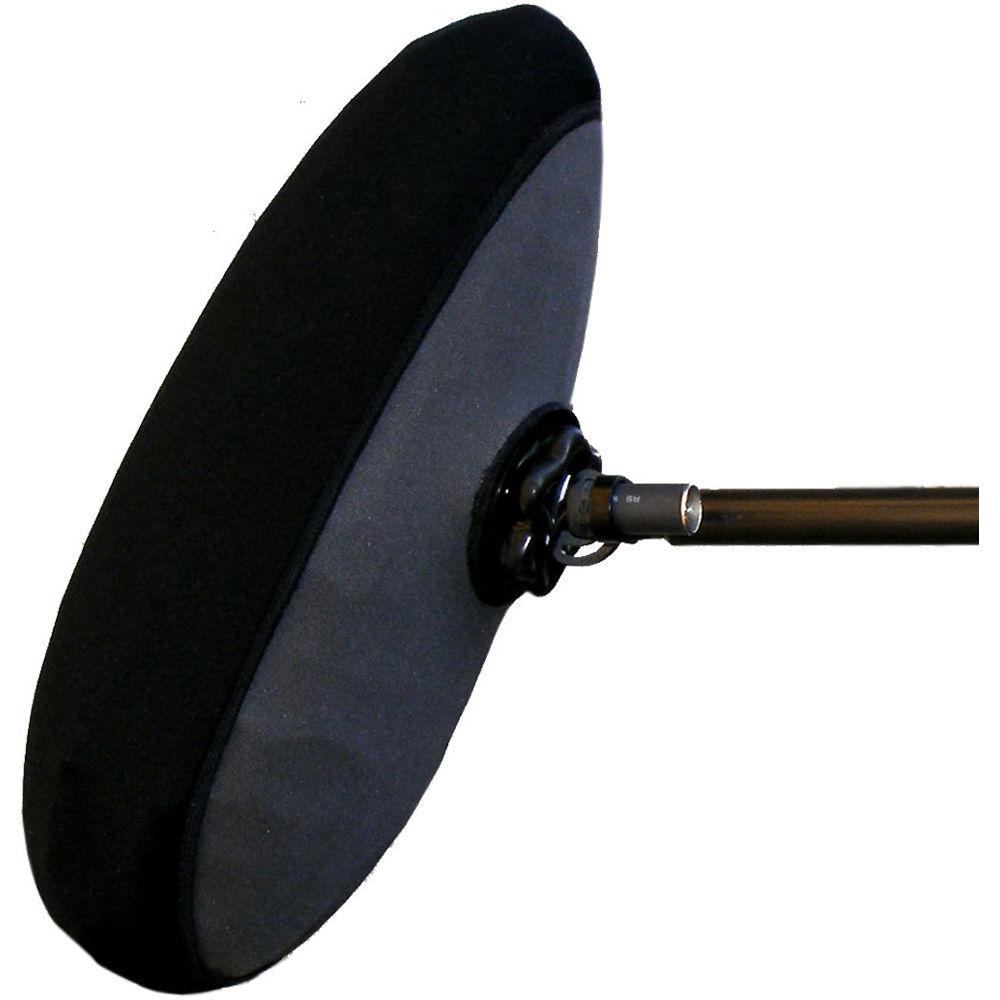

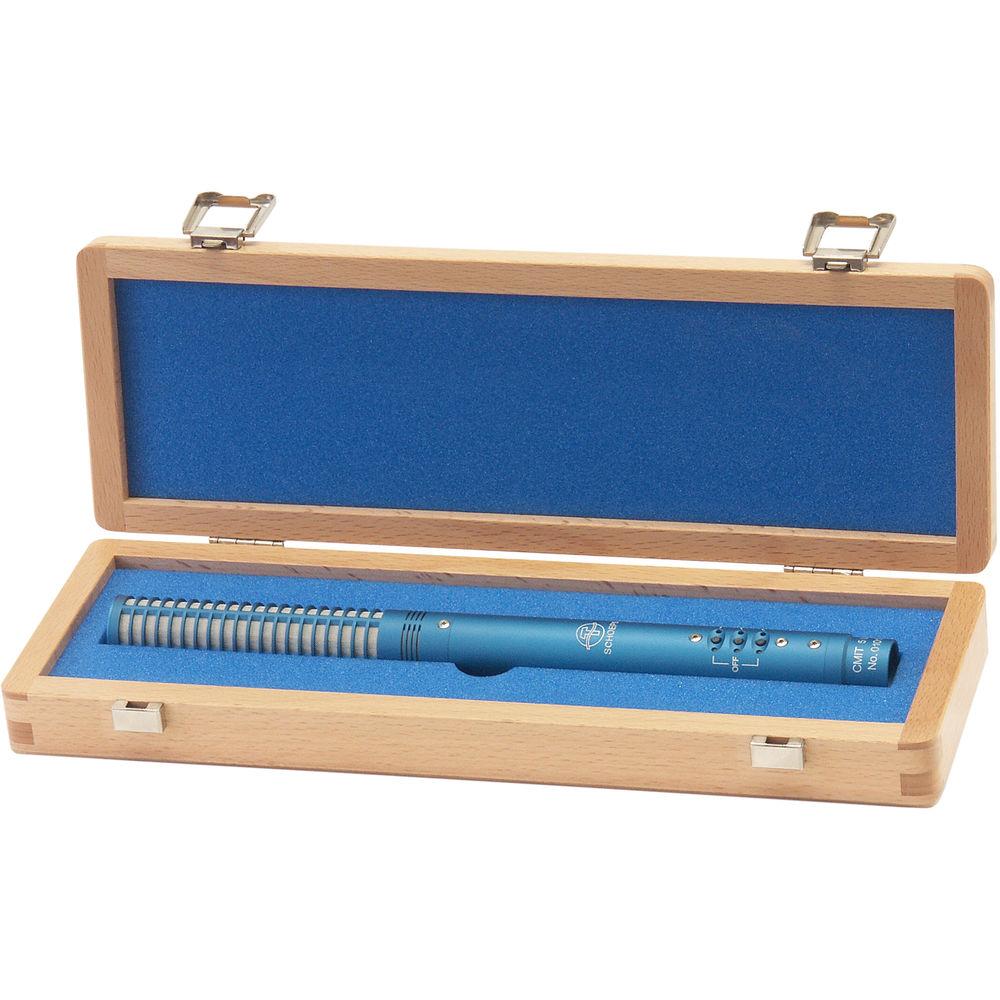

Product description The Schoeps CMIT Mono Piano Set is a shotgun microphone with a windscreen set designed for mono recording of dialog and instruments indoors or outdoors in windy conditions. It includes a Schoeps CMIT 5U shotgun condenser microphone, basket-type windscreen system, fur cover, microphone clip, and a wood case.The CMIT 5U boasts a wide frequency response, excellent off-axis rejection, and selectable frequency adjustments. The included PIA-1 windscreen set features elastic suspension to cradle the microphone and eliminate handling noise. Install the supplied long-pile fur cover over the protective cage for enhanced immunity to wind noise without compromising acoustical transparency.The PIA-1's one-axis swivel with 3/8" thread allows easy mounting on a boompole. Audio connectivity is simplified via the integrated XLR extension. - Enhanced Rejection of Off-Axis Sound
- Low-coloration and steady attenuation of off-axis sound results in a narrow pick-up pattern and balanced sonic character
- High Directionality
- The supercardioid/lobe-shaped polar pattern offers directionality that increases smoothly with higher frequencies
- Switchable Filters
- Select one of three filter settings for a high-frequency rise or reduced low frequencies
- Versatile Frequency Selections
- Choose between a 5 dB shelving boost at 10 kHz, a 6 dB/octave roll-off at 300 Hz, an 18 dB/octave roll-off at 80 Hz, or a 6 dB/octave roll-off at 40 Hz (default mode)
- Neutral Sonic Characteristics
- The wide frequency response and high maximum SPL enable the microphone to accurately capture dialog and instruments
- Effective Physical Protection
- Cinela OSIX–style elastic suspension prevents the transmission of noise from your boom to the mic
- Attenuation of Wind Noise
- Fur cover easily installs over the windscreen cage and delivers high attenuation of wind noise

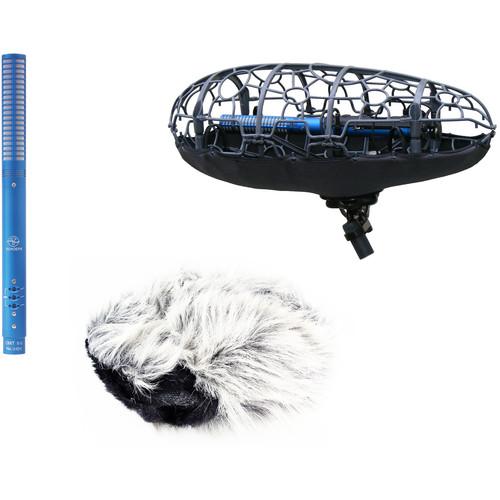

In the Box Schoeps CMIT Mono Piano Set CMIT 5U Shotgun Microphone with Windscreen System CMIT 5U Shotgun Microphone (Blue) WSC Piano PIA-1 Basket-Type Windscreen Set Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps CMIT Mono Piano Set CMIT 5U Shotgun Microphone with Windscreen System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps CMIT 5U Specs | | | Sound Field | Mono | | Operating Principle | Line Gradient | | Transducer | Condenser | | Tube | No | | Polar Pattern | Supercardioid | | Frequency Range | 40 Hz to 20 kHz | | Equivalent Noise Level | 14 dB A-Weighted
24 dB CCIR | | Maximum SPL | 132 dB SPL | | Pad | None | | Impedance | 50 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 17 mV/Pa | | Low-Cut Filter | 18 dB/Octave @ 80 Hz
6 dB/Octave @ 300 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.4 mA | | Operating Voltage | 48 V ± 4 V | | Length | 9.88" / 251 mm | | Diameter | 0.83" / 21 mm | | Weight | 3.14 oz / 89 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
