Schoeps CMIT SSFT SET CMIT5U Shotgun

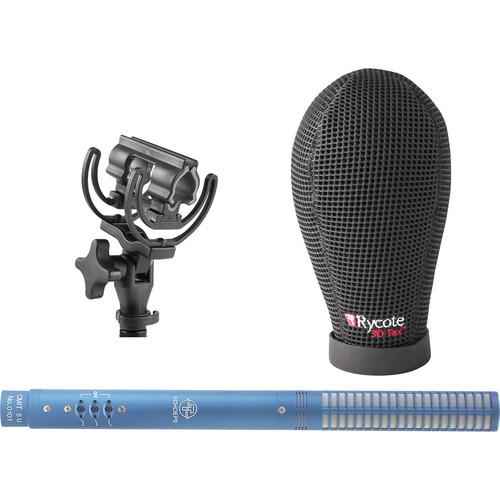

User Manual for Schoeps CMIT SSFT SET CMIT5U Shotgun with Suspension and Windshield Kit

• Product category: Shotgun Microphones Schoeps
• Brand: Schoeps
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Schoeps Shotgun Microphones

Product description

• CMIT 5U Shotgun Microphone (Blue) The blue Schoeps CMIT 5U is a short, lightweight shotgun condenser microphone designed to deliver accurate close and distant capture of dialog and musical instruments for boom operators, audio engineers, and musicians in film, television, and video production as well as music recording applications. Its supercardioid/lobe-shaped polar pattern yields precise directionality, high immunity to wind noise, and low coloration at the off-axis sections of the capsule. Multiple filter settings allow you to tailor the 40 Hz to 20 kHz frequency response to suit different environments and scenarios. A 40 Hz roll-off is active without any filter selection; the switches provide low-cut filters at 80 Hz or 300 Hz for management of proximity effect and handling noise, while a selectable high-frequency boost at 10 kHz enables increased vocal clarity and compensation for high-frequency loss caused by windscreens. LED indicators provide a reading of settings in low light and the settings are retained after power down. No batteries are required as the CMIT 5U is operated via 48V phantom power. It includes a windscreen, mic clip, and wood case.
  Enhanced Rejection of Off-Axis Sound
  • Low-coloration and steady attenuation of off-axis sound results in a narrow pick-up pattern and balanced sonic character
  High Directionality
  • The supercardioid/lobe-shaped polar pattern offers directionality that increases smoothly with higher frequencies
  Switchable Filters
  • Select one of three filter settings for a high-frequency rise or reduced low frequencies
  Versatile Frequency Selections
  • Choose between a 5 dB shelving boost at 10 kHz, a 6 dB/octave roll-off at 300 Hz, an 18 dB/octave roll-off at 80 Hz, or a 6 dB/octave roll-off at 40 Hz (default mode)
  Neutral Sonic Characteristics
  • The wide frequency response and high maximum SPL enable the microphone to accurately capture dialog and instruments
• 15cm Super-Softie Wind Shield for Shotgun Mics The Rycote 15cm Super-Softie Wind Shield for Shotgun Mics features an aerodynamic shape and surface structure made from the company's 3D-Tex material, which allows for attenuation of wind noise with acoustic transparency. It is suitable for a variety of sound recording applications including video, ENG, and more.

  The 15cm Super-Softie has no rigid internal structure, thus it causes virtually no polar pattern distortion. Its robust design has been engineered for use in challenging environments, and if it becomes rain-soaked, it can be squeezed out and shaken dry quickly. Also, if it becomes coated with dust it can be rinsed quickly without affecting its performance.
  Fits these and similar sized mics:
  • • Audio-Technica AT 835ST (BP4029)
    • Audio-Technica AT 897
    • Neumann KMR 81i
    • Neumann KMR-81D
    • RODE NTG-1
    • RODE NTG-2
    • RODE NTG4
    • RODE NTG4+
    • Sanken CS 1
    • Sanken CS 2
    • Schoeps Super CMIT
    • Sennheiser MKE 600
    • Shure VP82
    • Shure VP89S
    • Schoeps CMIT 5U
• InVision INV-HG mkIII Microphone Suspension - Lyre Shockmount The Rycote InVision INV-HG mkIII Microphone Suspension addresses the demand for a heavy-duty shockmount to secure shotgun microphones. The INV-HG mkIII will minimalize handling noise, rumble, and vibration in all speech-capturing applications.

  The InVision Lyre cradle accommodates most microphones measuring 19 to 34mm in diameter, like the Sennheiser MKH416 or MKH60. The cradle stabilizes even heavy microphones and allows the use of windscreens without sagging. A heavy duty swivel with a star knob fastens your mic tightly in place. The Lyre cradle rests on a miniature bar with a 3/8" threaded base and includes a 5/8" adapter.

  The INV-HG mkIII base features an integrated cable clamp for securing excess cable and minimizing noise. The unique Lyre suspension and cable clamp are engineered with Hytrel for a virtually indestructible design that maximizes shock and noise absorbtion.
  Large Lyre Suspension for Boom Operation
  • The Patented Rycote Lyre suspension cradle measures 70mm high and 40mm wide to accommodate heavier microphones. This is ideal for static stand mounting as well as boom placement.
  19 to 34mm Mounting Cradle
  • The cradle included with this system accommodates microphone diameters measuring between 19 to 34mm. The interior is treated with a soft-grip surface for a perfect, non-slip fitting.
  Hytrel Construction
  • The unique Lyre suspension is engineered with Hytrel for a virtually indestructible design that maximizes shock and noise absorbtion.
  Integrated 3/8" Threaded Base with 5/8" Stand Adapter
  • A 3/8" threaded base and a 5/8" threaded stand adapter is featured at the base for microphone boom pole and stand mounting.

• W 140B Foam Windscreen for Schoeps CMIT5U and MiniCMIT Shotgun Microphones (Blue)

• SG20 Microphone Adapter Stand Clamp

• Polished Wood Case

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• 3/8" to 5/8" Microphone Stand Adapter

• 1-Year Limited Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CMIT 5U Shotgun Microphone (Blue)

  Sound Field	Mono
  Operating Principle	Line Gradient
  Transducer	Condenser
  Tube	No
  Polar Pattern	Supercardioid
  Frequency Range	40 Hz to 20 kHz
  Equivalent Noise Level	14 dB A-Weighted 24 dB CCIR
  Maximum SPL	132 dB SPL
  Pad	None
  Impedance	50 Ohms
  Load Impedance	600 Ohms
  Sensitivity	17 mV/Pa
  Low-Cut Filter	18 dB/Octave @ 80 Hz 6 dB/Octave @ 300 Hz

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	4.4 mA
  Operating Voltage	48 V ± 4 V
  Length	9.88" / 251 mm
  Diameter	0.83" / 21 mm
  Weight	3.14 oz / 89 g

  Box Dimensions (LxWxH)	12.9 x 6.2 x 2.2"

• 15cm Super-Softie Wind Shield for Shotgun Mics

  Compatible Mic Diameter	0.748 to 0.87" / 19 to 22 mm
  Inner Depth	5" / 12.7 cm
  Outer Diameter	2.8 to 3.9" / 70 to 100 mm
  Length	8.3" / 210 mm

  Box Dimensions (LxWxH)	11.181 x 4.488 x 4.409"

• InVision INV-HG mkIII Microphone Suspension - Lyre Shockmount

  Threaded Mount	3/8" with 5/8" adapter
  Diameter	Mic Cradle: 0.74 to 1.3" (19 to 34 mm)
  Dimensions (W x H)	2.75 x 1.57" (70 x 40 mm)

  Box Dimensions (LxWxH)	5.2 x 3.2 x 3.1"
