User Manual for Schoeps CMIT WS4 SET - CMIT5U Shotgun Microphone Set for Boompole Mounting Click to enlarge the picture
Contents of the user manual for the Schoeps CMIT WS4 SET - CMIT5U
- Product category: Shotgun Microphones Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Shotgun Microphones
 |
User manual for the Schoeps CMIT WS4 SET - CMIT5U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|

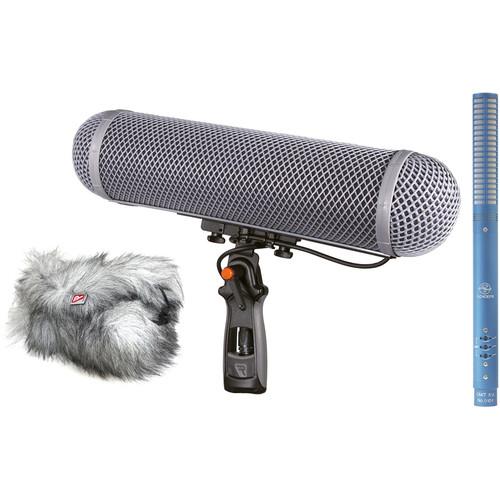

Product description The Schoeps CMIT WS4 Set shotgun microphone package eliminates the guesswork of accessorizing the Schoeps CMIT5U shotgun microphone for boompole mounting. The package includes the Schoeps CMIT5U shotgun microphone, Rycote full windscreen kit 4, Rycote Connbox 1, W140 foam windscreen and SG20 stand clamp.The CMIT5U is designed for professional film, video and music recording applications, capturing both dialog and instruments with great detail and accuracy. The microphone features a directional pattern with low-coloration at the off-axis sections of the capsule. Low and high frequencies are captured at a wider pick up area than that of mid-range frequencies. The result enables audio engineers to cue the boom and keep actors "on mike" with more precision.The microphone provides a series of frequency contouring switches. The high-frequency emphasis switch enhances vocal intelligibility and compensates for high-frequency loss caused by windscreens. A steep low-cut filter switch reduces wind and handling noise while the gentle low-frequency roll-off compensates for noise caused by proximity effect. LED indicators provide a reading of settings in low-light and the settings are retained after power down. - Exceptional Rejection of Off-Axis Audio
- Low-coloration of off-axis audio results in a narrow pick-up pattern. Mid-range frequencies are captured at a more generous area for more accurate capturing of dialog.
- Frequency Contour Switches
- Three frequency contour switches provide a high-frequency rise and enhanced vocal intelligibility as well as noise suppression from wind, handling and proximity effect.
- Versatile Sonic Characteristics
- The wide frequency response and sensitivity response characteristics enable the microphone to accurately capture dialog and instruments.

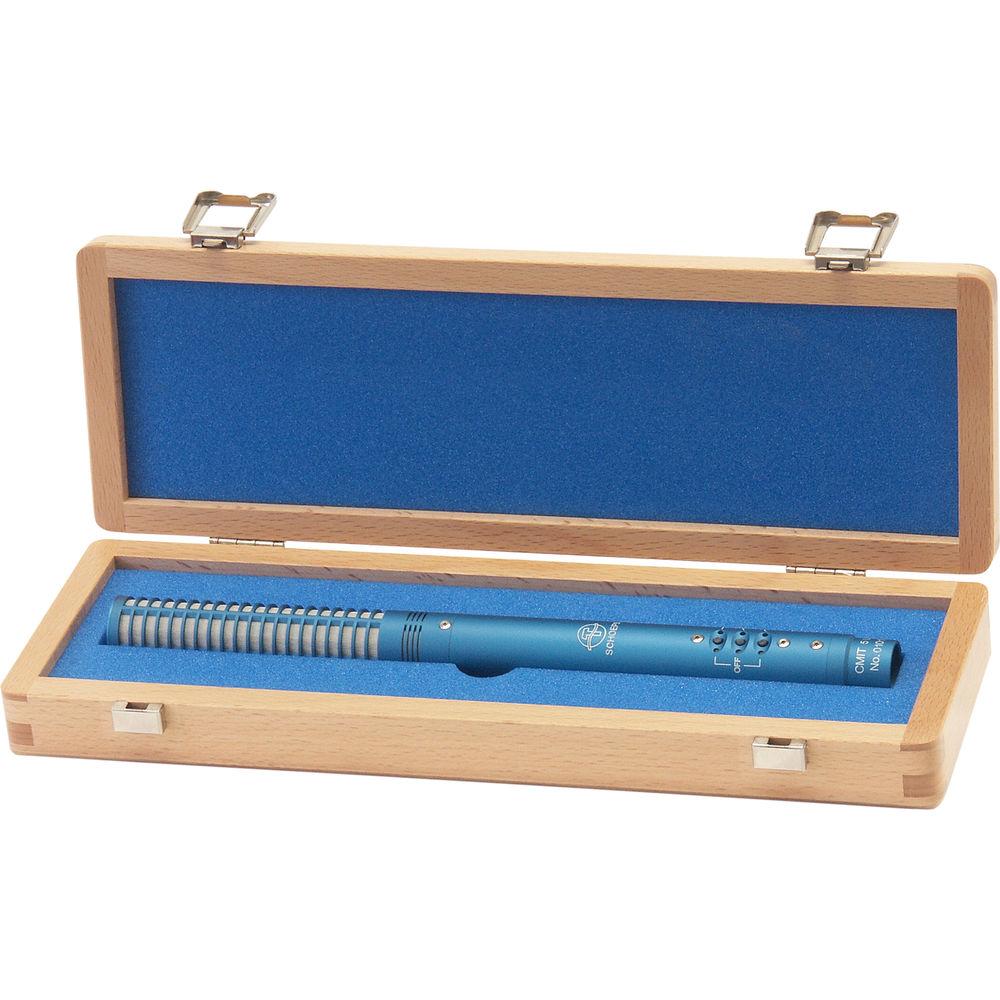

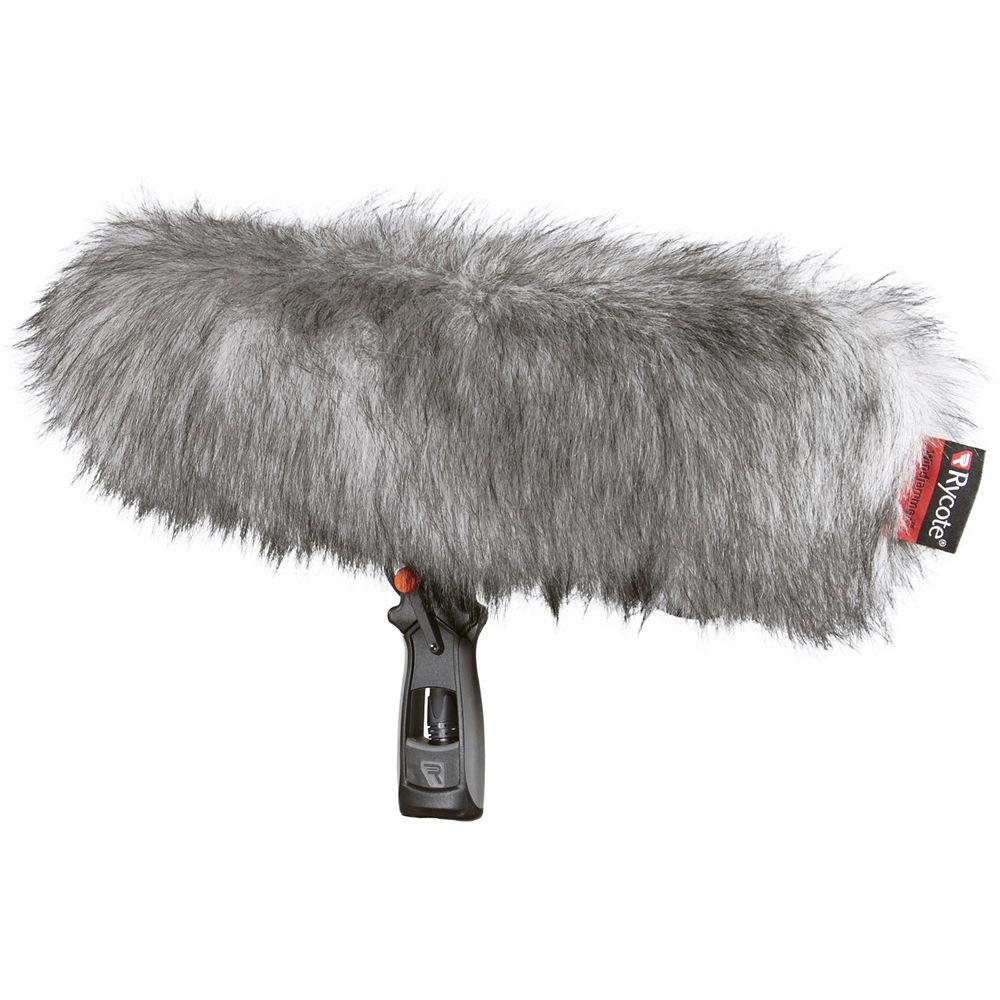

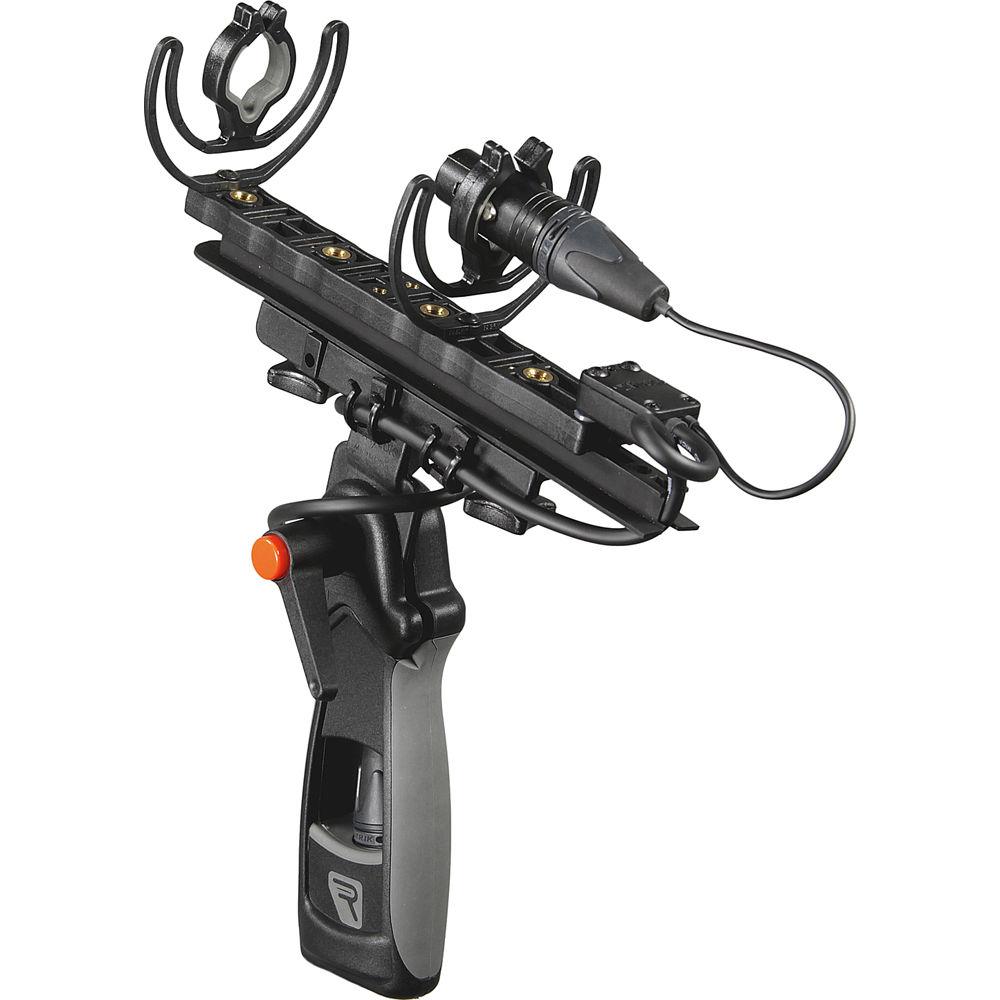

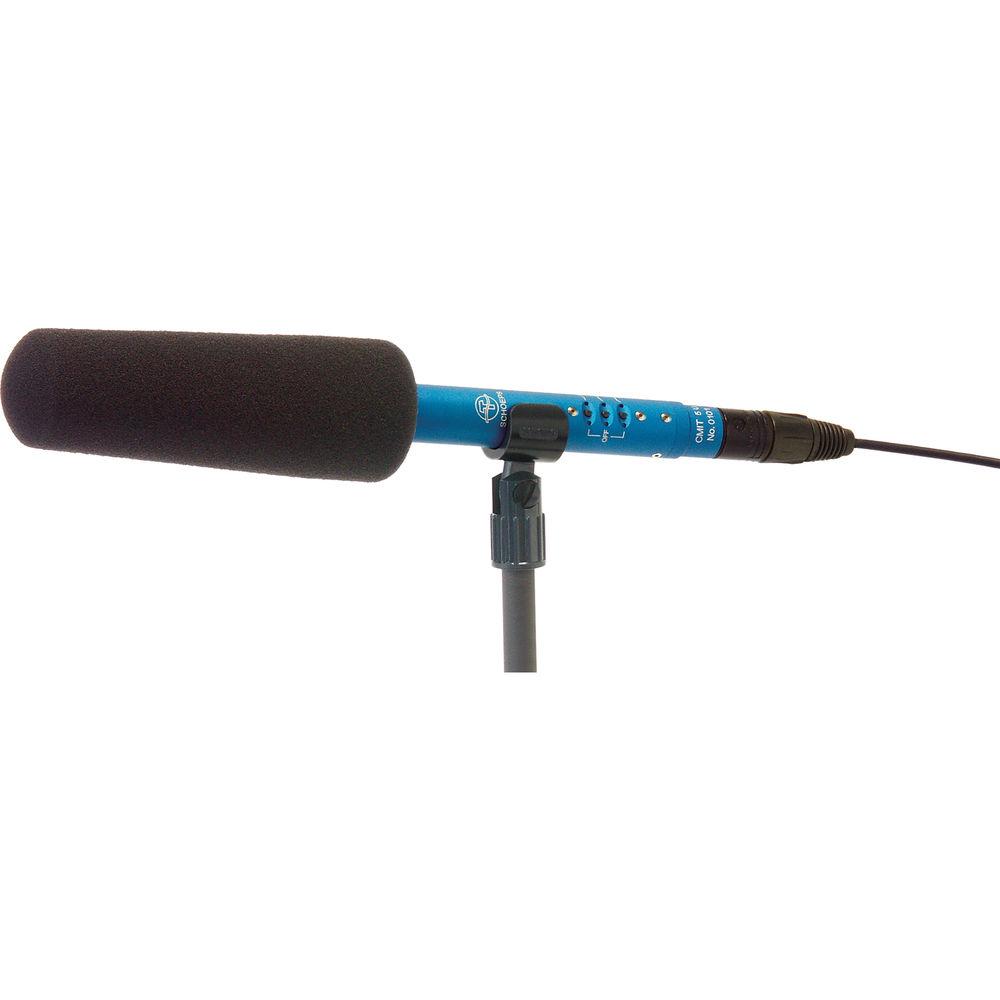

In the Box Schoeps CMIT WS4 SET - CMIT5U Shotgun Microphone Set for Boompole Mounting Rycote Windshield Kit 4 Rycote Connbox 1 Polished Wood Carrying Case SG20 Swivel Joint W140 Foam Windscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps CMIT WS4 SET - CMIT5U Shotgun Microphone Set for Boompole Mounting in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps CMIT 5 Specs | Transducer | Condenser | | Polar Pattern | Supercardioid / Lobe-Shaped | | Frequency Response | 40Hz - 20kHz | | Dynamic Range (Typical) | Not Specified by Manufacturer | | Signal-to-Noise Ratio | Equivalent noise level (filters off)
14dB-A, 24dB CCIR | | Maximum Input Sound Level | 132dB SPL @ 0.5% THD | | Power Requirements | 48V Phantom | | Output Impedance | 50 Ohms | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | 80Hz with 18dB/oct
300Hz with 6dB/oct
5dB lift at 10kHz (shelving) | | Dimensions | 9.88 x .827" (251 x 21mm) (Length x Diameter) | | Weight | 3.13 oz (89g) | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 26.6 x 14.75 x 6.0" |
