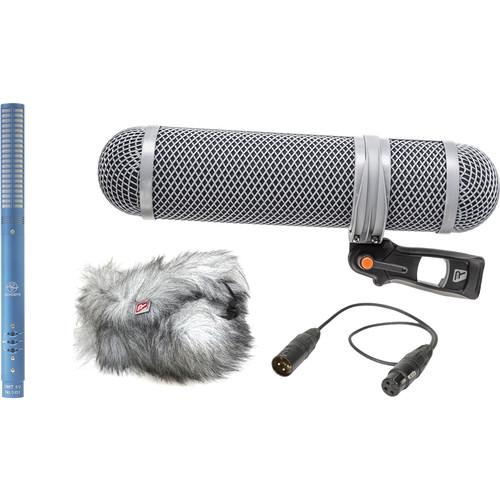

Product description The CMIT5U Shotgun Microphone Kit from Schoeps includes a blue CMIT5U Shotgun Microphone and a Rycote Super-Shield Kit for Shotgun Microphones. The CMIT5U is suitable both for music and speech; its directionality increases smoothly with higher frequencies and sound level decreases softly yet steadily for off-axis sounds. The Super-Shield is a synthetic fur cover used to combat extreme wind noises without substantial high-frequency loss. A wooden case and a foam windscreen are also included. - CMIT 5U Shotgun Microphone (Blue) The blue Schoeps CMIT 5U is a short, lightweight shotgun condenser microphone designed to deliver accurate close and distant capture of dialog and musical instruments for boom operators, audio engineers, and musicians in film, television, and video production as well as music recording applications. Its supercardioid/lobe-shaped polar pattern yields precise directionality, high immunity to wind noise, and low coloration at the off-axis sections of the capsule. Multiple filter settings allow you to tailor the 40 Hz to 20 kHz frequency response to suit different environments and scenarios. A 40 Hz roll-off is active without any filter selection; the switches provide low-cut filters at 80 Hz or 300 Hz for management of proximity effect and handling noise, while a selectable high-frequency boost at 10 kHz enables increased vocal clarity and compensation for high-frequency loss caused by windscreens. LED indicators provide a reading of settings in low light and the settings are retained after power down. No batteries are required as the CMIT 5U is operated via 48V phantom power. It includes a windscreen, mic clip, and wood case.
- Enhanced Rejection of Off-Axis Sound
- Low-coloration and steady attenuation of off-axis sound results in a narrow pick-up pattern and balanced sonic character
- High Directionality
- The supercardioid/lobe-shaped polar pattern offers directionality that increases smoothly with higher frequencies
- Switchable Filters
- Select one of three filter settings for a high-frequency rise or reduced low frequencies
- Versatile Frequency Selections
- Choose between a 5 dB shelving boost at 10 kHz, a 6 dB/octave roll-off at 300 Hz, an 18 dB/octave roll-off at 80 Hz, or a 6 dB/octave roll-off at 40 Hz (default mode)
- Neutral Sonic Characteristics
- The wide frequency response and high maximum SPL enable the microphone to accurately capture dialog and instruments
- Super-Shield Kit for Shotgun Mics (Medium) The medium Super-Shield Kit for Shotgun Mics from Rycote is a complete windshield and shock mounting system for shotgun microphones 20-25cm in length. The kit contains the Super-Shield Suspension which provides your microphone isolation from shocks and vibrations, the Super-Shield Windshield which provides wind-noise reduction with minimal high-frequency loss, and the Windjammer, a high-quality synthetic fur cover which provides protection against extreme wind noise.
The Super-Shield Suspension features patented Lyre technology, which provides your microphone isolation from shocks and vibrations without the use of rubbers or elastic. The chassis fits microphones 19mm (3/4") to 25mm (1") in diameter, using two snap-in, pinch-release Lyre suspensions that can be used in any of six positions to achieve the optimal balance and fit. The suspension comes with an 18" (450mm) high flexibility microphone cable.
Made up of two lightweight, durable baskets made from flexible grey plastic netting with a screening material attached, the Super-Shield Windshield connects to the Super-Shield Suspension. The windshield completely surrounds and creates a still volume of air around the microphone, which is designed to provide wind-noise reduction, with minimal high-frequency loss.
The Super-Shield Windjammer is a synthetic fur cover which provides another layer of protection to be used to combat extreme wind noise. Like the Super-Shield Windshield, it is designed to protect from wind without substantial high-frequency loss. - Fits these and similar sized mics:
-
- Audio-Technica AT 4073a (BP4073)
- DPA 4017
- Neumann KMR 81i
- Neumann KMR-81D
- RODE NTG-1
- RODE NTG-3
- RODE NTG4
- Sanken CS 2
- Schoeps CMIT 5U
- Sennheiser MKH 416
- Shure VP82
- Shure VP89S
- Sony ECM 670
- Sony ECM 678
In the Box Bundle Items CMIT 5U Shotgun Microphone (Blue) atzdtyyvuvsceecyffwxufwxtczfvfevw - W 140B Foam Windscreen for Schoeps CMIT5U and MiniCMIT Shotgun Microphones (Blue)
- SG20 Microphone Adapter Stand Clamp
Super-Shield Kit for Shotgun Mics (Medium) User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps CMIT5U Shotgun Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CMIT 5U Shotgun Microphone (Blue)
| | | Sound Field | Mono | | Operating Principle | Line Gradient | | Transducer | Condenser | | Tube | No | | Polar Pattern | Supercardioid | | Frequency Range | 40 Hz to 20 kHz | | Equivalent Noise Level | 14 dB A-Weighted
24 dB CCIR | | Maximum SPL | 132 dB SPL | | Pad | None | | Impedance | 50 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 17 mV/Pa | | Low-Cut Filter | 18 dB/Octave @ 80 Hz
6 dB/Octave @ 300 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.4 mA | | Operating Voltage | 48 V ± 4 V | | Length | 9.88" / 251 mm | | Diameter | 0.83" / 21 mm | | Weight | 3.14 oz / 89 g | | | | Box Dimensions (LxWxH) | 12.9 x 6.2 x 2.2" | - Super-Shield Kit for Shotgun Mics (Medium)
| Compatible Mic Diameter | 0.748 to 0.98" / 19 to 25 mm | | Outer Diameter | 3.9" / 100 mm | | Length | 15.75" / 400 mm | | Weight | 23.35 oz / 662 g | | | | Box Dimensions (LxWxH) | 19.1 x 8.3 x 4.5" |
