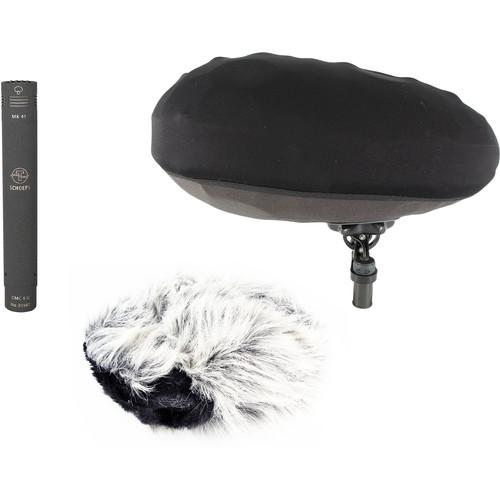

User Manual for Schoeps Colette CMC 6U Microphone Amp, MK 41 Supercardioid Condenser Capsule, and Windshield Set Click to enlarge the picture
Contents of the user manual for the Schoeps Colette CMC 6U Microphone Amp,
- Product category: Small Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Small Diaphragm Condenser
|
User manual for the Schoeps Colette CMC 6U Microphone Amp, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The Schoeps Colette CMC 6U Microphone Amp, MK 41 Supercardioid Condenser Capsule, and Windshield Set is a Colette Series modular mono supercardioid condenser microphone kit with a windshield set designed for mono recording of dialog and instruments indoors or outdoors in windy conditions. It includes a Schoeps CMC 6U microphone amplifier, MK 41 supercardioid condenser capsule, basket-type windscreen set, and fur cover.
The microphone features a transformerless Class-A output stage and supports 12V or 48V phantom power. The included PIANI-1 windshield set features a polycarbonate shell and a suspension module to cradle the microphone and eliminate handling noise. Install the supplied fur cover over the protective cage for enhanced immunity to wind noise without compromising acoustic transparency.The PIANI-1's two-axis swivel allows flexible positioning. Audio connectivity is simplified via the integrated XLR extension. - CMC6-U 12-48 Volt Phantom Power Supply The Schoeps CMC6-U is a balanced output stage and +12 to +48V phantom power supply for the Schoeps Colette series modular capsules. The transformer-less output stage ensures low-noise and pristine audio reproduction throughout. The CMC6-U is terminated with a standard balanced 3-pin XLR connection for use with standard microphone inputs and preamplifiers.
- MK 41 Supercardioid Condenser Microphone Capsule (Matte Gray) The matte gray Schoeps MK 41 is a supercardioid condenser microphone capsule designed to deliver minimal coloration and accurate capture of speech and music for sound recordists and audio engineers in film, television, and video production and studio recording sessions. The supercardioid polar pattern offers enhanced attenuation of off-axis SPL and consistent directionality throughout its 40 Hz to 20 kHz frequency range, which naturally rolls off sub-bass frequencies. The MK 41 is compatible with Schoeps Colette microphone amplifiers and requires no tools to install.
- Designed for use with Schoeps Colette microphone amplifiers such as the CMC 6 U, CMC 5 Vintage U, CMR, and CMBI
- Ideal for music and speech
- Supercardioid polar pattern with highly consistent directionality throughout its frequency range
- High directivity comparable to that of a short shotgun microphone up through midrange frequencies
- Off-axis sound is attenuated even more than with a cardioid polar pattern
- Decreased susceptibility to acoustic feedback
In the Box Bundle Items CMC6-U 12-48 Volt Phantom Power Supply fqzxweruesyqtvys MK 41 Supercardioid Condenser Microphone Capsule (Matte Gray)
Also Includes - Basket-Style Windshield Set
Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps Colette CMC 6U Microphone Amp, MK 41 Supercardioid Condenser Capsule, and Windshield Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CMC6-U 12-48 Volt Phantom Power Supply
| | | Box Dimensions (LxWxH) | 7.5 x 4.4 x 2.2" | - MK 41 Supercardioid Condenser Microphone Capsule (Matte Gray)
| Polar Pattern | Supercardioid | | Frequency Response | 40 Hz to 20 kHz | | Sensitivity | 13 mV/Pa | | Equivalent Noise Level | A-Weighted: 16 dBA
CCIR: 24 dB | | Signal to Noise Ratio | 78 dBA (A-weighted) | | Maximum SPL for 0.5% THD | 132 dB | | Length | 0.9" / 22 mm | | Diameter | 0.8" / 20 mm | | Weight | 0.6 oz / 17 g | | | | Box Dimensions (LxWxH) | 6.7 x 4.4 x 1.45" |
