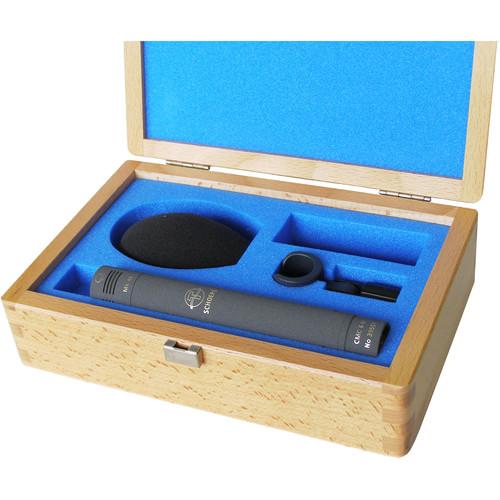

Schoeps Colette CMC 6U Microphone Amp,

User Manual for Schoeps Colette CMC 6U Microphone Amp, MK 41 Supercardioid Condenser Capsule & Low-Cut Filter

• Product category: Small Diaphragm Condenser Schoeps
• Brand: Schoeps
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Schoeps Small Diaphragm Condenser

Product description

• CMC6-U 12-48 Volt Phantom Power Supply The Schoeps CMC6-U is a balanced output stage and +12 to +48V phantom power supply for the Schoeps Colette series modular capsules. The transformer-less output stage ensures low-noise and pristine audio reproduction throughout. The CMC6-U is terminated with a standard balanced 3-pin XLR connection for use with standard microphone inputs and preamplifiers.
• MK 41 Supercardioid Condenser Microphone Capsule (Matte Gray) The matte gray Schoeps MK 41 is a supercardioid condenser microphone capsule designed to deliver minimal coloration and accurate capture of speech and music for sound recordists and audio engineers in film, television, and video production and studio recording sessions. The supercardioid polar pattern offers enhanced attenuation of off-axis SPL and consistent directionality throughout its 40 Hz to 20 kHz frequency range, which naturally rolls off sub-bass frequencies. The MK 41 is compatible with Schoeps Colette microphone amplifiers and requires no tools to install.
  • Designed for use with Schoeps Colette microphone amplifiers such as the CMC 6 U, CMC 5 Vintage U, CMR, and CMBI
  • Ideal for music and speech
  • Supercardioid polar pattern with highly consistent directionality throughout its frequency range
  • High directivity comparable to that of a short shotgun microphone up through midrange frequencies
  • Off-axis sound is attenuated even more than with a cardioid polar pattern
  • Decreased susceptibility to acoustic feedback
• CUT 60 Low-Cut Filter for Colette Series Microphones (Gray) The gray Schoeps CUT 60 for Colette Series Microphones provides a sharp 24 dB/oct low-cut filter at 60 Hz, which helps cut down on unwanted low frequency noise caused by wind, the boom, or a cable. In particular, pressure-gradient transducers (directional microphones) produce high infrasonic signal levels when exposed to wind. This can saturate an input transformer or an amplifier stage, and can result in loud, unwanted pops and rumble in your audio. The CUT 60 filters out frequencies that are 60 Hz and below, helping to prevent your audio from being marred by these disturbances.
  • • Recommended for use with the MK41 capsule on a boom
    • Can be screwed between MK capsules and CMC amplifier
    • Effective suppression of low-frequency wind noise and mechanical noise
    • Steep filter (24 dB/oct)
    • The frequency range that most speech occurs in remains unaffected
• SG20 Microphone Adapter Stand Clamp The Sanken SG20 Microphone Stand Adapter is designed to stand-mount Sanken Microphones measuring 0.78" (20mm) in diameter. The SG20 features a swivel action for flexible positioning.
• Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray) This gray Solid Foam Teardrop Popscreen from Schoeps is an acoustic foam close-speech popscreen intended for use with Schoeps Colette Series microphones, but compatible with other microphone capsules as well. It provides sufficient protection at normal speaking distances for cardioids and other directional capsules, especially when speech capsules are used. With omnidirectional capsules, it may even be used outdoors in light wind. This popscreen has minimal effect on sound quality.
  • For moderate distances from the person speaking
  • Can also be used as a windscreen for pressure transducers
  • Negligible effect on sound quality

• SG20 Stand Adaptor

• Polished Wood Case

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• 1 Year Warranty

• Limited 2-Year Warranty

Also Includes

• Custom Polished Wood Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CMC6-U 12-48 Volt Phantom Power Supply

  Box Dimensions (LxWxH)	7.5 x 4.4 x 2.2"

• MK 41 Supercardioid Condenser Microphone Capsule (Matte Gray)

  Polar Pattern	Supercardioid
  Frequency Response	40 Hz to 20 kHz
  Sensitivity	13 mV/Pa
  Equivalent Noise Level	A-Weighted: 16 dBA CCIR: 24 dB
  Signal to Noise Ratio	78 dBA (A-weighted)
  Maximum SPL for 0.5% THD	132 dB
  Length	0.9" / 22 mm
  Diameter	0.8" / 20 mm
  Weight	0.6 oz / 17 g

  Box Dimensions (LxWxH)	6.7 x 4.4 x 1.45"

• CUT 60 Low-Cut Filter for Colette Series Microphones (Gray)

  Cut-Off Frequency	60 Hz, (-3 dB)
  Slope	24 dB/oct
  Diameter	0.8" / 20.0 mm
  Length	0.7" / 17.0 mm

  Box Dimensions (LxWxH)	7.3 x 4.0 x 0.2"

• SG20 Microphone Adapter Stand Clamp

  Box Dimensions (LxWxH)	2.0 x 1.0 x 0.5"

• Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray)

  Maximum Noise Attenuation	20 dBA in 11 mph / 18 km/h Wind
  Material	Foam
  Outer Diameter	1.77" / 45 mm
  Length	2.75" / 70 mm

  Box Dimensions (LxWxH)	6.0 x 4.0 x 1.3"
