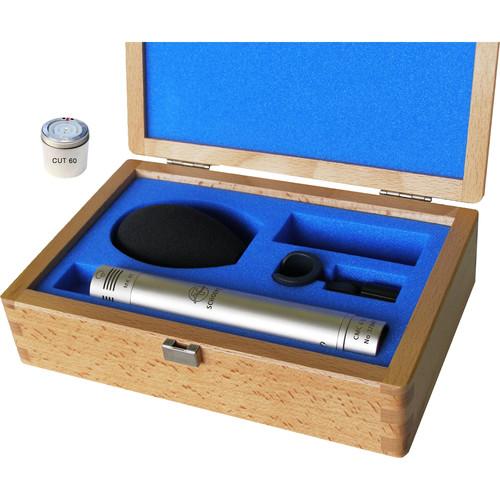

Schoeps Colette CMC 6U Microphone Amp,

User Manual for Schoeps Colette CMC 6U Microphone Amp, MK 41 Supercardioid Condenser Capsule & Low-Cut Filter

• Product category: Small Diaphragm Condenser Schoeps
• Brand: Schoeps
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Schoeps Small Diaphragm Condenser

Product description

• CMC 6UNI Microphone Amplifier The CMC 6UNI Microphone Amplifier from Schoeps is designed for standard 12 or 48V phantom powering. As the capsules of condenser microphones from Schoeps cannot be directly connected to microphone cables or inputs, a microphone amplifier is required in between. The amplifier’s circuitry recognizes the supply voltage and adjusts itself automatically.Its performance characteristics remain essentially the same with both 12 and 48V; mainly, the difference is that the current drawn at 12V is greater than at 48V. However, the 12V mode consumes less power and might be preferred for battery-powered recording.The microphone amplifier provides the electrostatic charge which the capsule requires in order to produce a signal. Since only a miniscule amount of current is contained in this signal, amplification of the current is required. To avoid interference to the signal on the way from the microphone to the input of the mixer or preamp, the signal is conveyed at low impedance and in a balanced form. The amplifier offers a symmetrical, transformer-less, direct-coupled Class A output stage with low impedance, low distortion, and high freedom from interference. Note: The 2 amplifiers in a stereo pair of microphones should be of the same type.
• MK 41 Supercardioid Condenser Microphone Capsule (Nickel) The nickel Schoeps MK 41 is a supercardioid condenser microphone capsule designed to deliver minimal coloration and accurate capture of speech and music for sound recordists and audio engineers in film, television, and video production and studio recording sessions. The supercardioid polar pattern offers enhanced attenuation of off-axis SPL and consistent directionality throughout its 40 Hz to 20 kHz frequency range, which naturally rolls off sub-bass frequencies. The MK 41 is compatible with Schoeps Colette microphone amplifiers and requires no tools to install.
  • Designed for use with Schoeps Colette microphone amplifiers such as the CMC 6 U, CMC 5 Vintage U, CMR, and CMBI
  • Ideal for music and speech
  • Supercardioid polar pattern with highly consistent directionality throughout its frequency range
  • High directivity comparable to that of a short shotgun microphone up through midrange frequencies
  • Off-axis sound is attenuated even more than with a cardioid polar pattern
  • Decreased susceptibility to acoustic feedback
• CUT 60 Low-Cut Filter for Colette Series Microphones (Nickel) The nickel Schoeps CUT 60 for Colette Series Microphones provides a sharp 24 dB/oct low-cut filter at 60 Hz, which helps cut down on unwanted low frequency noise caused by wind, the boom, or a cable. In particular, pressure-gradient transducers (directional microphones) produce high infrasonic signal levels when exposed to wind. This can saturate an input transformer or an amplifier stage, and can result in loud, unwanted pops and rumble in your audio. The CUT 60 filters out frequencies that are 60 Hz and below, helping to prevent your audio from being marred by these disturbances.
  • • Recommended for use with the MK41 capsule on a boom
    • Can be screwed between MK capsules and CMC amplifier
    • Effective suppression of low-frequency wind noise and mechanical noise
    • Steep filter (24 dB/oct)
    • The frequency range that most speech occurs in remains unaffected
• SG20 Microphone Adapter Stand Clamp The Sanken SG20 Microphone Stand Adapter is designed to stand-mount Sanken Microphones measuring 0.78" (20mm) in diameter. The SG20 features a swivel action for flexible positioning.
• Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray) This gray Solid Foam Teardrop Popscreen from Schoeps is an acoustic foam close-speech popscreen intended for use with Schoeps Colette Series microphones, but compatible with other microphone capsules as well. It provides sufficient protection at normal speaking distances for cardioids and other directional capsules, especially when speech capsules are used. With omnidirectional capsules, it may even be used outdoors in light wind. This popscreen has minimal effect on sound quality.
  • For moderate distances from the person speaking
  • Can also be used as a windscreen for pressure transducers
  • Negligible effect on sound quality

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• 1 Year Warranty

• Limited 2-Year Warranty

Also Includes

• Custom Polished Wood Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CMC 6UNI Microphone Amplifier

  Voltage	12 / 48 V
  Current Consumption	With 12 V: 8 mAWith 48 V: 4 mA
  Impedance	At 12 V: 25 ΩAt 48 V: 35 Ω
  Frequency	Low-Cut Frequency: 20 Hz
  Maximum Output Voltage	1 V
  Load Impedance	Minimum Recommended Load Impedance: 600 Ω
  Finish	Nickel
  Length	4.57" (11.61 cm)
  Diameter	0.79" (2.01 cm)
  Weight	2.12 oz (60.00 g)

• MK 41 Supercardioid Condenser Microphone Capsule (Nickel)

  Polar Pattern	Supercardioid
  Frequency Response	40 Hz to 20 kHz
  Sensitivity	13 mV/Pa
  Equivalent Noise Level	A-Weighted: 16 dBA CCIR: 24 dB
  Signal to Noise Ratio	78 dBA (A-weighted)
  Maximum SPL for 0.5% THD	132 dB
  Length	0.9" / 22 mm
  Diameter	0.8" / 20 mm
  Weight	0.6 oz / 17 g

• CUT 60 Low-Cut Filter for Colette Series Microphones (Nickel)

  Cut-Off Frequency	60 Hz, (-3 dB)
  Slope	24 dB/oct
  Diameter	0.8" / 20.0 mm
  Length	0.7" / 17.0 mm

• SG20 Microphone Adapter Stand Clamp

  Box Dimensions (LxWxH)	2.0 x 1.0 x 0.5"

• Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray)

  Maximum Noise Attenuation	20 dBA in 11 mph / 18 km/h Wind
  Material	Foam
  Outer Diameter	1.77" / 45 mm
  Length	2.75" / 70 mm

  Box Dimensions (LxWxH)	6.0 x 4.0 x 1.3"
