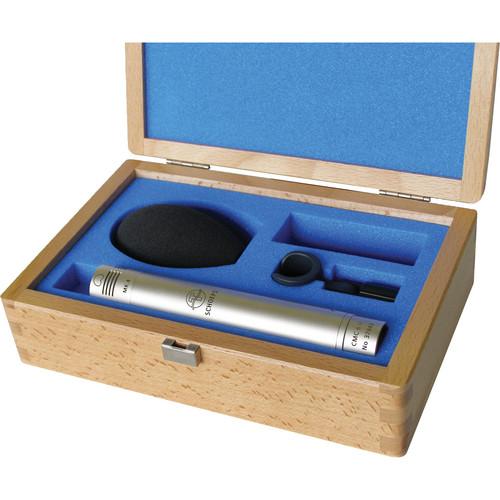

Schoeps Colette CMC 6U Microphone Amplifier

User Manual for Schoeps Colette CMC 6U Microphone Amplifier & MK 4 Cardioid Capsule

• Product category: Small Diaphragm Condenser Schoeps
• Brand: Schoeps
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Schoeps Small Diaphragm Condenser

Product description

• CMC 6UNI Microphone Amplifier The CMC 6UNI Microphone Amplifier from Schoeps is designed for standard 12 or 48V phantom powering. As the capsules of condenser microphones from Schoeps cannot be directly connected to microphone cables or inputs, a microphone amplifier is required in between. The amplifier’s circuitry recognizes the supply voltage and adjusts itself automatically.Its performance characteristics remain essentially the same with both 12 and 48V; mainly, the difference is that the current drawn at 12V is greater than at 48V. However, the 12V mode consumes less power and might be preferred for battery-powered recording.The microphone amplifier provides the electrostatic charge which the capsule requires in order to produce a signal. Since only a miniscule amount of current is contained in this signal, amplification of the current is required. To avoid interference to the signal on the way from the microphone to the input of the mixer or preamp, the signal is conveyed at low impedance and in a balanced form. The amplifier offers a symmetrical, transformer-less, direct-coupled Class A output stage with low impedance, low distortion, and high freedom from interference. Note: The 2 amplifiers in a stereo pair of microphones should be of the same type.
• MK 4 Microphone Capsule (Matched Pair, Nickel Finish) The nickel finish MK 4 Microphone Capsule from Schoeps comes as a matched pair, and offers high quality sound, flat frequency response, optimal rejection of rear-incident sound, and a directional pattern that remains constant throughout the audio frequency range. In the diffuse sound field, it shows only a mild rise of around 10 kHz; the sonic impression thus remains free of coloration even when sound is arriving from all sides at once. The sonic impression is also free of coloration whether sound is arriving at the front or at the sides of the microphone, as well as for diffuse sound (reverberation) in a room.

  The MK 4 Microphone Capsule is often preferred by opera singers and other trained vocalists. But its natural, transparent character makes it suitable for use in pop and rock applications, on stage or in the studio, where equalization is a part of the plan. This microphone, with clear, neutral sound quality, provides a suitable point of departure whenever special coloring is needed. Note: This capsule is delivered with a hand signed Certificate from the factory. Matching is of frequency response and sensitivity within exceptionally low tolerances.
  • Comes in a pack of 2
  • Classic cardioid
  • Suitable for a wide range of applications, either as a spot microphone or for stereo recording with coincident, ORTF, or M/S microphone arrangements
  • With consistent directionality throughout its frequency range
  • Often preferred for singing or speaking voices and most instruments
• Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray) This gray Solid Foam Teardrop Popscreen from Schoeps is an acoustic foam close-speech popscreen intended for use with Schoeps Colette Series microphones, but compatible with other microphone capsules as well. It provides sufficient protection at normal speaking distances for cardioids and other directional capsules, especially when speech capsules are used. With omnidirectional capsules, it may even be used outdoors in light wind. This popscreen has minimal effect on sound quality.
  • For moderate distances from the person speaking
  • Can also be used as a windscreen for pressure transducers
  • Negligible effect on sound quality
• SG20 Microphone Adapter Stand Clamp The Sanken SG20 Microphone Stand Adapter is designed to stand-mount Sanken Microphones measuring 0.78" (20mm) in diameter. The SG20 features a swivel action for flexible positioning.

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• 1 Year Warranty

Also Includes

• Wooden Storage Case
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CMC 6UNI Microphone Amplifier

  Voltage	12 / 48 V
  Current Consumption	With 12 V: 8 mAWith 48 V: 4 mA
  Impedance	At 12 V: 25 ΩAt 48 V: 35 Ω
  Frequency	Low-Cut Frequency: 20 Hz
  Maximum Output Voltage	1 V
  Load Impedance	Minimum Recommended Load Impedance: 600 Ω
  Finish	Nickel
  Length	4.57" (11.61 cm)
  Diameter	0.79" (2.01 cm)
  Weight	2.12 oz (60.00 g)

• MK 4 Microphone Capsule (Matched Pair, Nickel Finish)

  Frequency Range	40 Hz to 20 kHz
  Sensitivity	3 mV/Pa
  Equivalent Noise Level	15 dB-A (A-weighted) 24 dB (CCIR)
  Signal-to-Noise Ratio	79 dB-A (A-weighted)
  Maximum Sound Pressure Level (SPL)	132 dB-SPL at 0.5% THD
  Dimensions (Ø x L)	0.70 x 0.87" (20.00 x 22.00 mm)
  Weight	0.6 oz (17.0 g)

• Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray)

  Maximum Noise Attenuation	20 dBA in 11 mph / 18 km/h Wind
  Material	Foam
  Outer Diameter	1.77" / 45 mm
  Length	2.75" / 70 mm

  Box Dimensions (LxWxH)	6.0 x 4.0 x 1.3"

• SG20 Microphone Adapter Stand Clamp

  Box Dimensions (LxWxH)	2.0 x 1.0 x 0.5"
