User Manual for Schoeps Colette Series Open-Cardioid Stereo Microphone Set Click to enlarge the picture
Contents of the user manual for the Schoeps Colette Series Open-Cardioid Stereo Microphone
- Product category: Small Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Small Diaphragm Condenser
|
User manual for the Schoeps Colette Series Open-Cardioid Stereo Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|

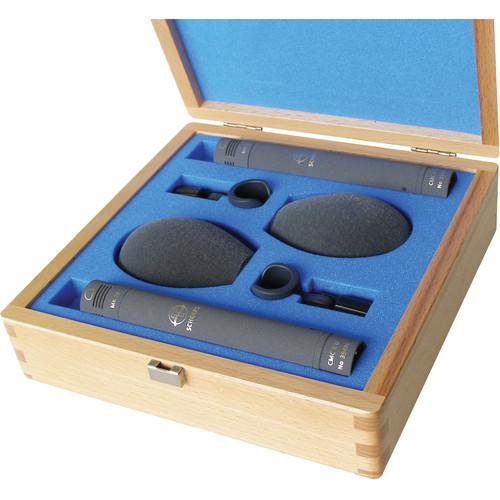

Product description This Schoeps Colette Series Open-Cardioid Stereo Microphone Set is comprised of 2 CMC6 amplifiers, 2 stereo matched MK22 open-cardioid capsules, a pair of SG20 microphone mounts, windscreens, and a foam-lined wooden storage case.The Colette Series are modular microphones that are very popular among field audio engineers. The analog microphone systems are based on the modular CMC6 preamplifier and interchangeable MK series capsules. The capsules provide wide, linear frequency response curves and superior audio quality.This set includes the MK22 open-cardioid capsules. The open-cardioid polar pattern is designed to combine the the directionality of the MK 4 cardioid capsule with the warmth of the MK21 wide-cardioid. The MK22s are regarded as ideal "spot-microphones", and some of the many applications include soloist instrument capturing, vocal capturing, speech and narration, and more. - Matched Stereo Pair
- This stereo package features a pair of CMC6 preamplifiers and MK22 open cardioid capsules. The pair are matched in frequency and sensitivity response to ensure accurate stereo capturing in any application.
- Modular Design
- The CMC6 is designed to be used with any of the Schoeps Colette series modular capsules. The capsules provide various polar patterns and frequency response curves.
- Wide Frequency Response
- The CMC6 modular power supply features transformerless Class-A electronics that result in a linear 50 Hz to 20 kHz frequency response.
- Superior Sound Characteristics
- The superior quality of the capsule and preamplifier result in detailed, pristine audio quality with very low noise floor.
MK22 Open-Cardioid Capsule Features - New kind of directional pattern: "Open Cardioid"
- Optimal combination of classic cardioid directionality (MK4) with the sonic character of the wide cardioid (MK21)
- Directional pattern largely constant throughout the frequency range
- Often preferred for spot miking and as a soloist's microphone
In the Box Schoeps Colette Series Open-Cardioid Stereo Microphone Set 2 x CMC6 Amplifiers 2 x MK22 Open Cardioid Capsules 2 x SG20 Microphone Mounts 2 x Acoustically Treated Windscreens Wooden Storage Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps Colette Series Open-Cardioid Stereo Microphone Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps OPEN CARDIOID ST Specs | Transducer | Condenser | | Polar Pattern | Open Cardioid | | Frequency Response | 40Hz to 20kHz | | Dynamic Range (Typical) | Not Specified by Manufacturer | | Signal-to-Noise Ratio | 80 dB-A | | Maximum Input Sound Level | 130dB | | Power Requirements | 12V - 48V Phantom Power | | Output Impedance | Minimum Load: 600 Ohms
(If a lower load impedance is used, the main effect will be to reduce the maximum output level of the microphone.) | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 4.57 x 0.78" (116 x 20mm) (Length x Diameter) | | Weight | 68g | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 8.4 x 7.8 x 2.5" |
