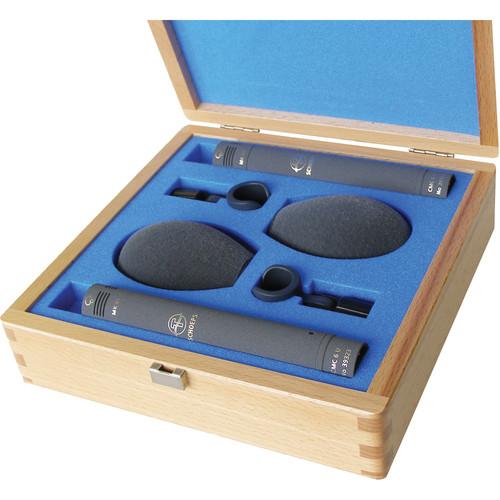

User Manual for Schoeps Colette Series Supercardioid Stereo Microphone Set Click to enlarge the picture
Contents of the user manual for the Schoeps Colette Series Supercardioid Stereo Microphone
- Product category: Small Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Small Diaphragm Condenser
|
User manual for the Schoeps Colette Series Supercardioid Stereo Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description This Schoeps Colette Series Supercardioid Stereo Microphone Set is comprised of 2 CMC6 amplifiers, 2 stereo matched MK41 supercardioid capsules, a pair of SG20 microphone mounts, windscreens and a foam-lined wooden storage case.The Colette Series are modular microphones that are very popular among field audio engineers. The analog microphone systems are based on the modular CMC6 preamplifier and interchangeable MK series capsules. The capsules provide wide, linear frequency response curves and superior audio quality.This set includes the MK41 supercardioid capsules. The supercardioid pattern is highly directional and minimizes off-axis signals, comparable to a shotgun microphone. The MK41's consistent directionality throughout its frequency range, makes it well suited for capturing speech, instruments and other signals in highly ambient environments. - Matched Stereo Pair
- This stereo package features a pair of CMC6 preamplifiers and MK41 supercardioid capsules. The pair are matched in frequency and sensitivity response to ensure accurate stereo capturing in any application.
- Modular Design
- The CMC6 is designed to be used with any of the Schoeps Colette series modular capsules. The capsules provide various polar patterns and frequency response curves.
- Wide Frequency Response
- The CMC6 modular power supply features transformerless Class-A electronics that result in a linear 50 Hz to 20 KHz frequency response.
- Superior Sound Characteristics
- The superior quality of the capsule and preamplifier result in detailed, pristine audio quality with very low noise floor.
MK41 Supercardioid Capsule Features - Supercardioid with highly consistent directionality throughout its frequency range
- High directivity, comparable to that of a short "shotgun" microphone up through midrange frequencies
- Often preferred for use in film sound recording and as a spot microphone in orchestras
In the Box Schoeps Colette Series Supercardioid Stereo Microphone Set 2 x CMC6 Amplifiers 2 x MK41 Supercardioid Capsules 2 x SG 20 Microphone Mounts 2 x Acoustically treated Windscreens Wooden Storage Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps Colette Series Supercardioid Stereo Microphone Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps SUPERCARDIOID ST Specs | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 40 Hz to 20 kHz | | Dynamic Range (Typical) | Not Specified by Manufacturer | | Signal-to-Noise Ratio | 79 dB-A | | Maximum Input Sound Level | 132 dB | | Power Requirements | 12V - 48V Phantom Power | | Output Impedance | Minimum Load: 600 Ohms
(If a lower load impedance is used, the main effect will be to reduce the maximum output level of the microphone.) | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions (L x D) | 4.57 x 0.78"/ 116 x 20 mm | | Weight | 2.5 oz / 68 g | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 9.2 x 8.3 x 2.9" |
