User Manual for Schoeps Colette Series Universal Omni S ST Stereo Microphone Set Click to enlarge the picture
Contents of the user manual for the Schoeps Colette Series Universal Omni S
- Product category: Small Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Small Diaphragm Condenser
|
User manual for the Schoeps Colette Series Universal Omni S contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|

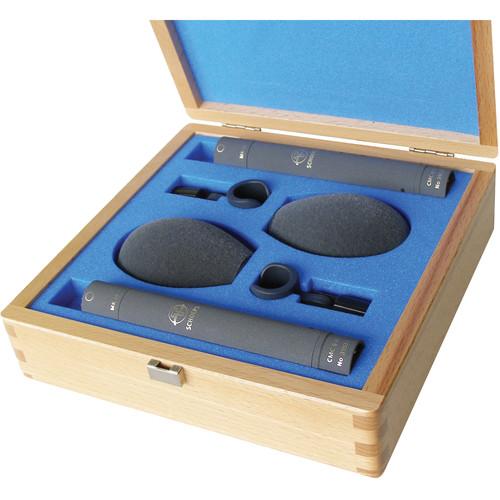

Product description This Schoeps Universal Omni S ST Modular Colette Microphone Stereo Set is comprised of two CMC 6U amplifiers, two matched MK 2S omnidirectional capsules, two B5 D hollow popscreens, a pair of SG 20 stand clamp adaptors, and a foam-lined wooden storage case.The Colette Series are modular microphones that are popular among field audio engineers and classical music recording engineers. These analog microphone systems are based on the modular CMC 6U preamplifier and interchangeable MK series capsules. The capsules provide wide, linear frequency response curves and superior audio quality.The MK 2S capsule features a slight high-frequency rise to compensate for losses at moderate recording distances. This all-purpose capsule is perfect for capturing low-frequency information and room sound when recording music and vocals. It is also recommended for outdoor recording if directivity is not required. - Matched Stereo Pair
-
- This stereo package features a pair of CMC 6U preamplifiers and MK 2 S omnidirectional capsules.
- To ensure accurate stereo capturing in any application, the amplifier bodies have sequential serial numbers and the capsules are factory-matched for frequency response and sensitivity.
- Modular Design
-
- The CMC 6U is designed to be used with any of the Schoeps Colette Series modular capsules. The capsules provide various polar patterns and frequency response curves.
MK 2S Omnidirectional Capsule Features -
- Omnidirectional pattern.
- Slight high-frequency rise to compensate for losses at moderate recording distances.
- Emphasizes frontal sound incidence, with only a slight roll-off of high frequencies off axis and in the reverberant sound field.
- Ideal for a wide range of recording applications.
- Often preferred for "spaced microphone" stereo pickup and "Decca Tree" arrangements.
Superior Sound Characteristics -
- The superior quality of the capsule and preamplifier result in detailed, pristine audio quality with exceptionally low noise floor.
- The CMC 6U modular power supply features transformerless Class-A electronics that result in a flat frequency response with low noise and distortion.
In the Box Schoeps Colette Series Universal Omni S ST Stereo Microphone Set 2 x CMC 6U Amplifiers 2 x MK 2S Omnidirectional Capsules 2 x SG 20 Stand Clamp Adaptors 2 x B5 D Hollow Popscreens Custom Wooden Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps Colette Series Universal Omni S ST Stereo Microphone Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps UNIVERSAL OMNI S ST Specs | | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20Hz to 20kHz | | Sensitivity | 12 mV/Pa | | Equivalent Noise Level | 12 dB-A, A-weighted
24 dB, CCIR | | Signal-to-Noise Ratio | 82 dB-A, A-weighted | | Maximum Sound Pressure Level (SPL) | 132 dB-SPL, at 0.5% THD | | Surface Finish | Matte gray | | Dimensions (Ø x L) | 0.78 x 0.86" / 20.00 x 22.00 mm | | Weight | 0.59 oz / 17.00 g | | | | Power Requirements | 12 to 48 V, phantom Power | | Current Consumption | 8 mA, at 12 V
4 mA, at 48 V | | Output Impedance | 25 Ohms, at 12 V
35 Ohms, at 48 V | | Low-Cut Frequency | 20 Hz | | Maximum Output Voltage | 1 V | | Minimum Load Impedance | 600 Ohms, recommended | | Surface Finish | Matte gray | | Dimensions (Ø x L) | 4.57 x 0.78" / 116.00 x 20.00 mm | | Weight | 2.11 oz / 60.00 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 8.3 x 7.8 x 2.5" |
