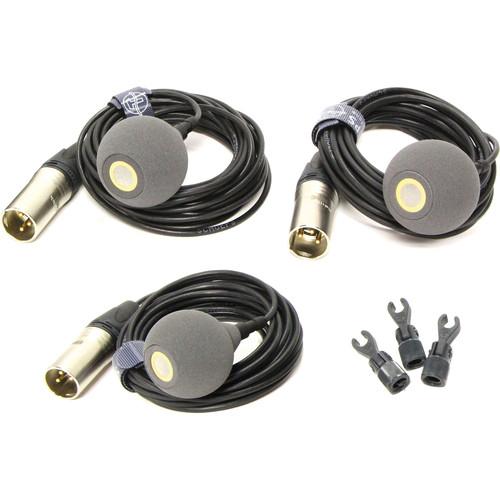

User Manual for Schoeps Decca Tree Set 2H Click to enlarge the picture
Contents of the user manual for the Schoeps Decca Tree Set 2H
- Product category: Stereo & Specialty Microphones Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Stereo & Specialty Microphones
|
User manual for the Schoeps Decca Tree Set 2H contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The Decca Tree Set 2H from Schoeps has all the components you need to set up a Decca Tree array. The set consists of three matched CCM 2H Lg Compact Microphones, three KA 40 Sphere Attachments, and a common wooden box for storage.The CCM 2H Lg is a small, light-weight microphone featuring an omnidirectional pattern. Its extended low frequency response and low noise make it well-suited for demanding applications. The sound inlet of the CCM 2H Lg is narrow causing a slight, purely acoustic response elevation above 6 kHz, which helps to preserve natural sound quality. This reduces the high frequency loss for diffuse sound, which helps preserve natural sound quality. The microphone is suitable for recording natural-sounding pickup of instruments and orchestra in spaces with well-balanced reverberance.The 40mm diameter KA 40 Sphere Attachment, when used with the CCM 2S Lg omnidirectional microphone, creates the illusion of closer placement so that greater miking distances can be used while maintaining good focus in the sound. This in turn improves the blend and balance when recording orchestras or choruses. - CCM 2H LG Compact Omnidrectional Condenser Microphone The CCM 2H LG Compact Omnidrectional Condenser Microphone from Schoeps boasts a omnidirectional polar pattern and has mild high-frequency emphasis above 6 kHz, and can be used for subjects a at a medium distance. It includes a removable 5m long cable with a Lemo to XLR-3M connector.
- True condenser - does not require electronic frequency response correction
- Balanced, low-impedance output via removable 5 meter cable - Lemo to XLR-3M connector
- The Lemo disconnect allows for use of special accessories - some similar to Active components of the Colette Series
- Boast flat frequency response
- Sound is extensively independent of directional pattern
- Run on both 48 V and 12 V phantom
- Can be used with very long cables (over 100 meters)
- Matte gray non-reflective surface as standard surface finish
- KA 40 Sphere Attachments (40mm) The 40mm KA 40 Sphere Attachments from Schoeps is designed for use with omnidirectional microphones. It can be used when capturing audio in various environments such as recording studios, live sound and more. It creates the illusion of closer microphone placement so that greater miking distances can be achieved. The KA 40 is designed to capture more detail especially for orchestras or choruses. The effect is partly due to an increase in directivity, but mainly to the increased midrange response. The low-frequency response remains undiminished. Sold as a single unit.
- Sphere attachment for omnidirectional microphone
- This sphere attachment is ideally suited for the Decca Tree
In the Box Bundle Items 3 x CCM 2H LG Compact Omnidrectional Condenser Microphone ftxrxfzdvcbtbbddtxyrruzwzxdbfusc - K 5 LU Cable for CCM Microphones
3 x KA 40 Sphere Attachments (40mm) - Limited 2-Year Warranty on Parts and Labor
Also Includes - Wooden Storage Box
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps Decca Tree Set 2H in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CCM 2H LG Compact Omnidrectional Condenser Microphone
| | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 83 dB A-Weighted | | Equivalent Noise Level | 11 dB A-Weighted | | Maximum SPL | 130 dB SPL RMS | | THD | 0.5% | | Impedance | 90 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 15 mV/Pa | | Low-Cut Filter | @ 20 Hz | | CMRR | 23 dB | | | | Output Connectors | 1 x 3-Pin XLR
1 x 3-Pin LEMO | | Cable Length | 16' / 4.9 m | | Operating Current Consumption | 4 mA | | Operating Voltage | 12 to 48 V
12 V
48 V | | Length | 2.28" / 58 mm | | Diameter | 0.79" / 20 mm | | Weight | 1.52 oz / 43 g | - KA 40 Sphere Attachments (40mm)
| Diameter | 1.5" (40.0 mm) | | Surface Finish | Matte gray | | | | Box Dimensions (LxWxH) | 3.2 x 2.1 x 2.0" |
