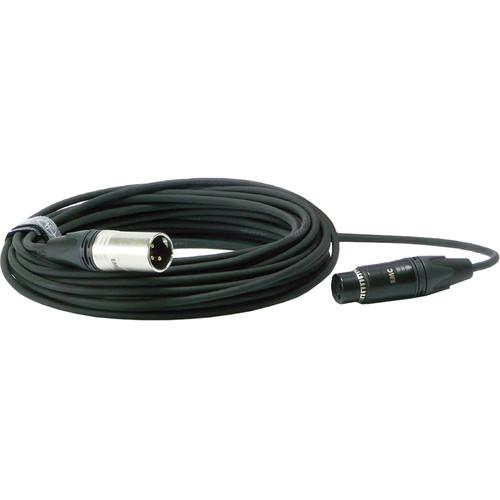

Product description HQ Microphone Cable (Mono, 5 m) offers particularly good immunity to electromagnetic interference.
What distinguishes the K EMC?
• There are several essential requirements for good cables in professional applications. The SCHOEPS K EMC meets these requirements in an ideal manner:
• It uses high-quality Neutrik XLR-3 "EMC"-type connectors. These have been specially developed to help prevent ground loops and combat "Pin 1" problems.
• Its star-quad construction is especially effective in resisting magnetic interference.
• The low capacitance and series resistance permit the use of very great lengths when needed.
• Its robust electrical screen is cross-braided for improved coverage, with a graphite-coated inner mantle; both features shield the inner conductors optimally from radio-frequency interference.
• It is only 4 mm in diameter, yet is very robust due to the multiple bundles of Kevlar fiber in its jacket.
• It has no tendency to twist or untwist once installed; if you suspend a microphone from this type of cable, the microphone's orientation will be preserved.
• It can be bent many thousands of times within a narrow radius if necessary, without breaking.
• It remains particularly flexible in the cold, due to its polyurethane outer jacket.
This single-channel microphone cable features a special RF-resistant Neutrik connectors at both ends. This connector uses a circular array of miniature capacitors to connect pin 1 to the connector housings, thus offering substantial protection from radio-frequency interference while also preventing ground loops. This approach completely settles the old question of whether to connect the cable shield to pin 1 at one or both ends of the cable.
For easy identification, the plug connector has a nickel finish while the socket connector is black. In the Box Schoeps HQ Microphone Cable (Mono, 5 m) Limited Lifetime Warranty urwwfbwxttywcezyrs Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps HQ Microphone Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps K EMC 5 U Specs | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 16.4' / 5 m | | Outer Diameter | 0.173" / 4.4 mm | | Shielding | 100% Braid | | Number of Conductors | 4 | | Jacket Type | Polyurethane | | Conductor DC Resistance | 0.0305 Ohms/ft (Up to 3281' / 1000 m) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 9.5 x 7.8 x 2.1" |
