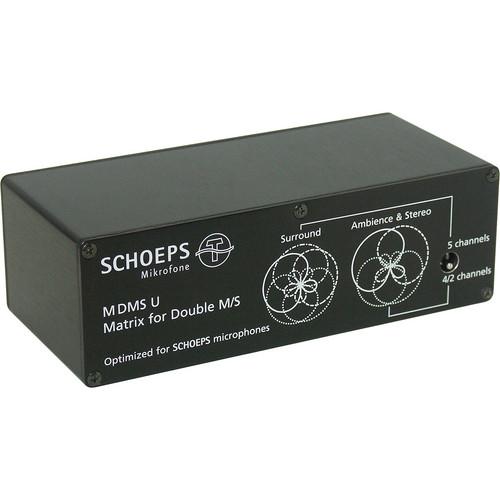

User Manual for Schoeps MDMS U Passive Matrix Box for Double M S Click to enlarge the picture
Contents of the user manual for the Schoeps MDMS U Passive Matrix Box
- Product category: Stereo XLR & Special Mic Cables Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Stereo XLR & Special Mic Cables
|
User manual for the Schoeps MDMS U Passive Matrix Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The Schoeps MDMS U Passive Matrix Box for Double M/S is a simple way to obtain "Double M/S" Surround. It is a small, sturdy box with high-quality transformers forming a passive decoder matrix. The microphone signals are converted directly into 5.0 L / R / C / LS / RS surround signals. A second, switchable mode supplies four signals with no center-channel output. The matrix parameters have been chosen so that the resulting signals correspond to an optimal arrangement while avoiding unwanted artifacts. - Decodes five channels from three microphone signals
- Powers the three microphones correctly when connected to five microphone inputs
- Settings have following characteristics: minimal overlap (crosstalk), optimal pickup balance in all directions, well-balanced 360° localization capability, optimal constancy of total levels across 360°, minimal pickup via the rear lobe (< -11dB)
In the Box Schoeps MDMS U Passive Matrix Box for Double M/S (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps MDMS U Passive Matrix Box for Double M S in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps MDMS U MATRIX Specs | Input | XLR-7F for front M microphone (cardioid or supercardioid), Side microphone, rear M microphone (cardioid or supercardioid) | | Output | 5 × XLR-3M for the surround signals L, R, C, LS, RS | | Powering Options | None; No current consumption | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 8.2 x 7.6 x 2.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
