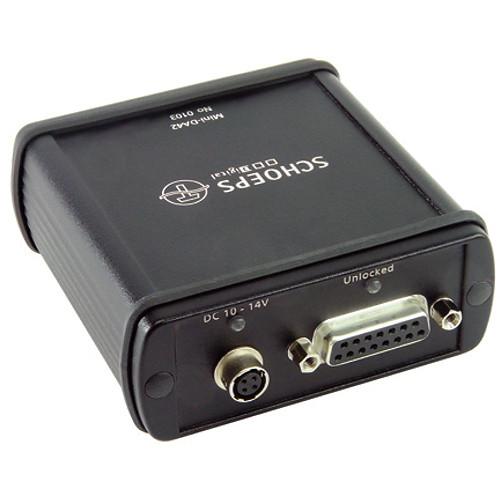

User Manual for Schoeps Mini-DA42 Digital Microphone Powering Box and D A Converter Click to enlarge the picture
Contents of the user manual for the Schoeps Mini-DA42 Digital Microphone Powering Box
- Product category: In-Line Mic Accessories Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps In-Line Mic Accessories
|
User manual for the Schoeps Mini-DA42 Digital Microphone Powering Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The Mini-DA42 Digital Microphone Powering Box and D/A Converter by Schoeps provides power for digital microphones and has been designed especially with the Schoeps SuperCMIT in mind. It converts digital output to analog signals for use with devices such as mixers and audio interfaces without digital inputs. - Provides power for digital microphones including the Schoeps SuperCMIT
- Converts digital output to analog output for devices without digital inputs
- Inputs and outputs are available via convenient Sub-D breakout cable
- Easy-access front panel connectors
In the Box Schoeps Mini-DA42 Digital Microphone Powering Box and D/A Converter AC Adapter Sub-D Breakout Cable Limited 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps Mini-DA42 Digital Microphone Powering Box and D A Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps MINI-DA42 Specs | Inputs | AES42
Mode 1 (XLR-3F, 110 Ohms, black label) | | Outputs | AES3 (XLR-3M, 110 Ohms, blue label)
2 × analog XLR-3M (yellow and red label), balanced, referring to ground
Maximum cable length: 300 m | | Indicators | Green LED for power
Red LED for "unlocked" (turns off when a digital microphone is connected and the circuitry of the Mini-DA42 locks on to that signal) | | Power | DC 12 - 18 V/200 - 500 mA, available through included AC adapter (type designation: VMS-DCW) for 100 - 240 V, 50 / 60 Hz with HIROSE plug
Operation is also possible with other AC adapter models or batteries / rechargeable batteries | | Sampling Rate | 192 kHz max | | Dynamic Range | Mini-DA42: 112 dB (A, RMS), >98dB (CCIR, q-peak) SuperCMIT with Mini-DA42: >107 dB (A, RMS), >96dB (CCIR, q-peak) | | Frequency Range | 2 Hz - 20 kHz (-1 dB) | | Audio THD + Noise | -95 dB @ 1 kHz | | Max. Output Level | 14.5 dBU @ 0 dBFS | | Current Consumption | 200 mA (SuperCMIT included) | | Dimensions | 3.3 x 3.3 x 1.3 (84 x 84 x 34mm) | | Weight | 6.1 oz (173 g) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.1 x 8.4 x 3.0" |
