Schoeps MiniCMIT CWS Set Miniature Shotgun

User Manual for Schoeps MiniCMIT CWS Set Miniature Shotgun Microphone and Cyclone Windshield

• Product category: Shotgun Microphones Schoeps
• Brand: Schoeps
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Schoeps Shotgun Microphones

Product description

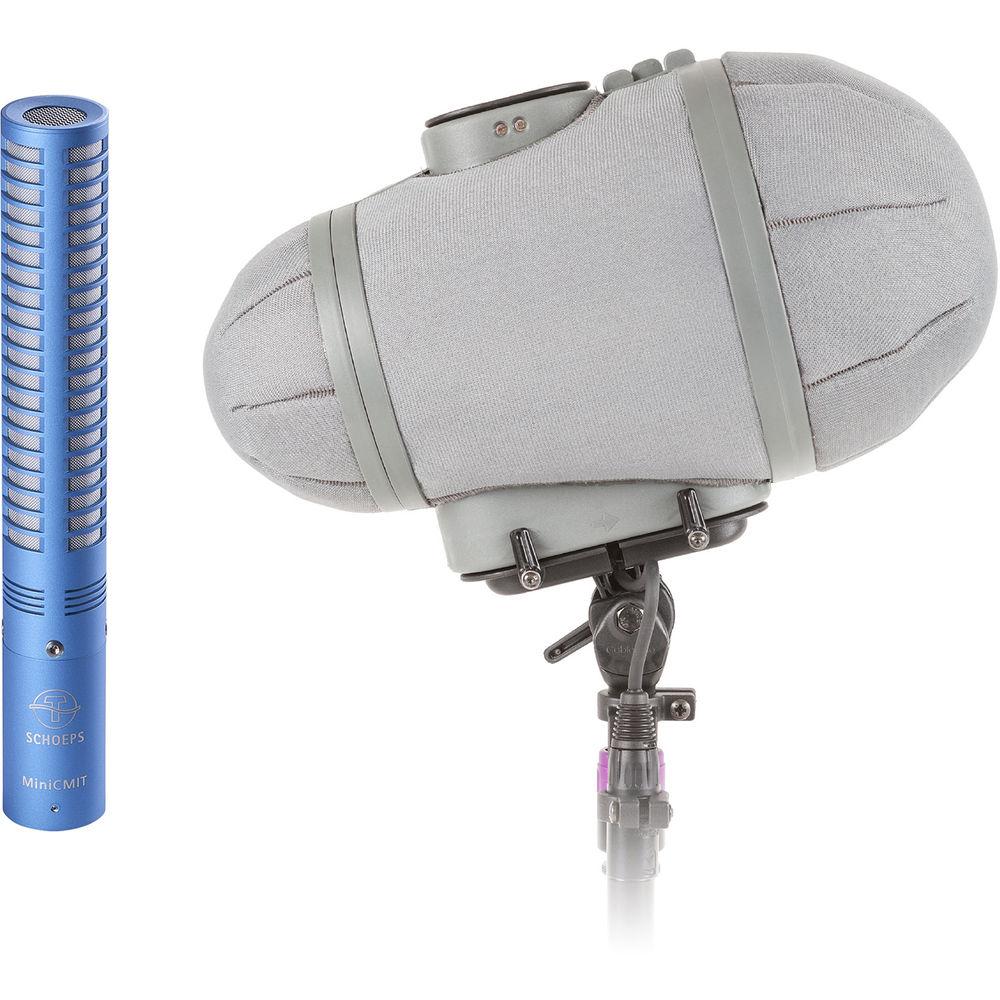

• MiniCMIT Miniature Shotgun Microphone (Blue) The blue Schoeps MiniCMIT is a miniature shotgun microphone designed to provide the characteristics of standard CMIT mic in a short and lightweight body. Delivering accurate close and distant capture of dialog and musical instruments, it is ideal for boom operators, audio engineers, and musicians in film, television, and video production as well as music recording applications. Its supercardioid/lobe-shaped polar pattern yields precise directionality, high immunity to wind noise, and low coloration at the off-axis sections of the capsule. An integrated RFI shield yields enhanced rejection of radio-frequency interference. The MiniCMIT features the same frequency response as the CMIT 5, allowing either microphone to be used without altering the sound. A fixed 24 dB/octave low-cut filter at 70 Hz prevents proximity effect and build-up of low frequencies. It supports P12 and P48 phantom powering with low current draw and utilizes an XLR 3-pin output for compatibility with most microphone preamps. The MiniCMIT microphone includes a foam windscreen and a swivel-type stand clamp.
  • Offers the tonal characteristics of the CMIT 5 in a lightweight body less than 6" long
  • Fixed 4th-order (24 dB/octave) low-cut filter at 70 Hz
  • Works on a variety of phantom power voltages
  • Integrated RFI shield rejects interference from radio frequencies

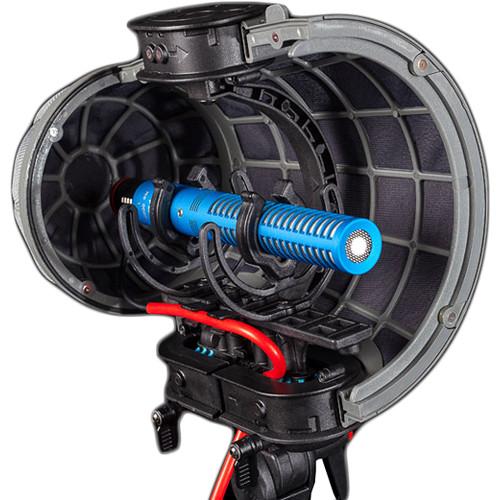

• Cyclone Windshield Kit (Small) Ideal for a multitude of outdoor ENG, broadcast, and film applications, this small Cyclone Windshield Kit from Rycote features a two-piece "Z-Locking" basket design that magnetically affixes around your microphone, isolating the mic from wind-caused noise. Up to 50 dB of reduction can be achieved with use of the Cyclone Windshield alone, and >60 dB is possible when used with a Windjammer on top of it. Increased transparency is achieved due to the cone-like shape, which reduces reflections from parallel surfaces in the recording environment, providing clean audio recordings during outdoor interviews, location shoots, and more. It's designed to provide wind noise reduction that exceeds traditional modular-style windshield/windjammer combined performance.

  The Cyclone introduces a "multi-suspension" design that provides isolation against handling noise, cable-borne noises, and windshield basket self-noise. This multi-suspension design inhibits noise and vibration induced by the windshield itself from being mechanically transmitted, thereby improving recording quality.

  The kit includes the Cyclone Suspension fitted with 72-shore Universal Lyres, a Cyclone XLR cable, a large Cyclone Windshield, a pair of Universal Lyres 62-shore for lightweight microphones, and a hex key driver for making adjustments to the Lyres on the suspension.
  Suitable Mics:
  • • DPA: 4017C, 4018C
    • Neumann: KM 100 series
    • Schoeps: CMC series
    • Sennheiser: MKH 8040, MKH 8050, MKH 50

• W 140B Foam Windscreen for Schoeps CMIT5U and MiniCMIT Shotgun Microphones (Blue)

• SG20 Microphone Adapter Stand Clamp

• Limited 2-Year Warranty

• Cyclone Suspension Fitted with 72-Shore Universal Lyres

• Cyclone Cable (XLR to XLR)

• Large Cyclone Windshield for the Cyclone Windshield Kit

• Pair of Cyclone Universal Lyre (62 Shore)

• Hex Key Driver

• Limited 1-Year Warranty

Also Includes

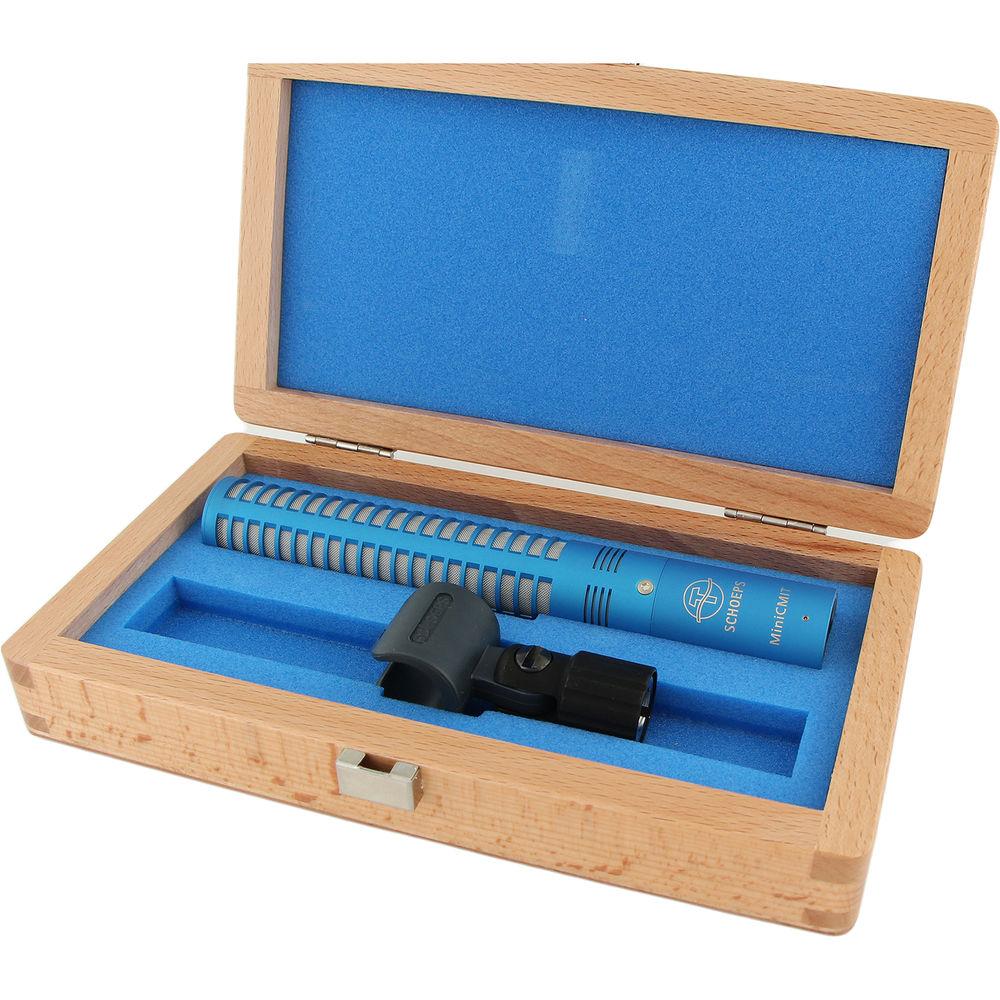

• Wood Box

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MiniCMIT Miniature Shotgun Microphone (Blue)

  Sound Field	Mono
  Operating Principle	Line Gradient
  Transducer	Condenser
  Tube	No
  Polar Pattern	Supercardioid
  Equivalent Noise Level	14 dB A-Weighted 24 dB CCIR
  Maximum SPL	130 dB SPL 115 dB SPL
  Pad	None
  Impedance	100 Ohms
  Sensitivity	16.5 mV/Pa
  Low-Cut Filter	24 dB/Octave @ 70 Hz

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	2.3 mA
  Operating Voltage	11 to 48 V
  Length	5.94" / 151 mm
  Diameter	0.83" / 21 mm
  Weight	2.75 oz / 78 g

  Box Dimensions (LxWxH)	8.8 x 7.3 x 2.3"

• Cyclone Windshield Kit (Small)

  Maximum Noise Attenuation	50 dB
  Outer Diameter	4.5 to 6.2" / 113 to 157 mm
  Length	11.7" / 297 mm
  Operating Temperature	-5 to 100°F / -20 to 38°C

  Box Dimensions (LxWxH)	16.6 x 9.7 x 6.3"
