Schoeps MiniCMIT M S Pianissimo Set

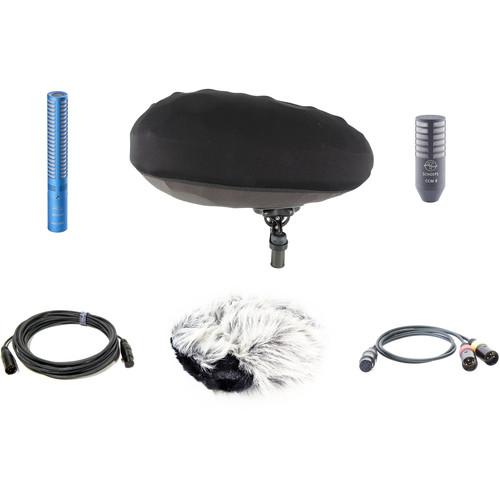

User Manual for Schoeps MiniCMIT M S Pianissimo Set Mid-Side Condenser Microphone Setup with Basket-Type Windscreen

• Product category: Shotgun Microphones Schoeps
• Brand: Schoeps
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Schoeps Shotgun Microphones

Product description

• MiniCMIT Miniature Shotgun Microphone (Blue) The blue Schoeps MiniCMIT is a miniature shotgun microphone designed to provide the characteristics of standard CMIT mic in a short and lightweight body. Delivering accurate close and distant capture of dialog and musical instruments, it is ideal for boom operators, audio engineers, and musicians in film, television, and video production as well as music recording applications. Its supercardioid/lobe-shaped polar pattern yields precise directionality, high immunity to wind noise, and low coloration at the off-axis sections of the capsule. An integrated RFI shield yields enhanced rejection of radio-frequency interference. The MiniCMIT features the same frequency response as the CMIT 5, allowing either microphone to be used without altering the sound. A fixed 24 dB/octave low-cut filter at 70 Hz prevents proximity effect and build-up of low frequencies. It supports P12 and P48 phantom powering with low current draw and utilizes an XLR 3-pin output for compatibility with most microphone preamps. The MiniCMIT microphone includes a foam windscreen and a swivel-type stand clamp.
  • Offers the tonal characteristics of the CMIT 5 in a lightweight body less than 6" long
  • Fixed 4th-order (24 dB/octave) low-cut filter at 70 Hz
  • Works on a variety of phantom power voltages
  • Integrated RFI shield rejects interference from radio frequencies
• CCM8 LG Compact Figure-Eight Microphone The Schoeps CCM8 LG is a miniature figure-eight microphone with a detachable cable. The figure-eight pattern design provides a bidirectional pickup that is almost completely identical at all frequencies. The figure-eight pattern is also useful in M/S stereo capturing. The K 5 LU adapter cable and an SGC miniature stand mount with swivel is also included.
  Figure-Eight Polar Pattern
  • The capsule is a pure pressure-gradient transducer with a figure-8 pattern. The bi-directional pattern is almost completely identical at all frequencies.
  Detachable K 5 LU Cable
  • This version of the CCM8 features a detachable 3-Pin LEMO connector allowing easier microphone interchanging and placement.
  Off-Axis High Frequency Rejection
  • The CCM8 provides exceptional high-frequency rejection at the off-axis sections of the capsule.
  Wide Linear Frequency Response
  • The wide frequency response ensures accurate detail regardless of the source signal.
• KS 5 U XLR-5 Stereo Microphone Cable (16.4') The 16.4' KS 5 U XLR-5 Stereo Microphone Cable from Schoeps has a thin diameter of 0.1" (4.4mm) and is made of Kevlar fiber making it extremely robust and nearly invisible when suspended. This cable remains flexible even in cold conditions and is non-twisting when used for hanging a microphone.
• AK SU/2U Cable for Stereo Microphones The AK SU/2U Adapter Cable from Schoeps is for use with stereo microphones MSTC 64 Ug (ORTF), KFM 6 and KFM 360 (sphere microphones) as well as the CMXY 4V Ug (X/Y microphone). The cable is used to adapt a stereo XLR-5F jack to two XLR-3M plugs. The combination of this adapter cable with its inverse counterpart (AK 2U/SU: 2 x XLR-3F to XLR-5M) and an XLR-5 extension cable makes it possible to use just one cable for a stereo setup.

• W 140B Foam Windscreen for Schoeps CMIT5U and MiniCMIT Shotgun Microphones (Blue)

• SG20 Microphone Adapter Stand Clamp

• Limited 2-Year Warranty

• K 5 LU Adapter Cable

• SGC Miniature Stand Mount with Swivel

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

• Basket-Type Windscreen Set with Fur
• Wood Box

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MiniCMIT Miniature Shotgun Microphone (Blue)

  Sound Field	Mono
  Operating Principle	Line Gradient
  Transducer	Condenser
  Tube	No
  Polar Pattern	Supercardioid
  Equivalent Noise Level	14 dB A-Weighted 24 dB CCIR
  Maximum SPL	130 dB SPL 115 dB SPL
  Pad	None
  Impedance	100 Ohms
  Sensitivity	16.5 mV/Pa
  Low-Cut Filter	24 dB/Octave @ 70 Hz

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	2.3 mA
  Operating Voltage	11 to 48 V
  Length	5.94" / 151 mm
  Diameter	0.83" / 21 mm
  Weight	2.75 oz / 78 g

  Box Dimensions (LxWxH)	8.8 x 7.3 x 2.3"

• CCM8 LG Compact Figure-Eight Microphone

  Sound Field	Mono
  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Polar Pattern	Figure-8
  Frequency Range	40 Hz to 16 kHz
  Signal to Noise Ratio	76 dB A-Weighted
  Equivalent Noise Level	18 dB A-Weighted
  Maximum SPL	134 dB SPL Peak
  Impedance	90 Ohms
  Sensitivity	10 mV/Pa
  Low-Cut Filter	@ 20 Hz

  Output Connectors	1 x 3-Pin LEMO K 5 LU with Lemo to XLRM connection supplied
  Operating Current Consumption	4 mA 8 mA with 12V phantom power
  Operating Voltage	12 to 48 V
  Length	2.28" / 58 mm
  Diameter	0.79" / 20 mm
  Weight	1.52 oz / 43 g

  Box Dimensions (LxWxH)	7.5 x 6.2 x 2.5"

• KS 5 U XLR-5 Stereo Microphone Cable (16.4')

  Length	16.4' (5.0 m)
  Diameter	0.1" (4.4 mm)

• AK SU/2U Cable for Stereo Microphones

  Color Code	Channel I: yellow, Channel II: red
  Input	XLR-5F
  Output	2 × XLR-3M
  Length	2 × 1.6' (0.5 m)

  Box Dimensions (LxWxH)	6.5 x 4.0 x 1.0"
