User Manual for Schoeps MiniCMIT Miniature Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Schoeps MiniCMIT Miniature Shotgun Microphone
- Product category: Shotgun Microphones Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Shotgun Microphones
 |
User manual for the Schoeps MiniCMIT Miniature Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|

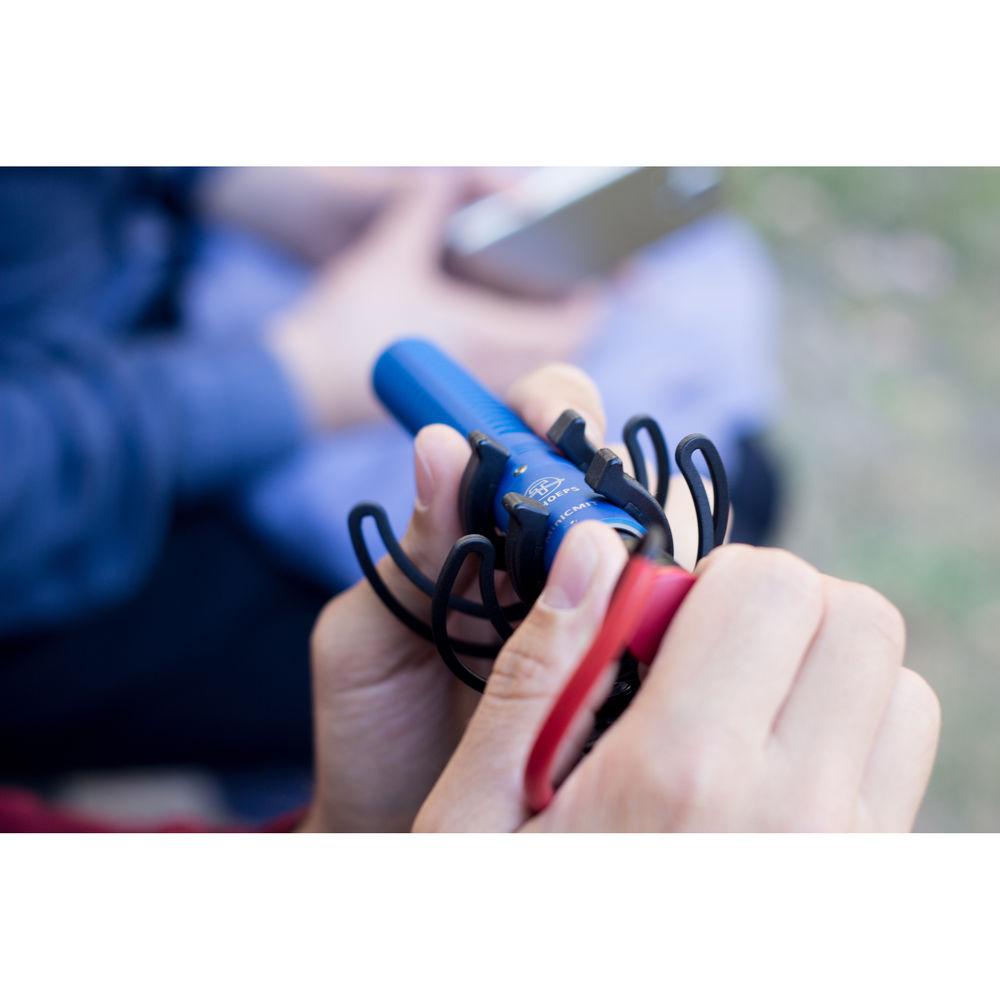

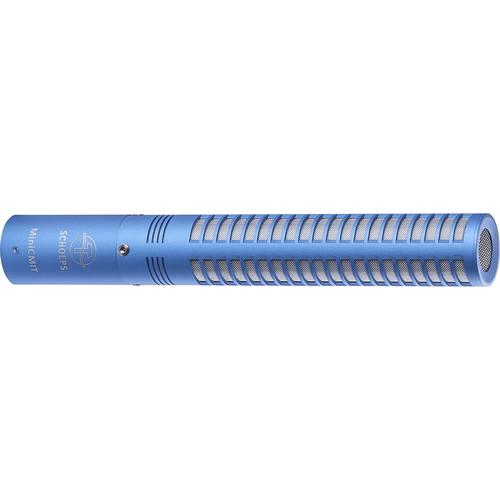

Product description The blue Schoeps MiniCMIT is a miniature shotgun microphone designed to provide the characteristics of standard CMIT mic in a short and lightweight body. Delivering accurate close and distant capture of dialog and musical instruments, it is ideal for boom operators, audio engineers, and musicians in film, television, and video production as well as music recording applications. Its supercardioid/lobe-shaped polar pattern yields precise directionality, high immunity to wind noise, and low coloration at the off-axis sections of the capsule. An integrated RFI shield yields enhanced rejection of radio-frequency interference. The MiniCMIT features the same frequency response as the CMIT 5, allowing either microphone to be used without altering the sound. A fixed 24 dB/octave low-cut filter at 70 Hz prevents proximity effect and build-up of low frequencies. It supports P12 and P48 phantom powering with low current draw and utilizes an XLR 3-pin output for compatibility with most microphone preamps. The MiniCMIT microphone includes a foam windscreen and a swivel-type stand clamp. - Offers the tonal characteristics of the CMIT 5 in a lightweight body less than 6" long
- Fixed 4th-order (24 dB/octave) low-cut filter at 70 Hz
- Works on a variety of phantom power voltages
- Integrated RFI shield rejects interference from radio frequencies
In the Box Schoeps MiniCMIT Miniature Shotgun Microphone (Blue) W 140B Foam Windscreen for Schoeps CMIT5U and MiniCMIT Shotgun Microphones (Blue) SG20 Microphone Adapter Stand Clamp Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps MiniCMIT Miniature Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps MiniCMIT Specs | | | Sound Field | Mono | | Operating Principle | Line Gradient | | Transducer | Condenser | | Tube | No | | Polar Pattern | Supercardioid | | Equivalent Noise Level | 14 dB A-Weighted
24 dB CCIR | | Maximum SPL | 130 dB SPL
115 dB SPL | | Pad | None | | Impedance | 100 Ohms | | Sensitivity | 16.5 mV/Pa | | Low-Cut Filter | 24 dB/Octave @ 70 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.3 mA | | Operating Voltage | 11 to 48 V | | Length | 5.94" / 151 mm | | Diameter | 0.83" / 21 mm | | Weight | 2.75 oz / 78 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 8.8 x 7.3 x 2.3" |
