User Manual for Schoeps MiniCMIT Mono Pianissmo Set MiniCMIT Miniature Shotgun Microphone with Windscreen Set Click to enlarge the picture
Contents of the user manual for the Schoeps MiniCMIT Mono Pianissmo Set MiniCMIT
- Product category: Small Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Small Diaphragm Condenser
 |
User manual for the Schoeps MiniCMIT Mono Pianissmo Set MiniCMIT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|

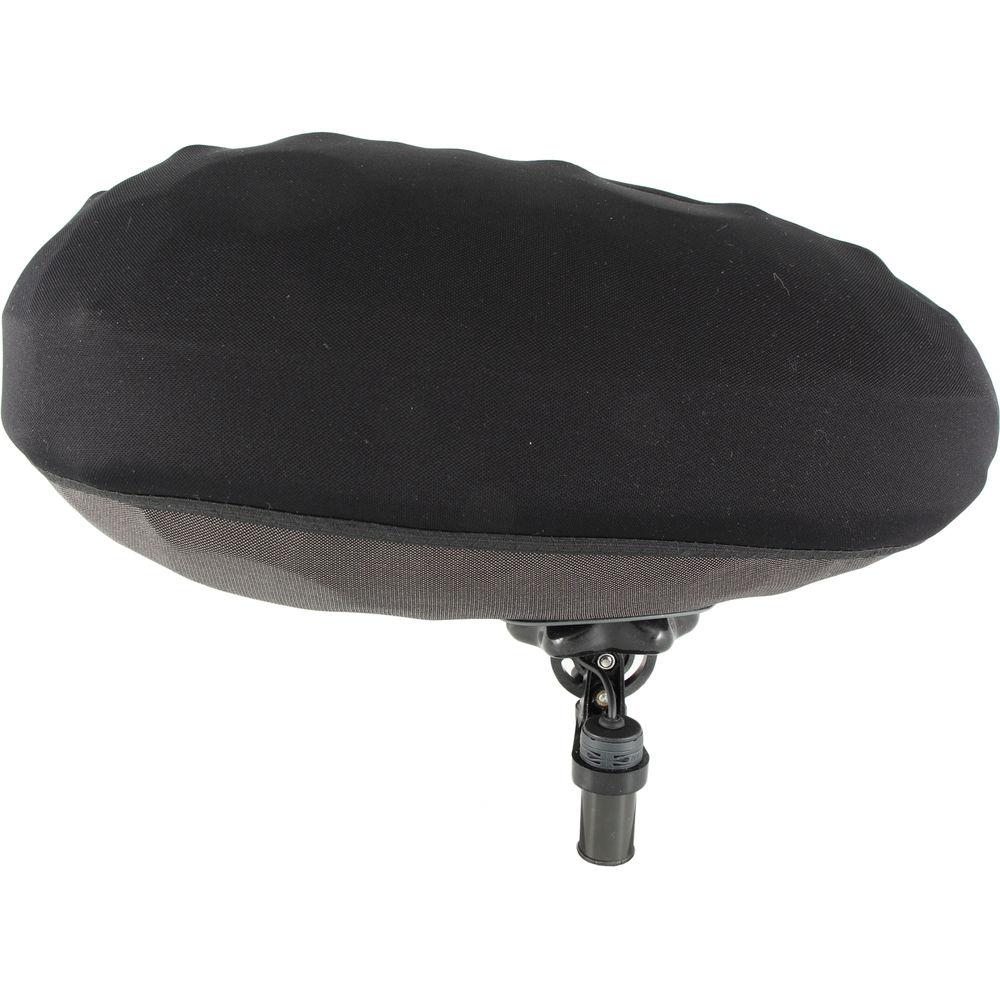

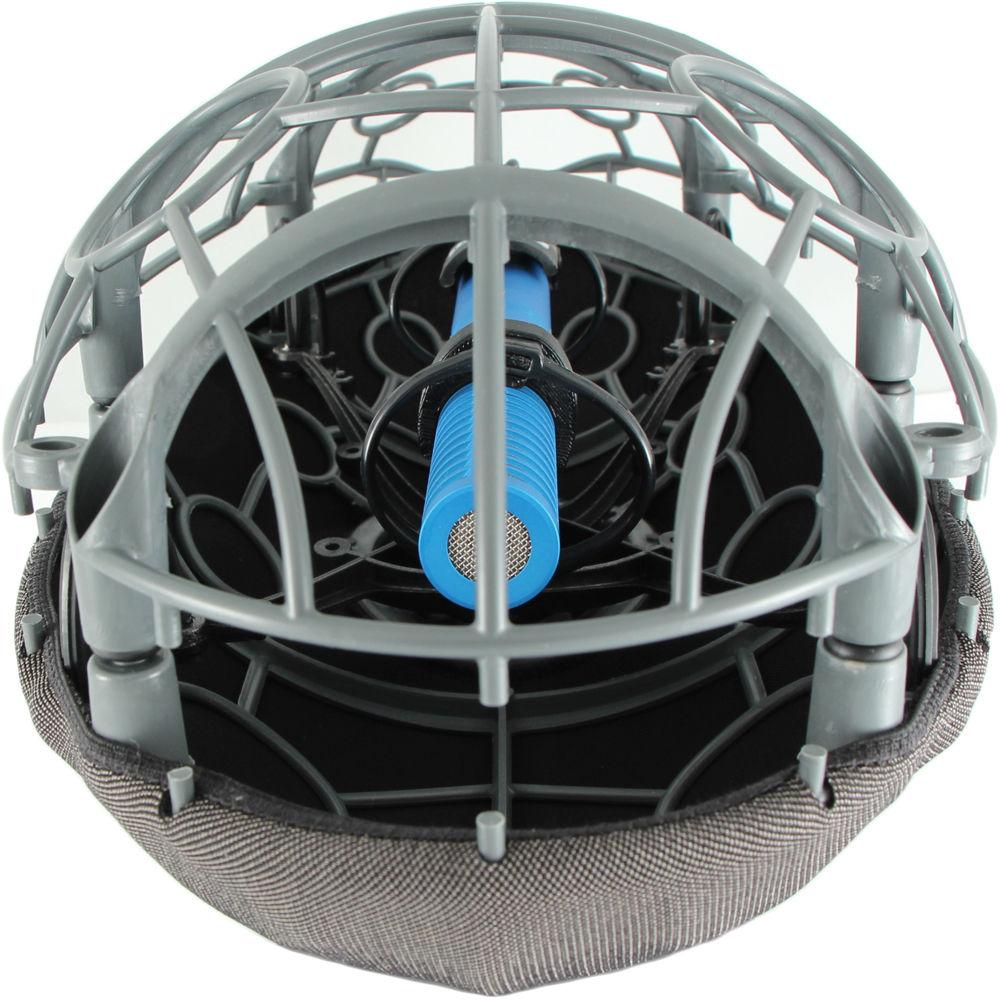

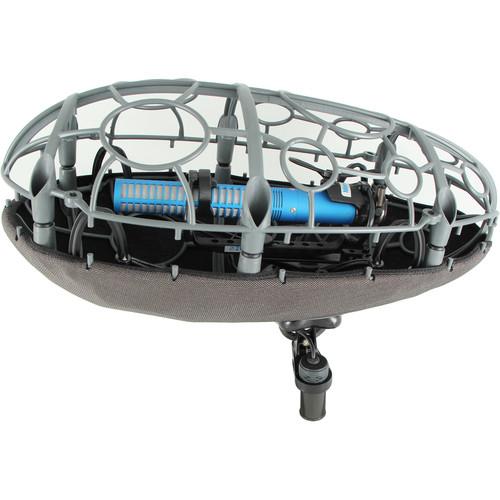

Product description The Schoeps MiniCMIT Mono Pianissmo Set is a miniature shotgun microphone with a windscreen set designed for mono recording of dialog and instruments indoors or outdoors in windy conditions. It includes a Schoeps MiniCMIT shotgun condenser microphone, basket-type windscreen set, and fur cover.The MiniCMIT boasts a wide frequency response, excellent off-axis rejection, and a fixed low-cut filter at 70 Hz. The included PIANI-1 windscreen set features a polycarbonate shell and a suspension module to cradle the microphone and eliminate handling noise. Install the supplied fur cover over the protective cage for enhanced immunity to wind noise without compromising acoustical transparency.The PIANI-1's two-axis swivel allows flexible positioning. Audio connectivity is simplified via the integrated XLR extension. - Enhanced Rejection of Off-Axis Sound
- Low-coloration and steady attenuation of off-axis sound results in a narrow pick-up pattern and balanced sonic character
- High Directionality
- The supercardioid/lobe-shaped polar pattern offers directionality that increases smoothly with higher frequencies
- Low-Cut Filter
- A fixed fourth-order, low-cut filter at 70 Hz attenuates rumble and unwanted bass frequencies
- Neutral Sonic Characteristics
- The wide frequency response and high maximum SPL enable the microphone to accurately capture dialog and instruments
- Effective Physical Protection

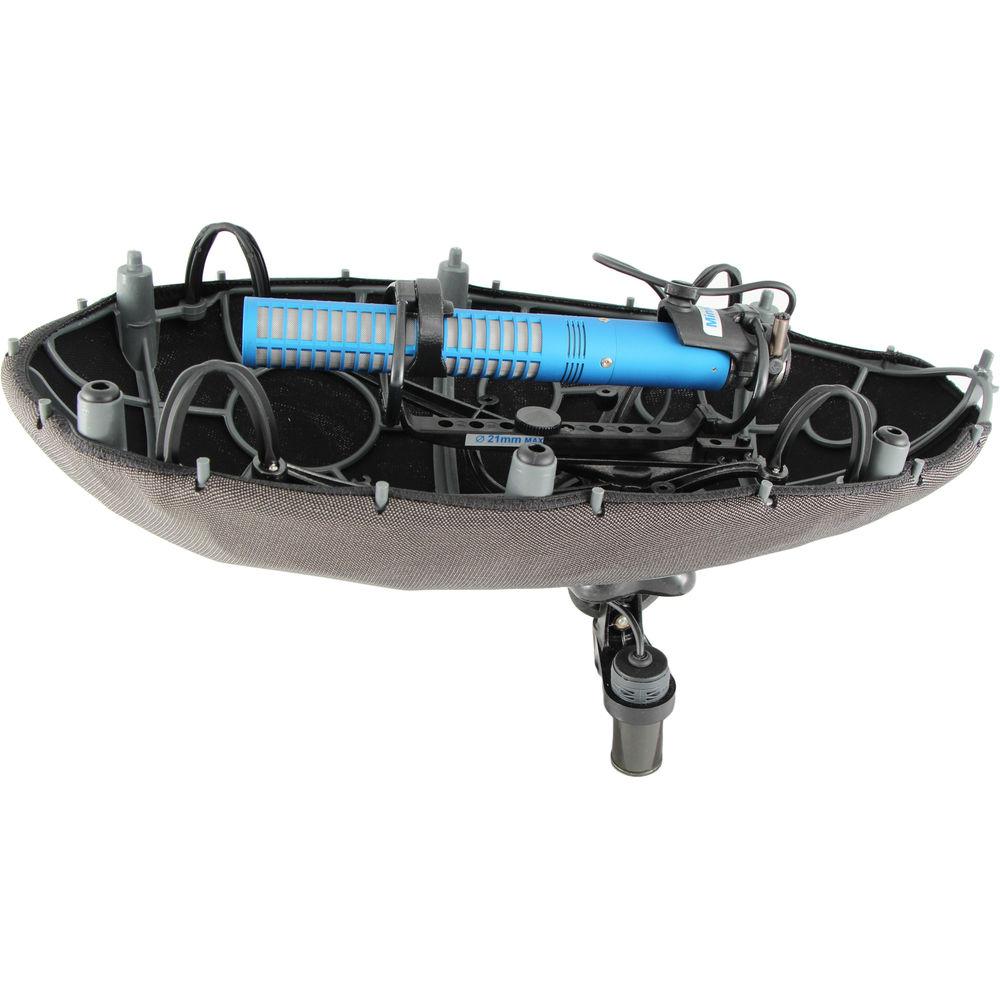

- Cinela microphone suspension module prevents the transmission of noise from your boom to the mic
- Attenuation of Wind Noise

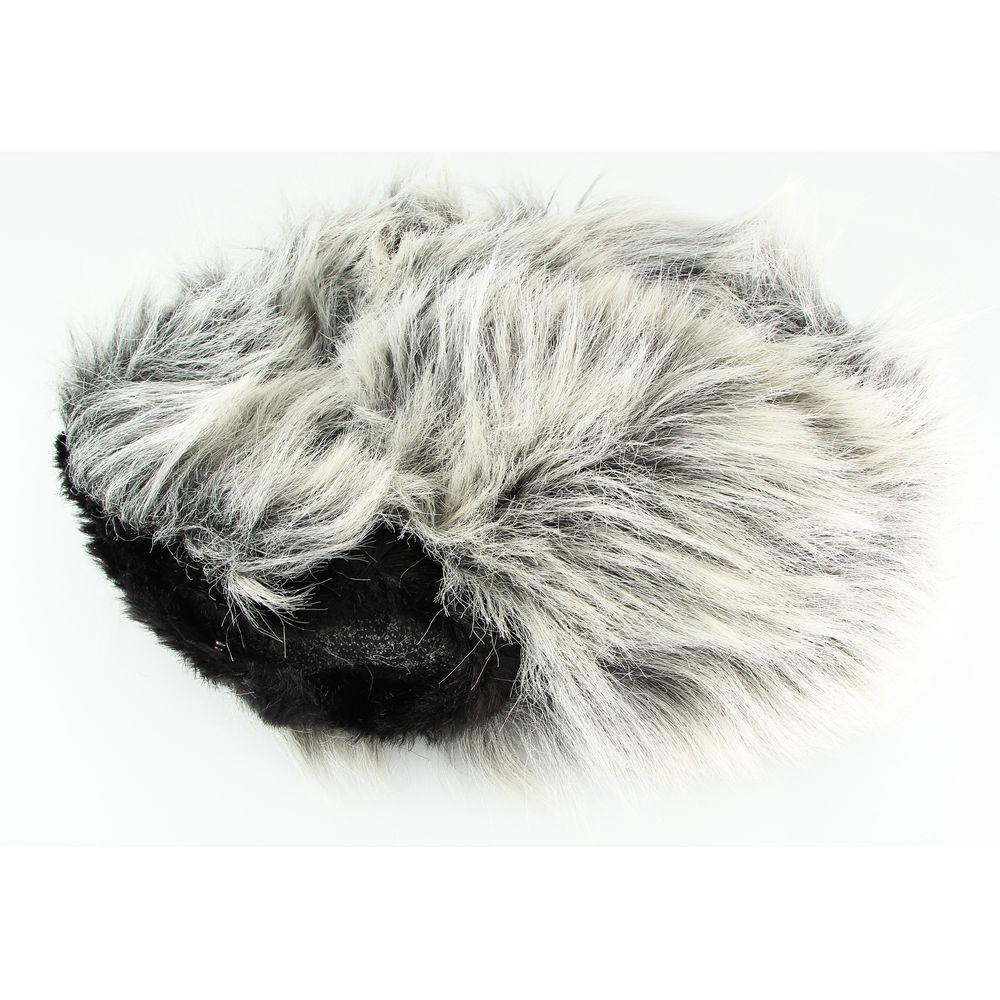

- Fur cover easily installs over the windscreen cage and delivers high attenuation of wind noise

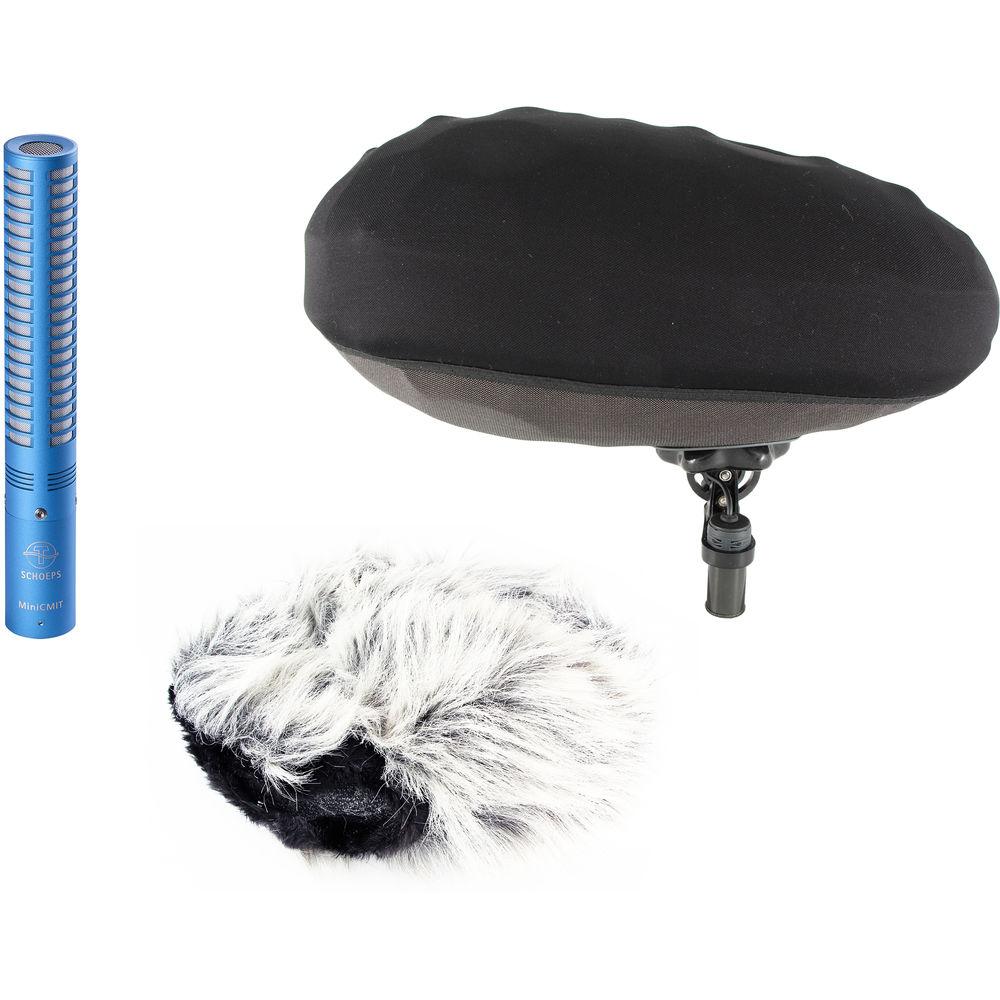

In the Box Schoeps MiniCMIT Mono Pianissmo Set MiniCMIT Miniature Shotgun Microphone with Windscreen Set MiniCMIT Miniature Shotgun Microphone (Blue) Basket-Style Windscreen Set Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps MiniCMIT Mono Pianissmo Set MiniCMIT Miniature Shotgun Microphone with Windscreen Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps MiniCMIT Specs | | | Sound Field | Mono | | Operating Principle | Line Gradient | | Transducer | Condenser | | Tube | No | | Polar Pattern | Supercardioid | | Equivalent Noise Level | 14 dB A-Weighted
24 dB CCIR | | Maximum SPL | 130 dB SPL
115 dB SPL | | Pad | None | | Impedance | 100 Ohms | | Sensitivity | 16.5 mV/Pa | | Low-Cut Filter | 24 dB/Octave @ 70 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.3 mA | | Operating Voltage | 11 to 48 V | | Length | 5.94" / 151 mm | | Diameter | 0.83" / 21 mm | | Weight | 2.75 oz / 78 g |
