User Manual for Schoeps MK 21 Microphone Capsule Click to enlarge the picture
Contents of the user manual for the Schoeps MK 21 Microphone Capsule
- Product category: Modular Microphone Components Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Modular Microphone Components
|
User manual for the Schoeps MK 21 Microphone Capsule contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|

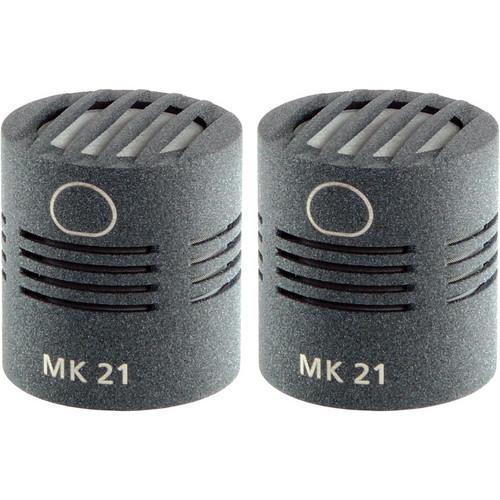

Product description The matte gray MK 21 Microphone Capsule from Schoeps comes as a matched pair, and has a directional pattern between omni and cardioid. This capsule is designed to combine the advantages of the cardioid with those of the omni. This results in a pickup pattern which blends the 2 sets of characteristics. It has full and extended low-frequency response, with less proximity effect, while picking up more room sound.
The directivity of this capsule is slightly dependent on frequency. This contrasts with omnidirectional capsules, whose directivity increases with rising frequency, and with cardioids (at least smaller ones), which tend to accentuate high frequencies that arrive at oblique angles.
This capsule has orientation that is less critical than with a cardioid, since direct sound arriving on axis and reverberant or other sounds off axis are both reproduced accurately. This lack of coloration in the off-axis pickup produces a natural sonic impression. The low directivity of this capsule type prevents it from generating large level differences for X/Y use, though M/S and near-coincident spacings are often successful. Note: This capsule is delivered with a hand-signed Certificate from the factory. Matching is of frequency response and sensitivity within exceptionally low tolerances. - Especially consistent directionality throughout its frequency range
- Pleasant sonic impression
- Often preferred for use as a spot microphone, or as the main pair for overall stereo pickup
In the Box Schoeps MK 21 Microphone Capsule (Matched Pair, Matte Gray) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps MK 21 Microphone Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps MK21 Specs | Frequency Range | 30 Hz to 20 kHz | | Sensitivity | 13 mV/Pa | | Equivalent Noise Level | 14 dB-A (A-weighted)
24 dB (CCIR) | | Signal-to-Noise Ratio | 80 dB-A (A-weighted) | | Maximum Sound Pressure Level (SPL) | 132 dB-SPL at 0.5% THD | | Dimensions (Ø x L) | 0.79 x 0.88" (20.00 x 22.00 mm) | | Weight | 0.6 oz (17.0 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 7.3 x 4.6 x 1.5" |
