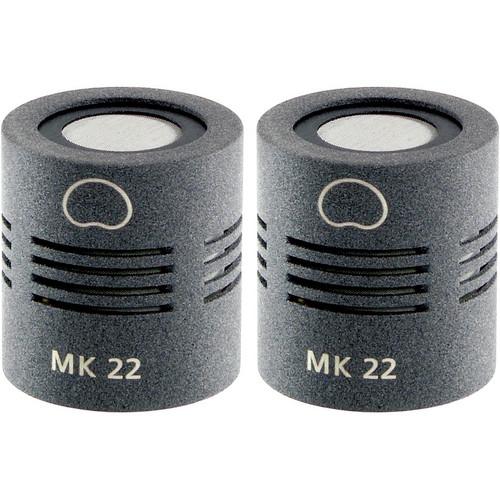

User Manual for Schoeps MK 22 Microphone Capsule Click to enlarge the picture
Contents of the user manual for the Schoeps MK 22 Microphone Capsule
- Product category: Modular Microphone Components Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Modular Microphone Components
|
User manual for the Schoeps MK 22 Microphone Capsule contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The matte gray MK 22 Microphone Capsule from Schoeps comes as a matched pair, and has open cardiod directional pattern, occupying a point on the spectrum between the wide cardioid and classic cardioid patterns. The response is -5 dB at 90° and there is 16 dB suppression of rear-incident sound. It is in essence a variant cardioid which balances a very natural sound quality with a good degree of directionality.
This capsule’s sonic transparency and good suppression of rear-incident sound make it a universal problem-solver. This capsule has wide cardioid that offers an alternative when its lower directivity fits the recording situation, e.g., for the first desk of strings or for solo piano.
This capsule has been developed for use as a spot microphone. It unites the strengths of the MK 4 and MK 21 capsules. Its directivity is essentially constant throughout the frequency range. Its inherent low-frequency response is somewhat more pronounced than that of the cardioid, while proximity effect is somewhat less. This capsule is well suited for use as stereo pairs. Note: This capsule is delivered with a hand-signed Certificate from the factory. Matching is of frequency response and sensitivity within exceptionally low tolerances. - Open cardioid directional pattern
- Optimal combination of classic cardioid directionality with the sonic character of the wide cardioid
- Directional pattern largely constant throughout the frequency range
- Suitable for spot miking and as a soloist's microphone
In the Box Schoeps MK 22 Microphone Capsule (Matched Pair, Matte Gray) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps MK 22 Microphone Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps MK22 Specs | Frequency Range | 40 Hz to 20 kHz | | Sensitivity | 14 mV/Pa | | Equivalent Noise Level | 14 dB-A (A-weighted)
23 dB (CCIR) | | Signal-to-Noise Ratio | 80 dB-A (A-weighted) | | Maximum Sound Pressure Level (SPL) | 130 dB-SPL at 0.5% THD | | Dimensions (Ø x L) | 0.79 x 0.88" (20.00 x 22.00 mm) | | Weight | 0.6 oz (17.0 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 6.2 x 4.5 x 1.2" |
