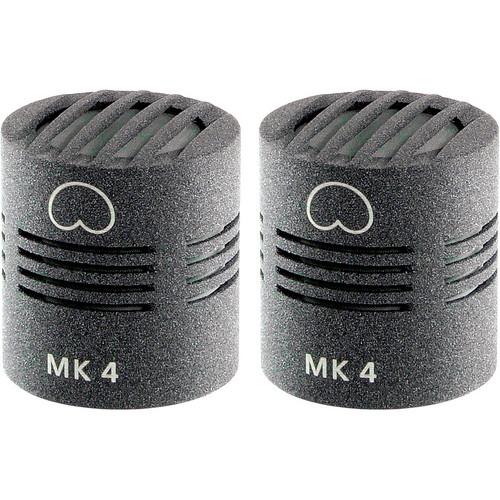

User Manual for Schoeps MK 4 Microphone Capsule Click to enlarge the picture
Contents of the user manual for the Schoeps MK 4 Microphone Capsule
- Product category: Modular Microphone Components Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Modular Microphone Components
|
User manual for the Schoeps MK 4 Microphone Capsule contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The matte gray MK 4 Microphone Capsule from Schoeps comes as a matched pair, and offers high quality sound, flat frequency response, optimal rejection of rear-incident sound, and a directional pattern that remains constant throughout the audio frequency range. In the diffuse sound field, it shows only a mild rise of around 10 kHz; the sonic impression thus remains free of coloration even when sound is arriving from all sides at once. The sonic impression is also free of coloration whether sound is arriving at the front or at the sides of the microphone, as well as for diffuse sound (reverberation) in a room.
The MK 4 Microphone Capsule is often preferred by opera singers and other trained vocalists. But its natural, transparent character makes it suitable for use in pop and rock applications, on stage or in the studio, where equalization is a part of the plan. This microphone, with clear, neutral sound quality, provides a suitable point of departure whenever special coloring is needed. Note: This capsule is delivered with a hand signed Certificate from the factory. Matching is of frequency response and sensitivity within exceptionally low tolerances. - Suitable for a wide range of applications, either as a spot microphone or for stereo recording with coincident, ORTF, or M/S microphone arrangements
- With consistent directionality throughout its frequency range
- Often preferred for singing or speaking voices and most instruments
In the Box Schoeps MK 4 Microphone Capsule (Matched Pair, Matte Gray) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps MK 4 Microphone Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps MK4 Specs | Frequency Range | 40 Hz to 20 kHz | | Sensitivity | 3 mV/Pa | | Equivalent Noise Level | 15 dB-A (A-weighted)
24 dB (CCIR) | | Signal-to-Noise Ratio | 79 dB-A (A-weighted) | | Maximum Sound Pressure Level (SPL) | 132 dB-SPL at 0.5% THD | | Dimensions (Ø x L) | 0.70 x 0.87" (20.00 x 22.00 mm) | | Weight | 0.6 oz (17.0 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.3 x 6.6 x 4.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
