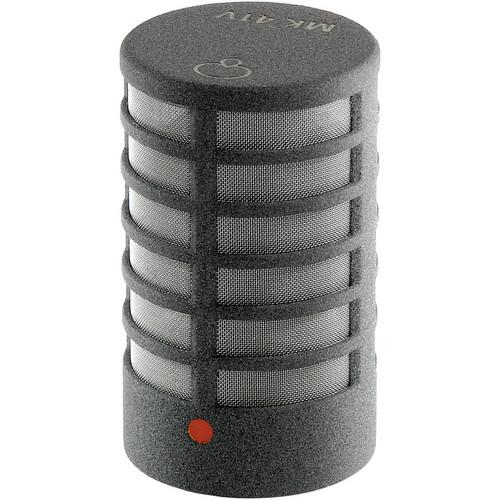

User Manual for Schoeps MK 41V Microphone Capsule Click to enlarge the picture
Contents of the user manual for the Schoeps MK 41V Microphone Capsule
- Product category: Modular Microphone Components Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Modular Microphone Components
|
User manual for the Schoeps MK 41V Microphone Capsule contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The matte gray MK 41V Microphone Capsule from Schoeps is useful in all situations with music or speech, either as a spot microphone or as an overall directional microphone. However, this type of capsule is addressed from the side. It excels particularly in the constancy of its polar response throughout the audio spectrum. As a result, sound within 90° on either side of the main axis is picked up with virtually no alteration of frequency response or tone color. This is strongly evident with sound sources that are in motion, but is also of benefit in obtaining stable, precise stereo imaging for normal music recordings.
This capsule type is preferred as a support microphone as well as in the OCT (Optimized Cardioid Triangle) microphone system for surround sound recording. The front left and right channels in that system are picked up by sideways-facing supercardioid microphones. When mounted on CMC amplifiers, the MK 41V Capsule may be easier to use in near-coincident setups because the parallel microphone bodies will not get in each other's way. - Supercardioid for vertical pickup (side-addressed)
- For a wide range of recording applications
- High directivity comparable to that of a short shotgun microphone up through midrange frequencies
- With especially consistent directionality throughout its frequency range
- Often preferred for use in music and speech recording, as a spot microphone and also as a main microphone, especially when using the OCT recording method
In the Box Schoeps MK 41V Microphone Capsule (Matte Gray) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps MK 41V Microphone Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps MK41 Specs | Frequency Range | 40 Hz to 20 kHz | | Sensitivity | 14 mV/Pa | | Equivalent Noise Level | 14 dB-A (A-weighted)
23 dB (CCIR) | | Signal-to-Noise Ratio | 80 dB-A (A-weighted) | | Maximum Sound Pressure Level (SPL) | 132 dB-SPL at 0.5% THD | | Dimensions (Ø x L) | 0.70 x 0.87" (20.00 x 22.00 mm) | | Weight | 0.6 oz (17.0 g) |
