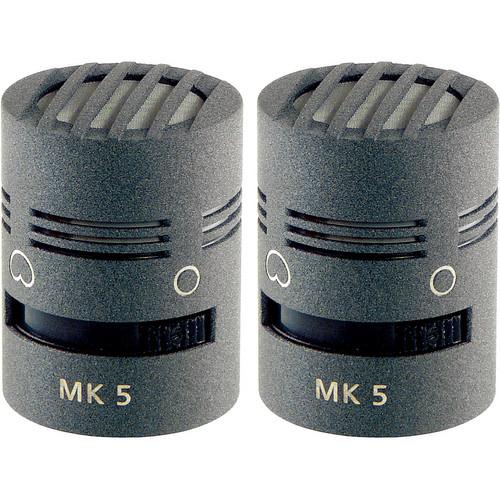

User Manual for Schoeps MK 5 Microphone Capsule Click to enlarge the picture
Contents of the user manual for the Schoeps MK 5 Microphone Capsule
- Product category: Modular Microphone Components Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Modular Microphone Components
|
User manual for the Schoeps MK 5 Microphone Capsule contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The matte gray MK 5 Microphone Capsule from Schoeps comes as a matched pair, and offers 2 selectable directional patterns, but uses only a single membrane, a no-compromise approach. The fact that full response is maintained to the high audible frequencies is unusual for a switchable-pattern microphone.
In its omnidirectional setting, this MK 5 Microphone Capsule is a true pressure transducer with smooth, extended low-frequency response, low sensitivity to most wind and breath noise, handling noise or mechanical vibration, and no proximity effect. This capsule has a cardioid setting that retains its full directionality even at very low frequencies. The benefits of this design are in its purity and clarity of sound which is immediately audible. This capsule has a slight high-frequency emphasis.
The MK 5 Microphone Capsule is nearly an all-purpose capsule. It is recommended for those starting out with the Colette series. Note: This capsule is delivered with a hand-signed certificate from the factory. Matching is of frequency response and sensitivity within exceptionally low tolerances.
The pattern selector should be definitely set to one position or the other; in-between settings will yield undefined results. - Omni and cardioid patterns, mechanically switchable
- Slight emphasis of the high frequencies
- Broad range of applications
- In the Cardioid Setting: For use with singing or speaking voices or most instruments, as a spot microphone, and for stereo recording with coincident, ORTF or M/S microphone arrangements
- In the Omni Setting: For recording instruments, singers, and more at relatively close range
In the Box Schoeps MK 5 Microphone Capsule (Matched Pair, Matte Gray) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps MK 5 Microphone Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps MK5 Specs | Frequency Range | Omni: 20 Hz to 20 kHz
Cardioid: 40 Hz to 20 kHz | | Sensitivity | Omni: 10 mV/Pa
Cardioid: 13 mV/Pa | | Equivalent Noise Level | Omni:
14 dB-A (A-weighted)
15 dB-A (A-weighted)
Cardioid:
26 dB (CCIR)
24 dB (CCIR) | | Signal-to-Noise Ratio | Omni: 80 dB-A (A-weighted)
Cardioid: 79 dB-A (A-weighted) | | Maximum Sound Pressure Level (SPL) | Omni: 133 dB-SPL at 0.5% THD
Cardioid: 132 dB-SPL at 0.5% THD | | Dimensions (Ø x L) | 0.79 x 1.06" (20.00 x 27.00 mm) | | Weight | 0.88 oz (25.00 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.5 x 4.6 x 1.5" |
