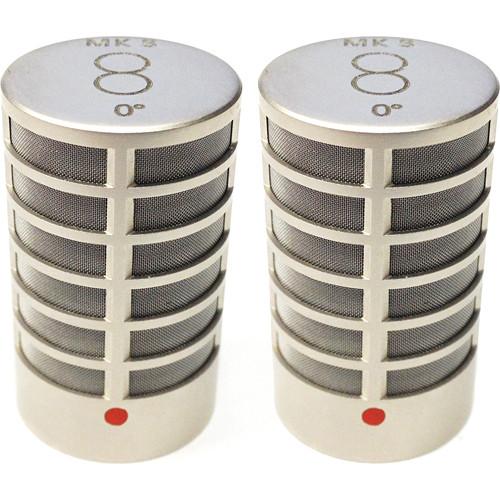

User Manual for Schoeps MK 8 Microphone Capsule Click to enlarge the picture
Contents of the user manual for the Schoeps MK 8 Microphone Capsule
- Product category: Modular Microphone Components Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Modular Microphone Components
|
User manual for the Schoeps MK 8 Microphone Capsule contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The nickel finish MK 8 Microphone Capsule from Schoeps is a true dipole (bidirectional) transducer, operating with a single diaphragm. Its main axis is at a right angle to the capsule, and is marked at 0 and 180° with a red and a black dot, respectively. Both the microphones that are included are phase-matched.
When M/S stereo recordings are made, the 0° axis normally faces to the left as viewed from behind the microphone setup. The 8 engraved on the top of the housing should be aligned on its side so as to appear horizontal, at a precise right angle to the mid capsule. The microphone should be placed directly above or beneath the M channel microphone, and as close to it as possible. The sound quality of this capsule is clear and neutral. The frequency response rolls off above 16 kHz.
When this capsule is used as a spot microphone, care must be taken to avoid picking up early reflections or unwanted direct sound from its rear, since sound arriving from the back is picked up with full level but reversed in polarity. This could result in partial cancellation of the intended sound, which can lead to comb-filter effects at higher frequencies.
The directivity index of a figure-8 pattern is the same as that of a cardioid. The figure-8 has a rear lobe equal in sensitivity to its front lobe, and this exactly makes up the quantitative difference. However, in normally reverberant settings, the sound reaching a figure-8's rear lobe will be delayed and dispersed to a considerably greater extent; the reflected sound will typically be subject to far more high-frequency absorption as well. Note: This capsule is delivered with a hand-signed Certificate from the factory. Matching is of frequency response and sensitivity within exceptionally low tolerances. - Sensitivity decreases at low frequencies
- Directional characteristic is extraordinarily independent of frequency
- Proximity effect is present
- Pure pressure-gradient transducer
- Figure-8 pattern with near-ideal consistency across the frequency range
- Side-addressed (pickup perpendicular to the microphone body)
- Optimal for use in M/S and Blumlein stereo recording
In the Box Schoeps MK 8 Microphone Capsule (Matched Pair, Nickel Finish) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps MK 8 Microphone Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps MK8 Specs | Frequency Range | 40 Hz to 16 kHz | | Sensitivity | 10 mV/Pa | | Equivalent Noise Level | 18 dB-A (A-weighted)
26 dB (CCIR) | | Signal-to-Noise Ratio | 76 dB-A (A-weighted) | | Maximum Sound Pressure Level (SPL) | 134 dB-SPL at 0.5% THD | | Dimensions (Ø x L) | 0.79 x 1.35" (20.00 x 34.00 mm) | | Weight | 0.63 oz (18.00 g) |
