User Manual for Schoeps MK2 Microphone Capsule Click to enlarge the picture
Contents of the user manual for the Schoeps MK2 Microphone Capsule
- Product category: Modular Microphone Components Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Modular Microphone Components
|
User manual for the Schoeps MK2 Microphone Capsule contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|

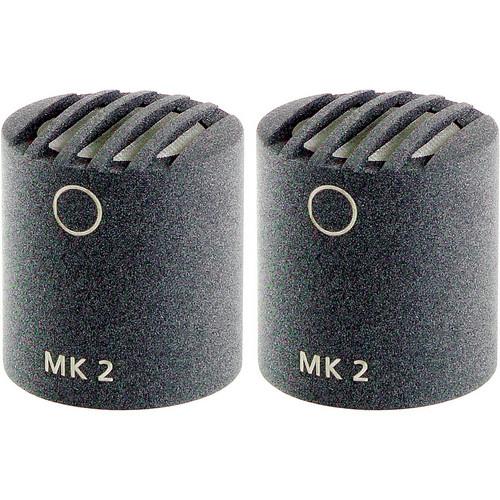

Product description The matte gray MK2 Microphone Capsule from Schoeps comes as a matched pair, and has a flat frequency response for frontal sound incidence. This yields a very natural sound when recordings are made within the reverberation radius, where the direct sound (frontal incidence) predominates over the reverberant sound (random angles of incidence).
This capsule is often used for acoustical measurement, an application for which it has gained a considerable reputation. Note: This capsule is delivered with a hand signed Certificate from the factory. Matching is of frequency response and sensitivity within exceptionally low tolerances. There is some directivity at high frequencies due to the physics of sound wavelengths. Thus even with an omnidirectional microphone, it still matters which way the capsule is aimed. - Very flat frequency response
- Corrected for a free sound field
- For use close to the sound source (frontal sound)
- Suitable for relatively close miking of instruments, vocalists, and more
In the Box Schoeps MK2 Microphone Capsule (Matched Pair, Matte Gray) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps MK2 Microphone Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps MK2 Specs | Frequency Range | 20 Hz to 20 kHz | | Sensitivity | 16 mV/Pa | | Equivalent Noise Level | 11 dB-A (A-weighted)
23 dB (CCIR) | | Signal-to-Noise Ratio | 83 dB-A (A-weighted) | | Maximum Sound Pressure Level (SPL) | 130 dB-SPL at 0.5% THD | | Dimensions (Ø x L) | 0.79 x 0.88" (20.00 x 22.00 mm) | | Weight | 0.6 oz (17.0 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.772 x 4.724 x 1.575" |
