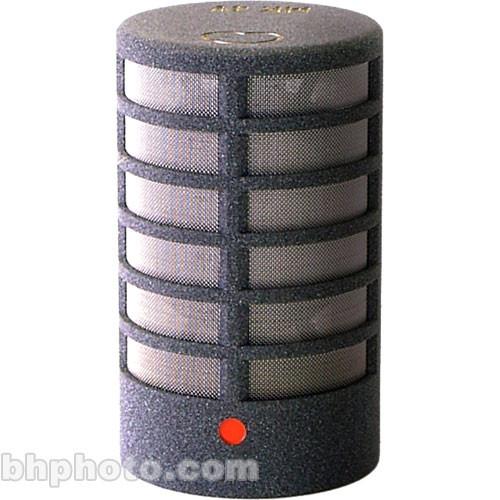

User Manual for Schoeps MK4V Radial Cardioid Capsule for CMC Preamplifiers Click to enlarge the picture
Contents of the user manual for the Schoeps MK4V Radial Cardioid Capsule for
- Product category: Modular Microphone Components Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Modular Microphone Components
|
User manual for the Schoeps MK4V Radial Cardioid Capsule for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The Schoeps MK4V is part of the Colette series of modular capsules designed for use with the CMC6 preamplifier. The radial design is a direct result of the demand for a cardioid capsule where the maximum pick up occurs on the side as opposed to the front (top) of the capsule. The acoustically transparent housing is particularly effective in reducing high frequency signal energy at the off-axis sections of the capsule, a common problem among standard cardioid elements. The linear frequency response features a slight rise at 10KHz, which enhances presence and intelligibility. The cardioid lateral pick up and high frequency response characteristics render the MK4V more than viable for speech, general instrument capturing, mono and stereo ambiance capturing. - Radial Pick-up Design
- Lateral cardioid pick up pattern is the result of a design that enables the maximum pick up response to occur on the side of the capsule.
- Off-Axis High Frequency Rejection
- The MK4V provides exceptional high frequency rejection at the off-axis sections of the capsule.
- Wide Linear Frequency Response
- The wide frequency response ensures accurate detail regardless of the source signal.
- High Frequency Rise
- A slight rise in frequency response occurs at around 10KHz. The result is greater presence and intelligibility.
In the Box Schoeps MK4V Radial Cardioid Capsule for CMC Preamplifiers 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps MK4V Radial Cardioid Capsule for CMC Preamplifiers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps MK4 Specs | Transducer | Condenser | | Polar Pattern | Cardioid (MK4V) | | Frequency Response | 40Hz to 20KHz (MK4V) | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | 80dB-A (MK4V) | | Maximum Input Sound Level | 132dB (MK4V) | | Power Requirements | 12V - 48V Phantom Power (CMC6) | | Output Impedance | Minimum Load: 600 Ohms (CMC6)
(If a lower load impedance is used, the main effect will be to reduce the maximum output level of the microphone.) | | Output Connectors | 3-pin XLR (CMC6) | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 4.57 x 0.78" (116 x 20mm) (Length x Diameter) (with CMC6) | | Weight | 68g (with CMC6) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.7 x 4.3 x 0.7" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
