User Manual for Schoeps OCT Set Surround Front System Click to enlarge the picture
Contents of the user manual for the Schoeps OCT Set Surround Front System
- Product category: Mounts, Clamps & Brackets Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Mounts, Clamps & Brackets
|
User manual for the Schoeps OCT Set Surround Front System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|

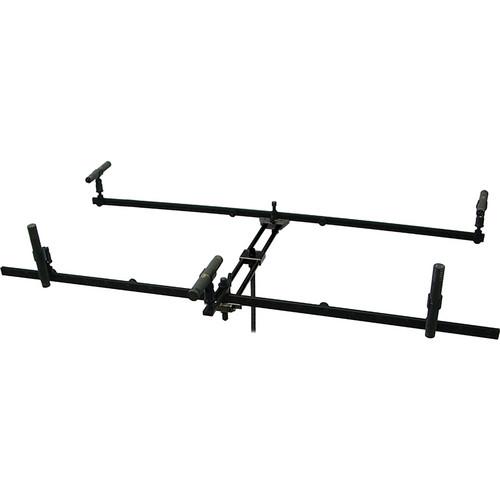

Product description The Schoeps OCT Set Surround Front System is a microphone set designed for the front surround channels. OCT (Optimized Cardioid Triangle) is a method for picking up the 3 front chan¬nels of a surround recording. It can be combined with any of the several methods used for obtaining the rear channels, thus completing the OCT surround.The preferred setup for OCT uses a forward-facing cardioid for the center channel. For the front L and R channels, 2 supercardioid microphones are placed at the opposite ends of an imaginary line running about 3.14” (8cm) behind the center microphone. These 2 microphones should be 15.74 to 35.43” (40 to 90cm) apart, depending on the required recording angle. They must face squarely outward, away from the center. This method achieves a good separation between the center-to-left sector and the center-to-right sector to give sound clarity.The entire process of placing the microphones at optimal distance and alignment helps prevent the formation of annoying ‘phantom images’ of sound sources in the wrong sector during playback. A clean center channel is conveyed by this system since front-incident sound is picked up mainly by the cardioid in the center. The left and right microphones, with their high directivity, pick up front-incident sound only at a much lower level.If the cardioid is placed 3.14” (8cm) forward, the following recording angles will result, depending on the distance between the supercardioids.15.74” (40cm): 160°19.68” (50cm): 140°23.62” (60cm): 120°27.55” (70cm): 110°31.49” (80cm): 100°35.43” (90cm): 90°It is better to err in the direction of greater spacing so as to avoid center-heavy images. As the supercardioids receive maximum of their sound from off axis necessitates, the use of small-diaphragm condenser microphones with the requisite independence of frequency response from the angle of sound incidence is preferable. The CCM 41V, MK 41V, CCM 41, and MK 41 can be used with this set up. In the Box Schoeps OCT Set Surround Front System 2 x CCM 41 Lg Compact Microphone (Supercardioid) CCM 4 Lg Compact Microphone (Cardioid) MAB 1000 Mounting Bar Wooden Box for the 3 Microphones 3 x SGC Mounting Clamp 3 x K 5 LU Output Cable (Lemo / XLR-3M) Limited 2-Year Warranty Table of Contents
|
