User Manual for Schoeps ORTF Stereo Outdoor Set CCM 4 Lg Condenser Microphones with Basket-Type Windscreen Click to enlarge the picture
Contents of the user manual for the Schoeps ORTF Stereo Outdoor Set CCM
- Product category: Small Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Small Diaphragm Condenser
|
User manual for the Schoeps ORTF Stereo Outdoor Set CCM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|

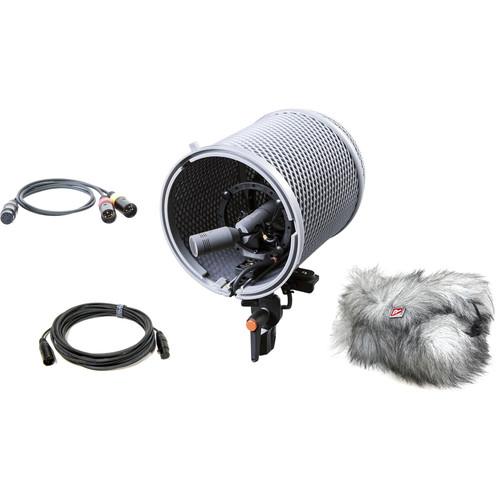

Product description The Schoeps ORTF Stereo Outdoor Set is a pair of Schoeps condenser microphones with a basket-type windscreen designed for ORTF stereo recording of dialog and instruments indoors or outdoors in windy conditions. It includes a matched pair of CCM 4 Lg cardioid condenser microphones, a WSR ORTF LU windscreen, an XLR 5-pin extension, and a break-out cable that converts an XLR 5-pin to two XLR 3-pin jacks.
The microphones boast wide frequency responses, excellent off-axis rejection, and compact bodies. The included basket-type windscreen is acoustically transparent and offers significant vibration isolation and wind-noise reduction. Its microphone mounting bracket holds the mics in a perfect ORTF stereo configuration, making setup fast and easy.An integrated cable system merges the individual mic outputs to an XLR 5-pin jack. Connect the XLR 5-pin output to the supplied XLR 5-pin extension and breakout cable, which converts an XLR 5-pin to two XLR 3-pin connectors. From there, you can easily route signal to your preferred mic preamps. - CCM4 LG Cardioid Compact Microphone The Schoeps CCM4 is a miniature cardioid microphone featuring a detachable cable and designed for use on singing and speaking voices as well as a wide variety of instruments. It can be used as a spot microphone or for stereo recording with additional mics in coincident, ORTF, or M/S microphone arrangements.The CCM 4 offers a flat frequency response, optimal rejection of rear-incident sound, and a directional pattern that remains constant throughout the audio frequency range. This mic is free of coloration whether the sound is arriving at the front, the sides, or from all around the mic at once.
- Suitable for the widest range of applications, either as a spot microphone or for stereo recording with additional mics in coincident, ORTF, or M/S microphone arrangements
- Consistent directionality throughout its frequency range
- Preferred for singing or speaking voices and most instruments
- WSR ORTF LU Basket-Type Windscreen & ORTF Stereo Mounting Bar The Schoeps WSR ORTF LU Basket-Type Windscreen & ORTF Stereo Mounting Bar is a full basket windshield and stereo mounting solution for Schoeps CCM series microphones. The system includes a basket windshield for optimum noise suppression in windy conditions, a STC 4G stereo bar for mounting a pair of CCM 4L microphones, and an STC 22G stereo bar for mounting a pair of CCM 22 microphones (microphones not included).Also included are an elastic suspension, Y-cable and connbox with an 5-pin XLR male output. The entire system allows the microphone capsules to be kept at a distance of 6.69" (17cm) apart, and an angle of 110° for optimum stereo results. Everything is easily mounted on a boompole, pistol-grip or any stand with a 3/8" thread. The Schoeps WSR ORTF LU is a viable solution for professional stereo audio recording in video, film and professional recording applications alike.
- Resistant to wind and solid-borne noise due to the use of a basket-type windscreen and a high-quality suspension mount.
- Microphone capsules are kept at a distance of 17cm and an angle of 110° from one another.
- Consists of the STC 4G and STC 22G mounting adapters for an elastic suspension, a Y-cable with Connbox and a basket-type windscreen.
- KS 10 U XLR-5 Stereo Microphone Cable (32.8') The 32.8' KS 10 U XLR-5 Stereo Microphone Cable from Schoeps has a thin diameter of 0.1" (4.4mm) and is made of Kevlar fiber making it extremely robust and nearly invisible when suspended. This cable remains flexible even in cold conditions and is non-twisting when used for hanging a microphone.
- AK SU/2U Cable for Stereo Microphones The AK SU/2U Adapter Cable from Schoeps is for use with stereo microphones MSTC 64 Ug (ORTF), KFM 6 and KFM 360 (sphere microphones) as well as the CMXY 4V Ug (X/Y microphone). The cable is used to adapt a stereo XLR-5F jack to two XLR-3M plugs. The combination of this adapter cable with its inverse counterpart (AK 2U/SU: 2 x XLR-3F to XLR-5M) and an XLR-5 extension cable makes it possible to use just one cable for a stereo setup.
In the Box Bundle Items 2 x CCM4 LG Cardioid Compact Microphone rvdzutbbcdwuwysyrevwrbuq - SGC Miniature Stand Mount with Swivel
WSR ORTF LU Basket-Type Windscreen & ORTF Stereo Mounting Bar - STCg Stereo Mounting Bar for ORTF Microphone System
- STC22g Stereo Mounting Bar for ORTF Microphone System
KS 10 U XLR-5 Stereo Microphone Cable (32.8') rvdzutbbcdwuwysyrevwrbuq AK SU/2U Cable for Stereo Microphones Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps ORTF Stereo Outdoor Set CCM 4 Lg Condenser Microphones with Basket-Type Windscreen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CCM4 LG Cardioid Compact Microphone
| | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 20 kHz | | Signal to Noise Ratio | 79 dB A-Weighted | | Equivalent Noise Level | 15 dB A-Weighted | | Maximum SPL | 132 dB SPL Peak | | THD | 0.5% | | Impedance | 90 Ohms | | Sensitivity | 13 mV/Pa | | | | Output Connectors | 1 x 3-Pin LEMO K 5 LU Lemo 3-Pin to XLR 3-Pin cable included | | Cable Length | 16.40' / 5 m | | Operating Voltage | 48 V Will run on either standard 12 V or standard 48 V power only (not between voltages) | | Length | 2.28" / 58 mm | | Diameter | 0.79" / 20 mm | | Weight | 1.52 oz / 43 g | | | | Box Dimensions (LxWxH) | 7.48 x 6.299 x 2.52" | - WSR ORTF LU Basket-Type Windscreen & ORTF Stereo Mounting Bar
| Outer Diameter | 5.9" / 150 mm | | Length | 12.2" / 310 mm | | Outputs | 1 x 5-Pin XLR Male | | Mounting Thread | 3/8"-16 Female | - KS 10 U XLR-5 Stereo Microphone Cable (32.8')
| Length | 32.8' (10.0 m) | | Diameter | 0.1" (4.4 mm) | - AK SU/2U Cable for Stereo Microphones
| Color Code | Channel I: yellow, Channel II: red | | Input | XLR-5F | | Output | 2 × XLR-3M | | Length | 2 × 1.6' (0.5 m) | | | | Box Dimensions (LxWxH) | 6.5 x 4.0 x 1.0" |
