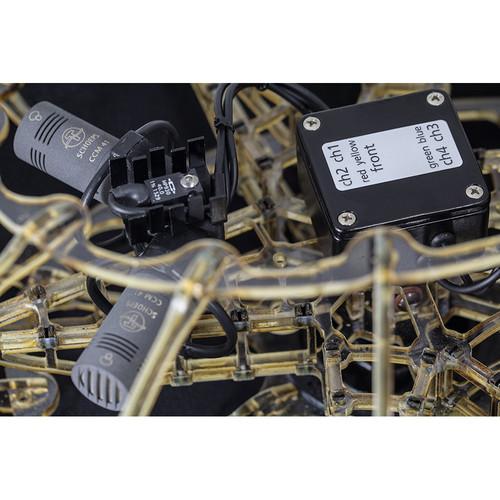

Product description The Schoeps ORTF Surround Outdoor Set is a quartet of Schoeps condenser microphones with a heated windscreen system designed for ORTF surround recording of instruments and ambience indoors or outdoors in windy conditions. It delivers accurate 360° imaging and spatialization along with enhanced channel separation. It includes four CCM 41 Lg supercardioid mics, a heated basket-type windscreen system with a fur cover, an ORTF surround mic mounting bar, a multi-pin extension cable, and a break-out cable that converts the multi-pin extension to four XLR 3-pin jacks.
The microphones boast wide frequency responses, excellent off-axis rejection, and compact bodies. The included windshield is acoustically transparent and offers significant vibration isolation and wind-noise reduction. Its internal heating system prevents frigid temperatures from impacting microphone performance.An integrated cable system merges the individual mic outputs to a multi-pin jack. Connect the multi-pin output to the supplied extension and breakout cable, which converts the multi-pin plug to four standard XLR 3-pin connectors. From there, you can easily route signal to your preferred mic preamps. - CCM41 LG Supercardioid Compact Microphone The Schoeps CCM41 LG is a miniature supercardioid microphone with detachable cable. The design is a direct result of the demand for a compact capsule with the pick up of a shotgun microphone.Off-axis sound is attenuated more effectively than that of a traditional cardioid polar pattern, and its frequency response is well suited for natural reproduction of vocals and instruments. The CCM 41 has slightly more roll-off at the low end due to the gradient effect, and is well suited as a "spot" microphone for orchestras, choirs, ambiance and more.
- Supercardioid with highly consistent directionality throughout its frequency range
- Ideally suited for music and speech
- High directivity, comparable to that of a short "shotgun" microphone up through midrange frequencies
- Often preferred for use in film sound recording and as a spot microphone in orchestras
- WSC ORTF Surround Basket-Type Windscreen with Fur Overcoat The WSC ORTF Surround Basket-Type Windscreen with Fur Overcoat from Schoeps covers the entire ORTF Surround arrangement (not included). The basket-type windscreen comes with an elastic suspension and fur-like overcoat. The entire ORTF Surround arrangement can be conveniently mounted in the single elastic suspension, and share a single windscreen.
- For use with the ORTF Surround Outdoor set
- For use with four Schoeps CCM 41 L supercardioids (sold separately)
- Used in sporting events, film sound, and more
- AK SURROUND M/4U Miniature Multi-Pin to XLR-3 Adapter Cable The AK SURROUND M/4U Miniature Multi-Pin to XLR-3 Adapter Cable from Schoeps is well suited for ORTF Surround recordings. This adapter cable splits the K Surround x 5M cable with multi-pin connectors to four XLR-3 connectors.
- K Surround 20 - 20 Meter Extension Cable for ORTF Surround Bar LM and AK Surround M/4U The Schoeps K Surround 20 is designed to connect the company's ORTF Surround Bar LM to the company's AK Surround M/4U breakout cable (4x XLR 3-pin male). The ORTF surround recording method is designed to pick up surround ambience. The microphone arrangement and its sonic characteristics are similar to those of the IRT cross method, with both the 360° imaging and the spatial impression optimized.
In the Box Bundle Items 4 x CCM41 LG Supercardioid Compact Microphone eyfdawvw WSC ORTF Surround Basket-Type Windscreen with Fur Overcoat AK SURROUND M/4U Miniature Multi-Pin to XLR-3 Adapter Cable K Surround 20 - 20 Meter Extension Cable for ORTF Surround Bar LM and AK Surround M/4U eyfdawvw
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps ORTF Surround Outdoor Set Cardioid Condenser Microphone Quartet with Heated Windshield System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CCM41 LG Supercardioid Compact Microphone
| Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 40Hz to 20kHz | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | 79 dB-A | | Maximum Input Sound Level | 132dB | | Power Requirements | 12V | | Output Impedance | Minimum Load: 600 Ohms
(If a lower load impedance is used, the main effect will be to reduce the maximum output level of the microphone.) | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 2.28 x 1.81" (58 x 46mm) (Length x Diameter)
K 5 LU Cable Length: 16.40 feet (5m) | | Weight | 43 g (1.51 oz) | - WSC ORTF Surround Basket-Type Windscreen with Fur Overcoat
| Dimensions | 17.3 x 14.1 x 8.2" (440.0 x 360.0 x 210.0 mm) | | Weight | Setup with elastic suspension only: 14.4 oz (410 g)
Windscreen: 21.1 oz (600.0 g)
Windscreen and fur: 29.9 oz (850.0 g) | - AK SURROUND M/4U Miniature Multi-Pin to XLR-3 Adapter Cable
| Length | 16.4' (5.0 m) | | Input | 19 pins | | Output | 4 x XLR-3M (AK Surround M/4U) yellow = channel 1, red = channel 2, blue = channel 3, green = channel 4 | - K Surround 20 - 20 Meter Extension Cable for ORTF Surround Bar LM and AK Surround M/4U
| Length | 65.6' (20.0 m) | | Weight | Not specified by the manufacturer |
