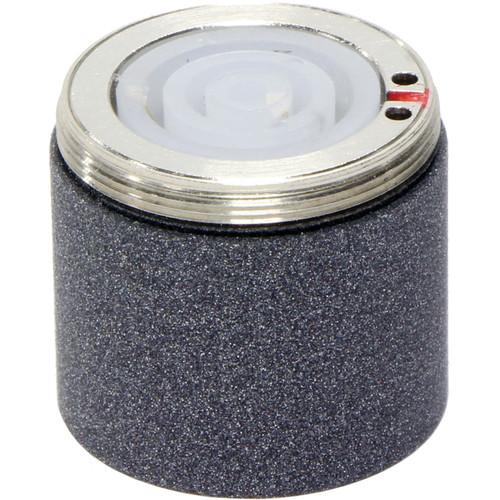

User Manual for Schoeps PAD 10G 10 dB Pad Click to enlarge the picture
Contents of the user manual for the Schoeps PAD 10G 10 dB Pad
- Product category: Modular Microphone Components Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Modular Microphone Components
|
User manual for the Schoeps PAD 10G 10 dB Pad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The matte gray version of the Schoeps PAD 10G 10 dB Pad is designed to attenuate signal ahead of CMC microphone amplifiers in the Collete modular system. Under extreme conditions, these microphone systems can be overdriven by very high sound-pressure levels. Here the limiting factor is not the capsule but the microphone amplifier.
The overload point ranges from 128 to 135 dB SPL, depending on the capsule and the amplifier type (e.g. 5 dB lower with the +5 dB version). In these situations, the signal level at the amplifier input may be attenuated by inserting a pad between the capsule and the microphone amplifier or the active accessories.
The use of two pads on one microphone will result in an attenuation of 15 dB due to the capacitive principle of operation. If the level must be attenuated by a full 20 dB, the 20 dB pad version should be used. In the Box Schoeps PAD 10G 10 dB Pad (Matte Gray) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps PAD 10G 10 dB Pad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps PAD 10G Specs | Compatibility | Collete Modular CMC Microphone System | | Attenuation | 10 dB | | Length | 0.71" (18.00 mm) | | Diameter | 0.79" (20.00 mm) | | Weight | 0.49 oz (14.00 g) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
