Schoeps RC Set Singer Colette Condenser

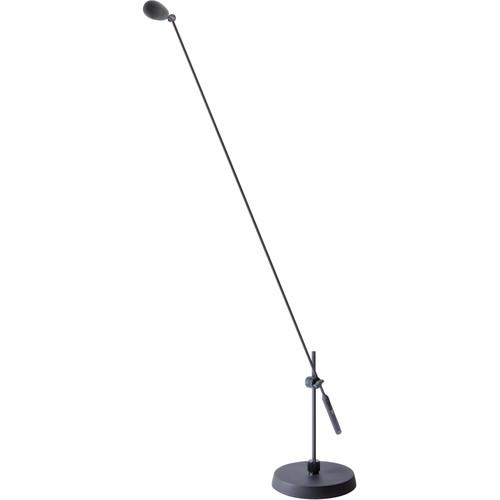

User Manual for Schoeps RC Set Singer Colette Condenser Microphone with Stand and Windscreen for Singers

• Product category: Small Diaphragm Condenser Schoeps
• Brand: Schoeps
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Schoeps Small Diaphragm Condenser

Product description

• MK4 Cardioid Capsule The Schoeps MK4 is part of the Colette series of modular capsules designed for use with the CMC preamplifiers. The cardioid polar pattern results in maximum rejection of rear incidental audio signal, eliminating off-axis noise and feedback. The cardioid pattern allows microphone placement to occur farther from the sound source than a pressure transducer of equivalent sensitivity. The MK4 is ideal for both speech and music capturing, resulting in rich detail without coloration. The MK4 is also a viable solution for X/Y or Mid-Side stereo recording.
  Cardioid Polar Pattern
  • The cardioid pattern effectively rejects rear and off-axis audio signal resulting in greater signal to noise ratio and feedback rejection.
  Excellent Directional Response
  • The cardioid characteristic allows the MK4 to be placed at further proximities from the signal source without degradation.
  Wide Linear Frequency Response
  • The wide frequency response ensures accurate detail regardless of the source signal.
• CMC6-U 12-48 Volt Phantom Power Supply The Schoeps CMC6-U is a balanced output stage and +12 to +48V phantom power supply for the Schoeps Colette series modular capsules. The transformer-less output stage ensures low-noise and pristine audio reproduction throughout. The CMC6-U is terminated with a standard balanced 3-pin XLR connection for use with standard microphone inputs and preamplifiers.
• RC1200 Active Tube and RG8 Swivel Joint for Colette Series Capsules The Schoeps RC1200 is an active tube mount designed for the Colette series microphone capsules. The capsule angle, relative to the tube, may be positioned between 0 and 120 degrees. The included RG8 swivel joint mounts the tube to a vertical microphone stand and base (not included), enabling easy height and angle adjustment.CMC capsules simply screw onto the top of the tube and active electronics provide a pristine signal path throughout the tube and out the XLR connector at the base. The entire mount provides length and flexible positioning for a variety of applications.
• STR350G Vertical Support Rod The Schoeps STR350G Vertical Support Rod is a microphone mount extension rod that may be used with the BF 250 floor stand, or attached to additional support rods for added length and mounting flexibility. The rod features 3/8"-27 threads on each end and measures 13.77-inches (350mm) in length.
• BF250 Heavy Floor Stand The Schoeps BF250 Heavy Floor Stand firmly holds an STR vertical support rod for microphones. The special chuck, SPV 12-3/8, creates a quick connect and disconnect system which lets you plug into the chuck and tighten it by hand.
  Quick Connections
  • The special chuck lets you securely connect and disconnect your SPV 12-3/8ths rod with a twist of your hand.
  Weighted Base
  • The heavy weighted floor stand holds your microphone firmly in place during your performance.
  Black Textured Finish
  • The black textured finish is durable and helps your mic stand place the focus where it belongs, on the performance.
• B-5D Hollow Foam Windscreen - (Gray) Schoeps Microphones has created the B-5D Windscreen in grey is best when used on pressure-gradient transducers in light wind and as a close-speech guard. The foam encloses an air chamber around the microphone capsule, similar to a basket windscreen. Although not designed for it, it works hand in hand with the MK 4V, MK 41V or MK 4VXS microphone capsules and the corresponding CCM Compact Condenser Microphones. But this microphone cannot be used with MK 6 or MK 8 capsules, or the corresponding CCM Compact Microphones.
  Color and Texture
  • This windscreen is a neutral gray with an attractive porous, velvet-like surface treatment.

• 2 Year Warranty

• SG20 Stand Adaptor

• Polished Wood Case

• Limited 2-Year Warranty

• RC1200 Active Tube

• RG8 Swivel Mount

• 1 Year Warranty

• 1 Year Warranty

• SPV 12-3/8ths Chuck

• Product Instructions

• 2-Year Warranty

• Product Instructions

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MK4 Cardioid Capsule

  Transducer	Condenser
  Polar Pattern	Cardioid (MK4)
  Frequency Response	40Hz to 20KHz (MK4)
  Dynamic Range (Typical)	not specified by manufacturer
  Signal-to-Noise Ratio	79 dB-A (MK4)
  Maximum Input Sound Level	132dB (MK4)
  Power Requirements	12V - 48V Phantom Power (CMC6)
  Output Impedance	Minimum Load: 600 Ohms (CMC6) (If a lower load impedance is used, the main effect will be to reduce the maximum output level of the microphone.)
  Output Connectors	3-pin XLR (CMC6)
  Pad	No
  Low Frequency Roll-Off	No
  Dimensions	4.57 x .78" (116 x 20mm) (Length x Diameter) (with CMC6)
  Weight	68g (with CMC6)

  Box Dimensions (LxWxH)	8.0 x 5.0 x 1.0"

• CMC6-U 12-48 Volt Phantom Power Supply

  Box Dimensions (LxWxH)	7.5 x 4.4 x 2.2"

• RC1200 Active Tube and RG8 Swivel Joint for Colette Series Capsules

  Length

  47.24" (1200mm)

  Box Dimensions (LxWxH)	49.0 x 1.0 x 1.0"

• STR350G Vertical Support Rod

  Box Dimensions (LxWxH)	15.0 x 1.0 x 0.2"

• BF250 Heavy Floor Stand

  Base Type	Round
  Base Dimensions	9.8 x 9.8" / 24.9 x 24.9 cm

  Box Dimensions (LxWxH)	10.0 x 10.0 x 5.0"

• B-5D Hollow Foam Windscreen - (Gray)

  Material	Foam
  Outer Diameter	2" / 50 mm
  Length	2.75" / 70 mm

  Box Dimensions (LxWxH)	2.6 x 2.2 x 2.0"
