User Manual for Schoeps SuperCMIT Digital Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Schoeps SuperCMIT Digital Shotgun Microphone
- Product category: Shotgun Microphones Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Shotgun Microphones
 |
User manual for the Schoeps SuperCMIT Digital Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|

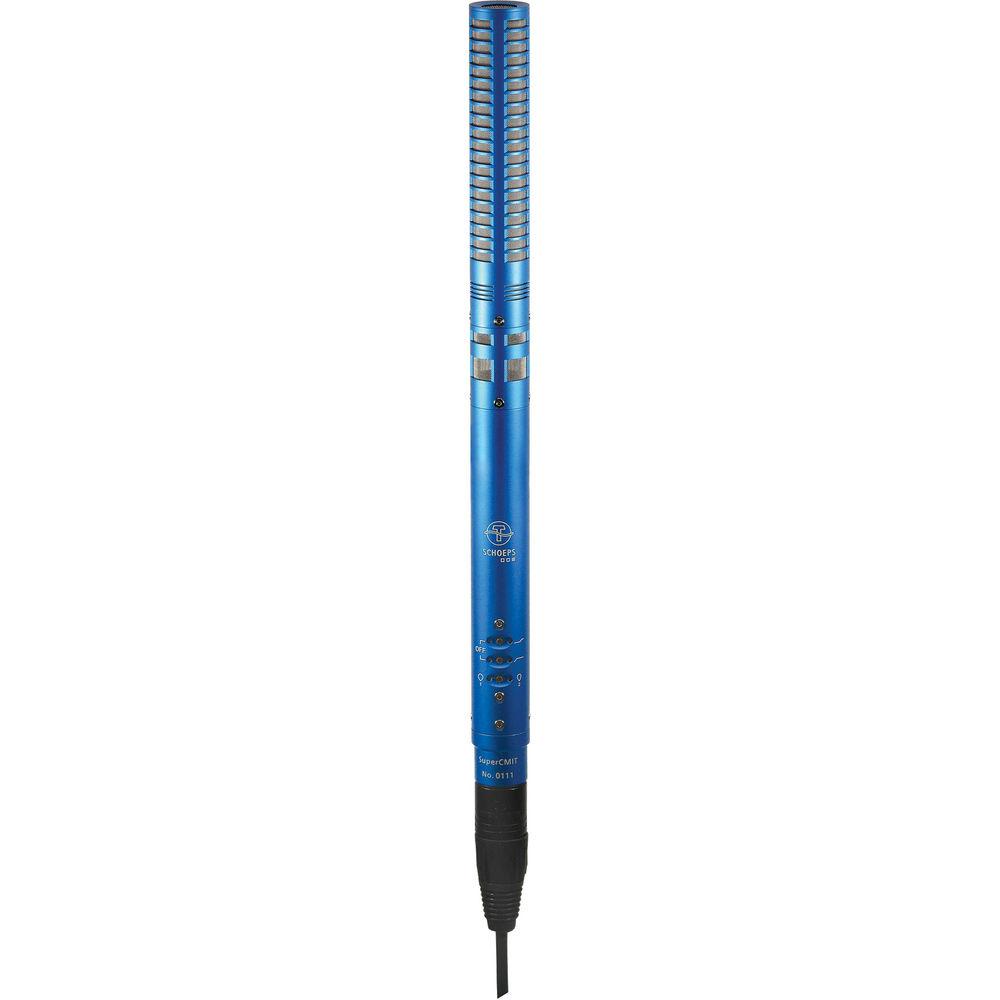

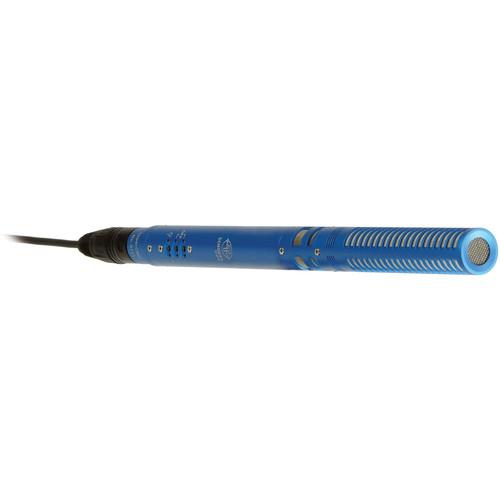

Product description The Schoeps SuperCMIT Digital Shotgun Microphone incorporates a unique design and approach to minimizing extraneous noise, increasing range and retaining the transparency and integrity of the source audio. The SuperCMIT features a dual output signal, coupled with digital signal processing for excellent noise diffusion and pristine transparency.In addition the microphone features a low-frequency roll-off switch, high frequency gain switch and increased directivity switch for maximizing range. The Schoeps SuperCMIT is at home on a boompole or pistol grip mount, and is very well suited for ENG / EFP, broadcast applications, audio for video and motion picture, sound design applications and more. - New type of digital shotgun microphone with increased directivity, based on Shoeps' extremely successful analog model CMIT 5
- Diffuse sound is suppressed to an extraordinary degree
- Completely new operating principle with two transducers
- Uses digital signal processing (DSP) algorithms from Illusonic
- Two-channel output, with SuperCMIT signal in channel 1 and (direct, single-transducer) CMIT signal in channel 2
- Schoeps sound quality: transparent sound

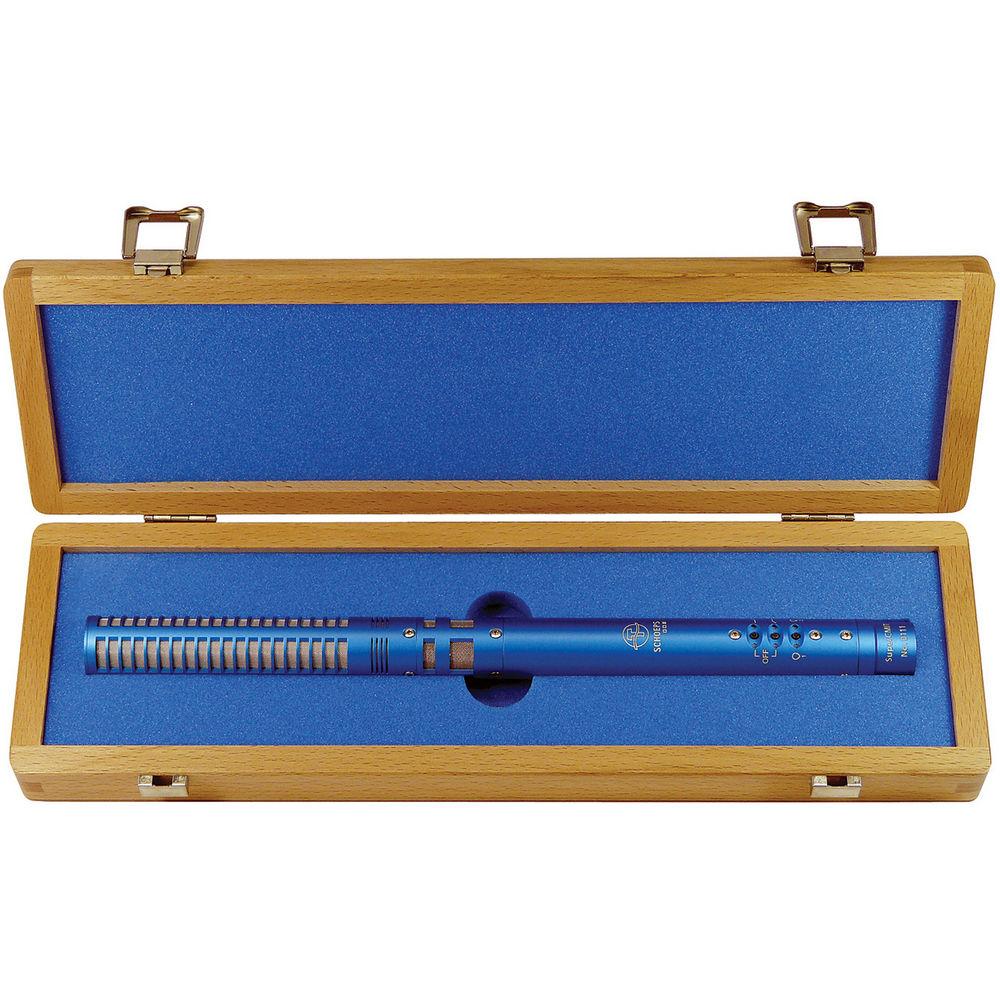

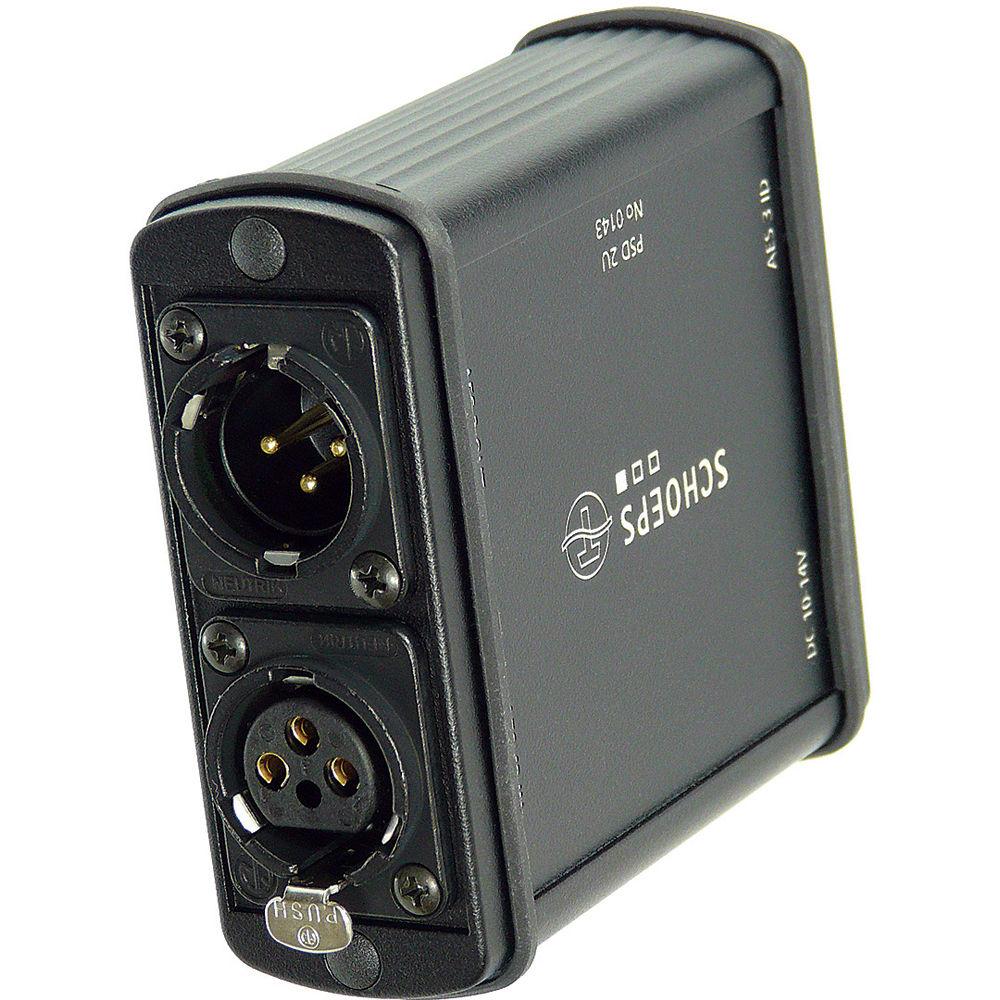

In the Box Schoeps SuperCMIT Digital Shotgun Microphone (With PSD 2 U Power Supply) PSD 2 U Power Supply Foam Windscreen SG 20 Swivel Stand Clamp Limited 1-Year Warranty User Manual PDF 929.7kbtfxadysrcsycusarbvft Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps SuperCMIT Digital Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps SuperCMIT 2U Specs | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Response | Not Specified By Manufacturer | | Signal-to-Noise Ratio | Channel 1: 14dB-A, RMS, 26dB CCIR
Channel 2: 16dB-A, RMS, 28dB CCIR | | Maximum Input Sound Level | 125dB | | Power Requirements | 10V Digital Phantom Power
Includes PSD 2 U Power Supply | | Output Connectors | 3-pin XLR | | Low Frequency Roll-Off | 80Hz with 18dB/oct
5dB Lift @ 10kHz (Shelving) | | Dimensions (LxDiameter) | 11 x 0.83" (280 x 21mm) | | Weight | 4 oz (112g) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 12.3 x 10.6 x 6.6" |
