User Manual for Schoeps V4 UG Studio Vocal Microphone Click to enlarge the picture
Contents of the user manual for the Schoeps V4 UG Studio Vocal Microphone
- Product category: Large Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Large Diaphragm Condenser
 |
User manual for the Schoeps V4 UG Studio Vocal Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|

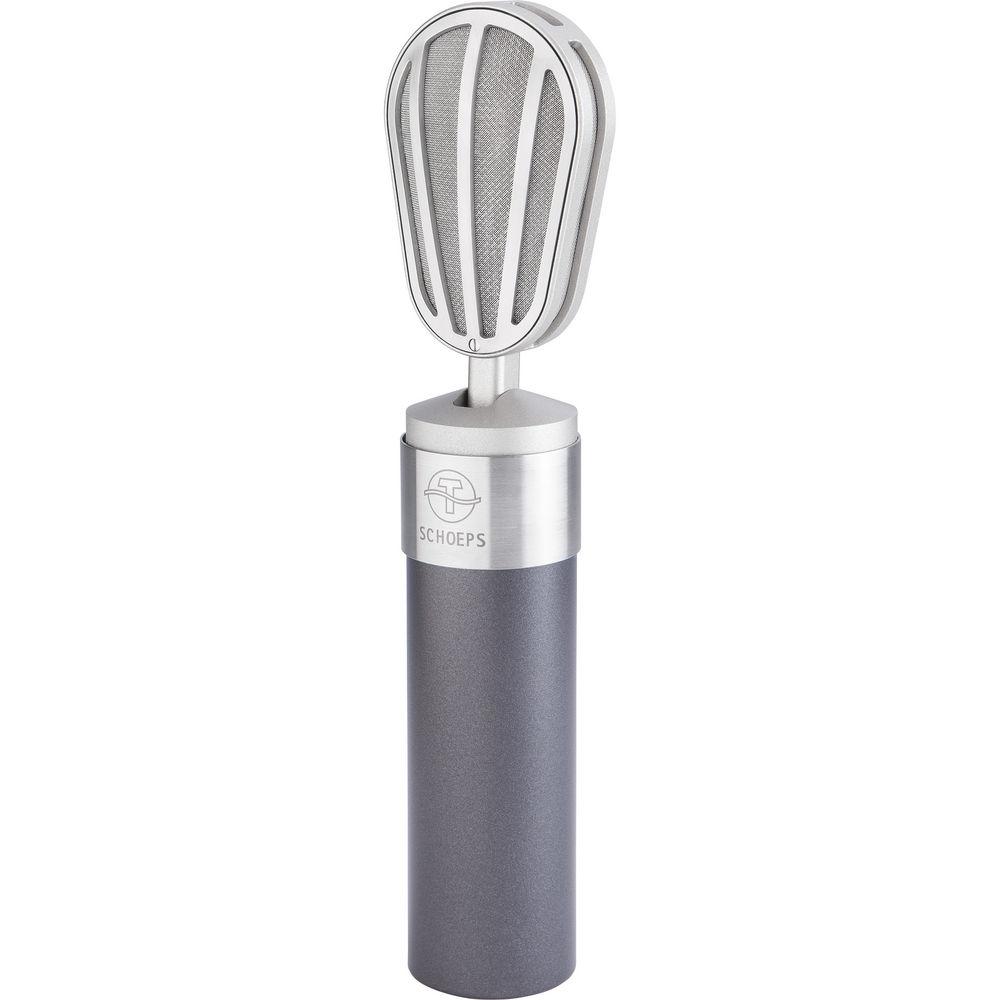

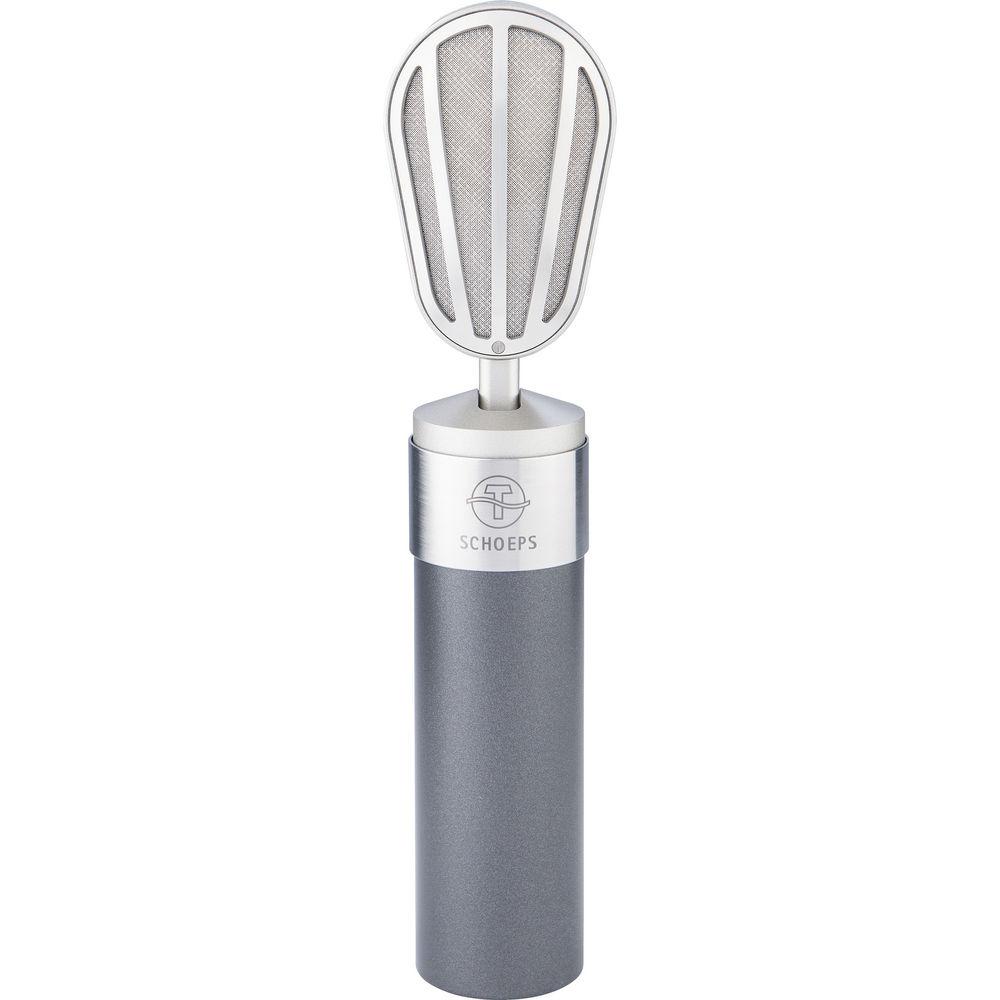

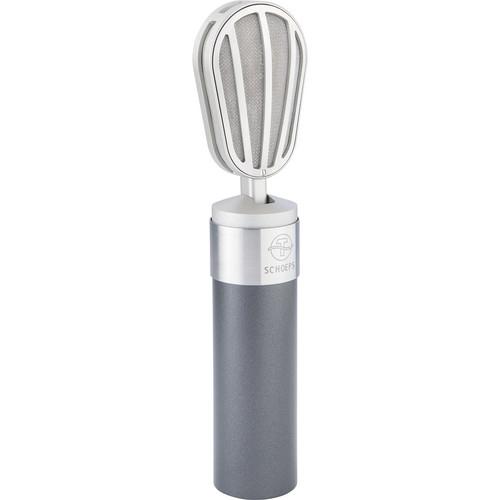

Product description The gray V4 UG Studio Vocal Microphone from Schoeps is a microphone that features a small-diaphragm capsule architecture with a beveled collar for controlling the polar response. It has a warm, clear sonic character with a smoothly rolled-off diffuse-field response. The capsule head has an adjustable tilt angle, while the optimal on-axis frequency response features a mild, high-frequency lift. At high frequencies, this studio vocal microphone delivers a smooth polar response with carefully controlled narrowing of the pattern and a diffuse-field response parallel to the 0° response with a gentle roll-off. The mic offers a high maximum sound-pressure level. General - Small-diaphragm capsule architecture with a beveled collar for controlling the polar response
- Warm, clear sonic character with a smoothly rolled-off diffuse-field response
- Capsule head with an adjustable tilt angle
- Optimal on-axis frequency response featuring a mild high-frequency lift
- Smooth polar response; carefully controlled narrowing of the pattern at high frequencies
- Diffuse-field response parallel to the 0° response, with a gentle roll-off at high frequencies
- Offers a high maximum sound-pressure level

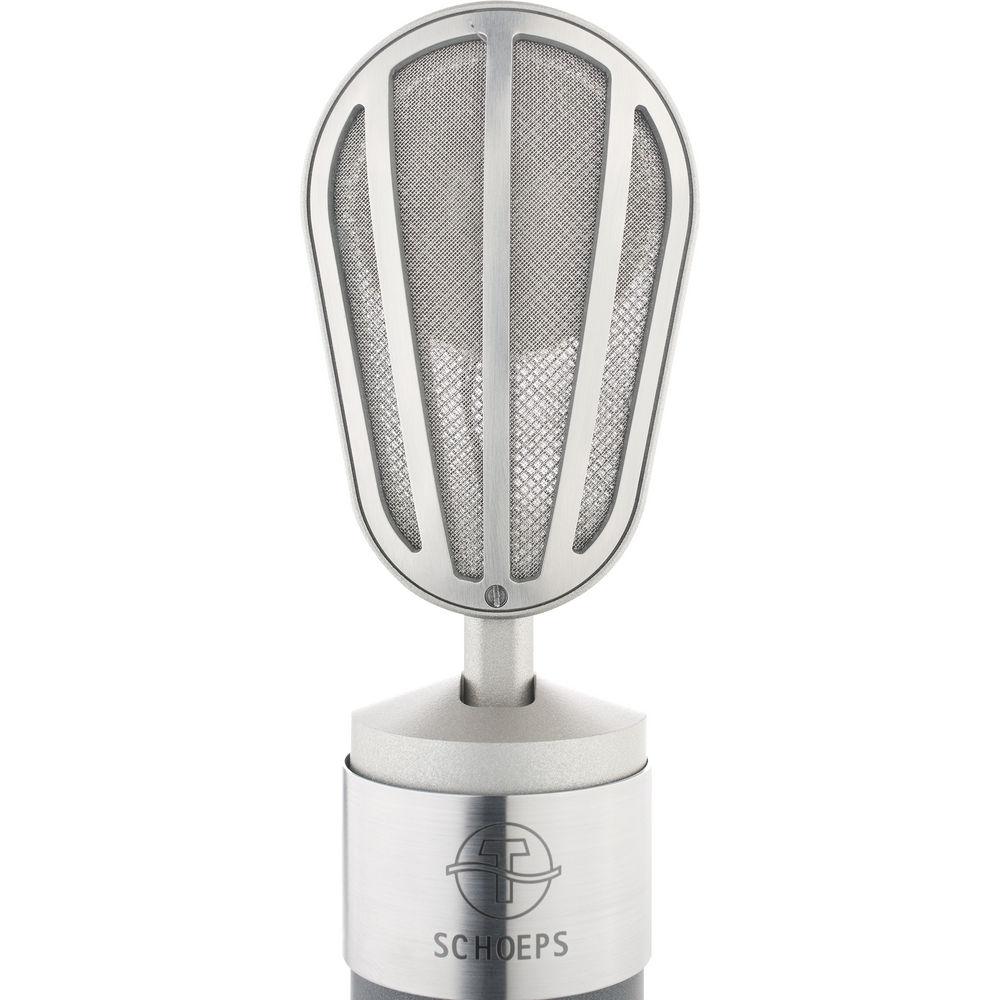

Capsule - A 33mm beveled collar causes the capsule's directivity to increase steadily and smoothly at high frequencies, as in a large-diaphragm microphone
- The acoustic qualities of a small-diaphragm capsule like smooth frequency and polar response are maintained
- The capsule is elastically suspended internally to reduce handling noise and other solid-borne sound
Electronics - Bridge-type balanced-output circuit
- Maximum sound pressure level of 144 dB SPL, corresponding to an output level of 4.8V
- Output stage is transformerless and free of coupling capacitors
- The resulting output impedance is low and constant with frequency, while the symmetry is high
- Symmetrical, balanced output; the entire audio circuit is symmetrical from the output of the FET onward
- High immunity to interference, with gapless shielding and a modern RFI filter at the output; good electromagnetic compatibility
In the Box Schoeps V4 UG Studio Vocal Microphone (Gray) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps V4 UG Studio Vocal Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps V4 Specs | | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 22 kHz | | Signal to Noise Ratio | 79 dB A-Weighted | | Equivalent Noise Level | 15 dB A-Weighted
25 dB CCIR | | Maximum SPL | 144 dB SPL | | THD | 0.5% | | Impedance | 970 Ohms | | Sensitivity | 16 mV/Pa | | | | Operating Current Consumption | 3.3 µA | | Operating Voltage | 48 V | | Length | 7.64" / 194 mm | | Diameter | 1.34" / 34 mm | | Weight | 0.66 lb / 302 g |
