User Manual for sE Electronics Cardioid Condenser Microphone with 20 dB Attenuation Pad Click to enlarge the picture
Contents of the user manual for the sE Electronics Cardioid Condenser Microphone with
- Product category: Large Diaphragm Condenser sE Electronics
- Brand: sE Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for sE Electronics Large Diaphragm Condenser
 |
User manual for the sE Electronics Cardioid Condenser Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any sE Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official sE Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a sE Electronics product will considerably shorten its lifespan!
|

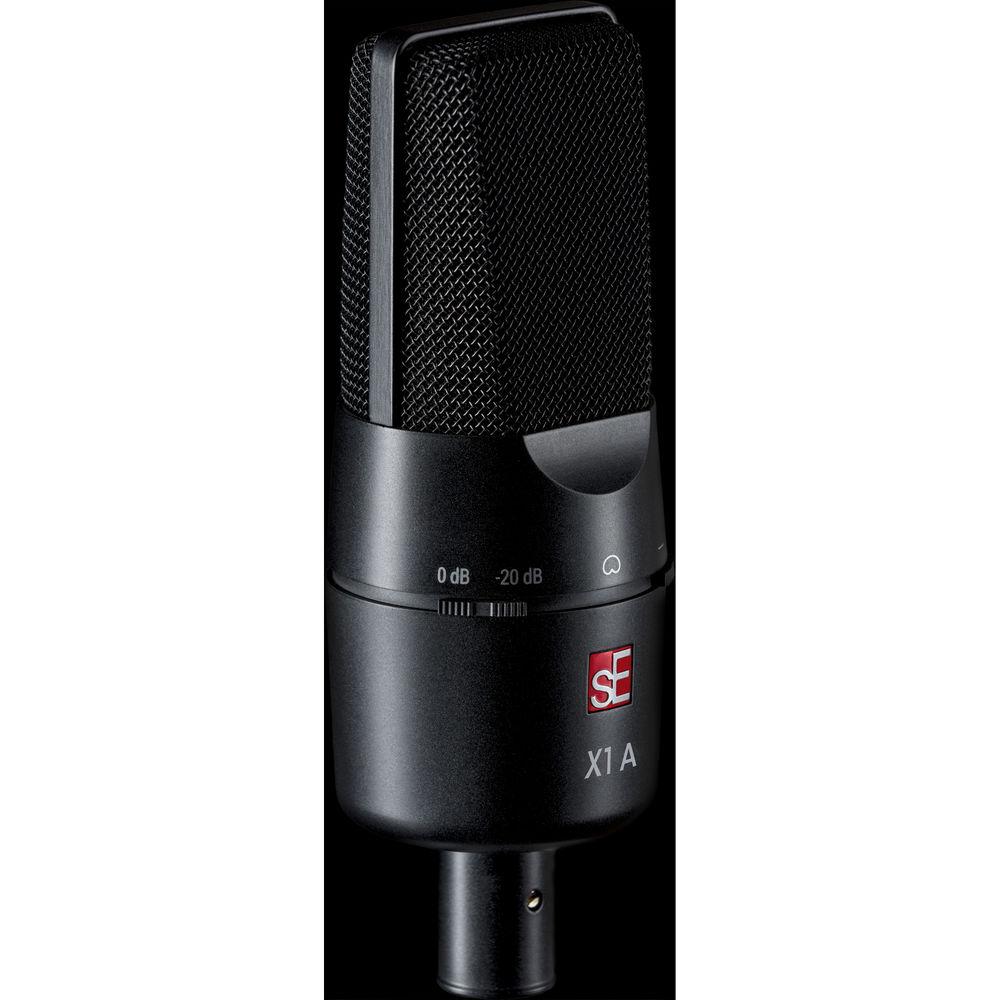

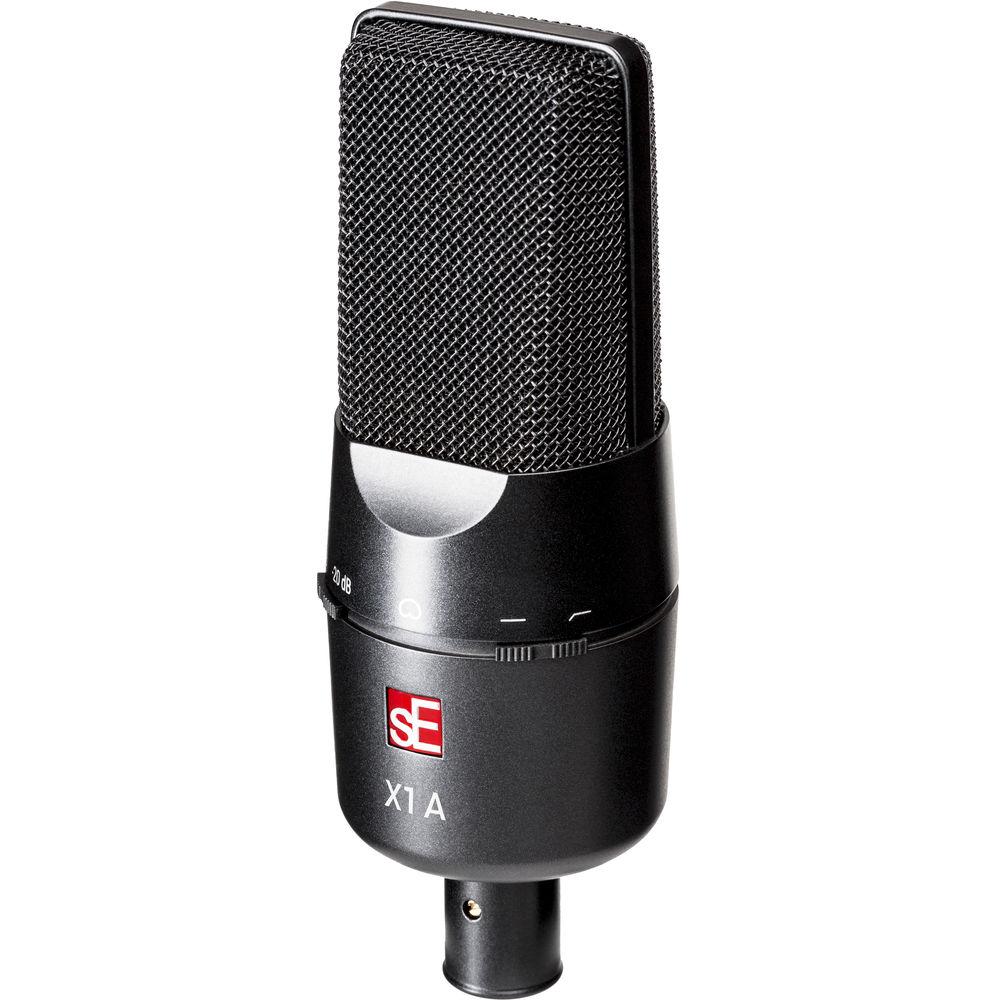

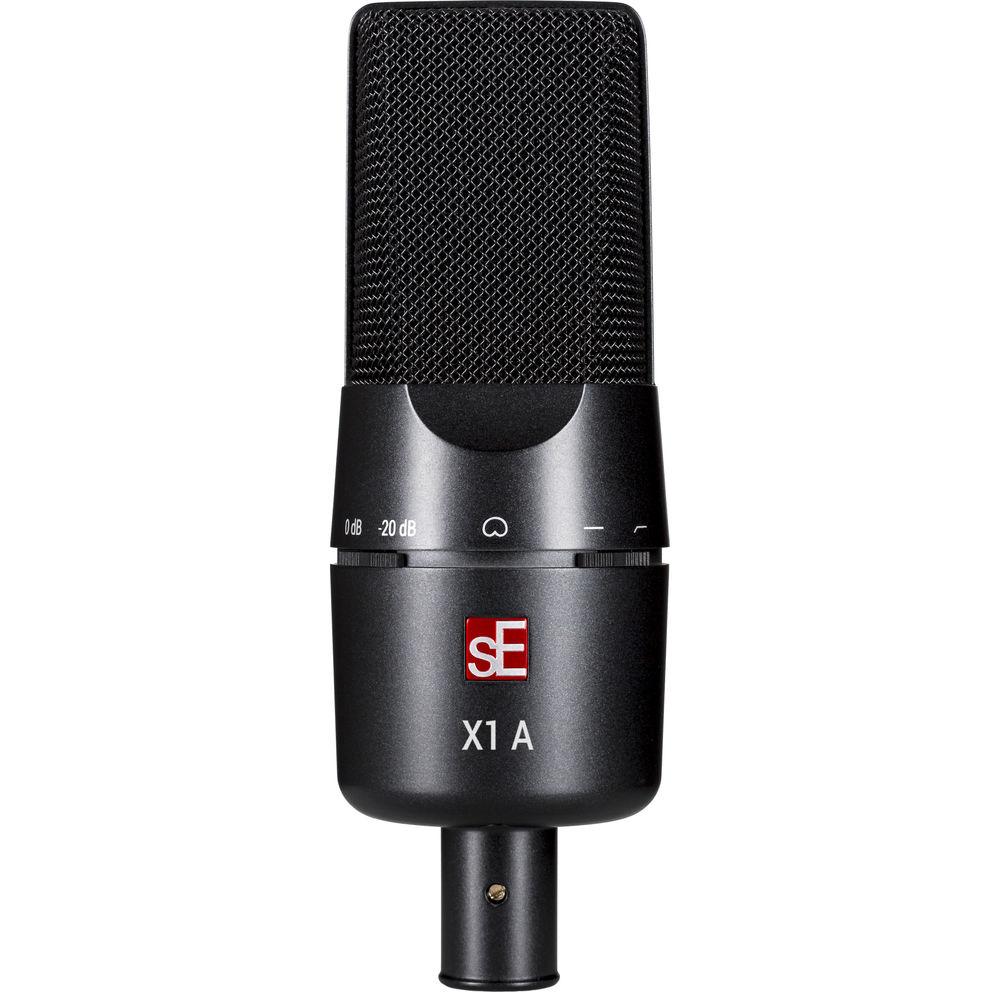

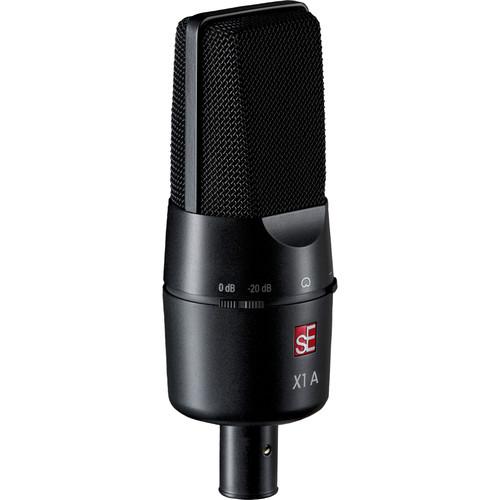

Product description The X1A Cardioid Condenser with 20 dB Attenuation Pad from sE Electronics is intended for a wide range of studio applications such as recording vocals, drums, acoustic instruments, and more. Thanks to its custom design and carefully selected capsule, it delivers pristine sound quality and an even, well-balanced frequency response. The electronics and the switchable attenuation pad ensure a high dynamic range, with high SPL (Sound Pressure Level) handling capability and extremely low-noise components. The switchable low-cut filter eliminates rumble or footfall noise, and can also compensate for an excess of bass frequencies caused by the proximity effect. This enables the microphone to close-mic many instruments including electric guitar speaker cabinets, brass instruments, and drums. - All-metal chassis provides efficient rejection of any electrical interference and noise

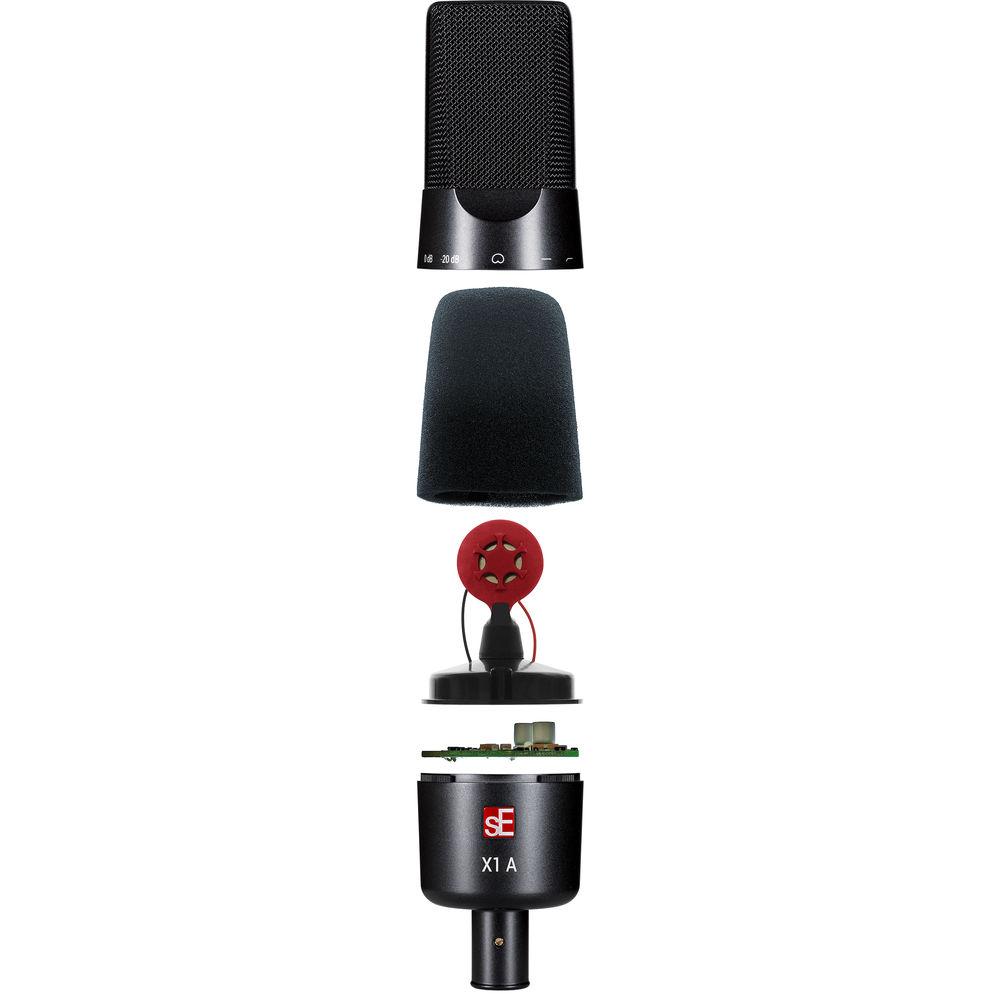

- Integrated windscreen eliminates the need for an external pop filter, and provides an extra layer of safety and security for the all-important capsule

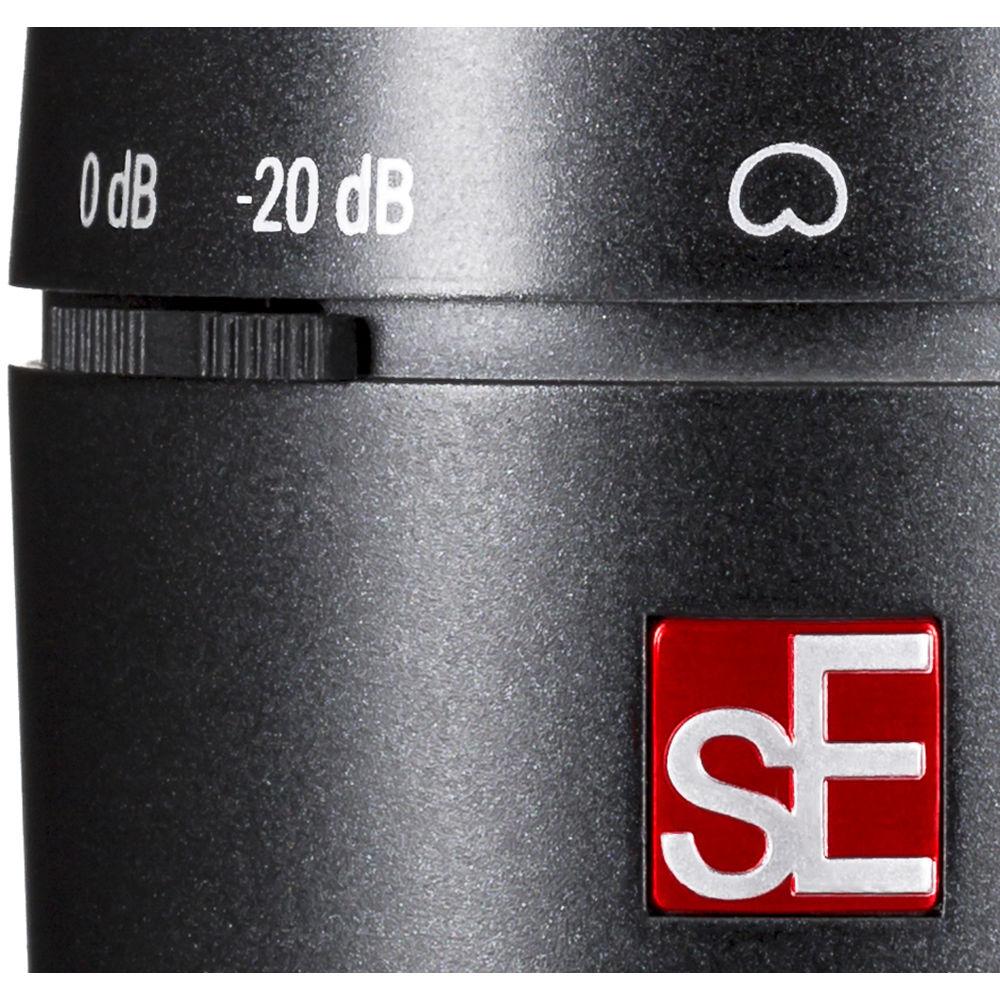

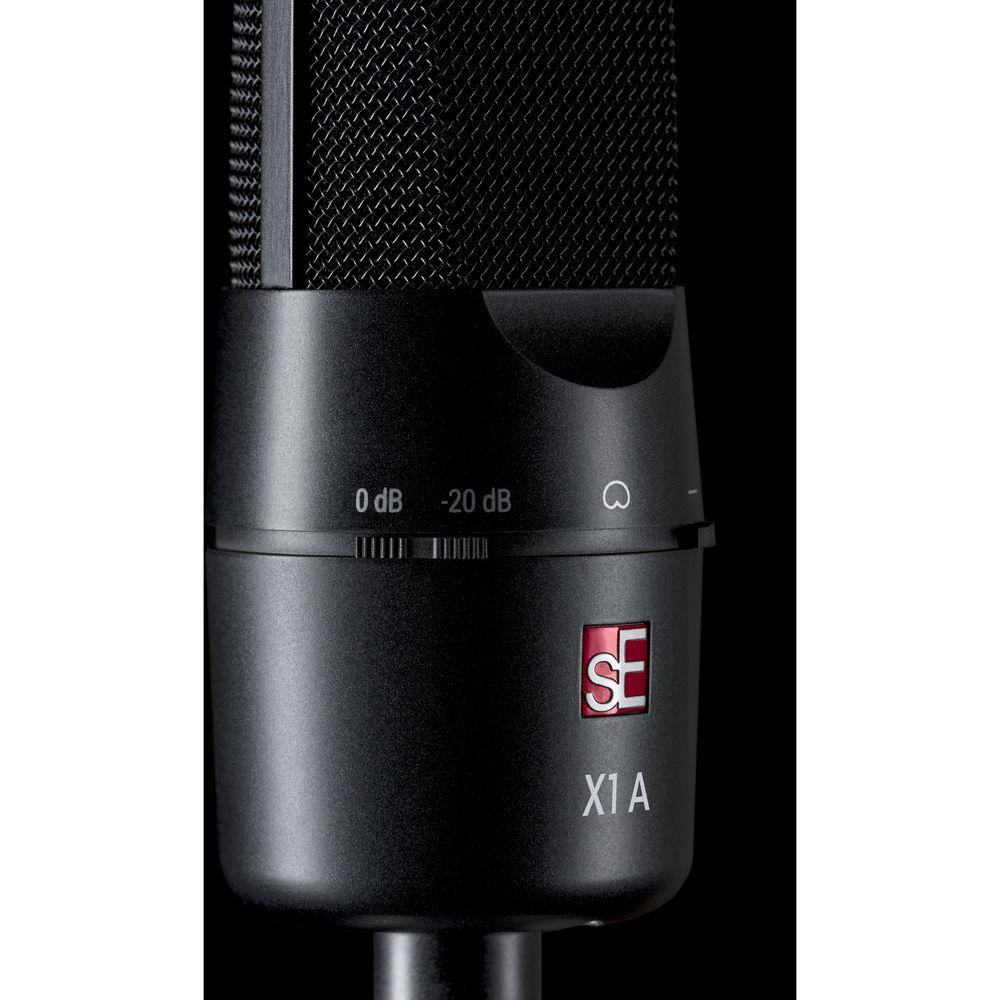

- -20 dB pad switch on the left provides extended dynamic range, enabling a wide range of applications and close-mic techniques

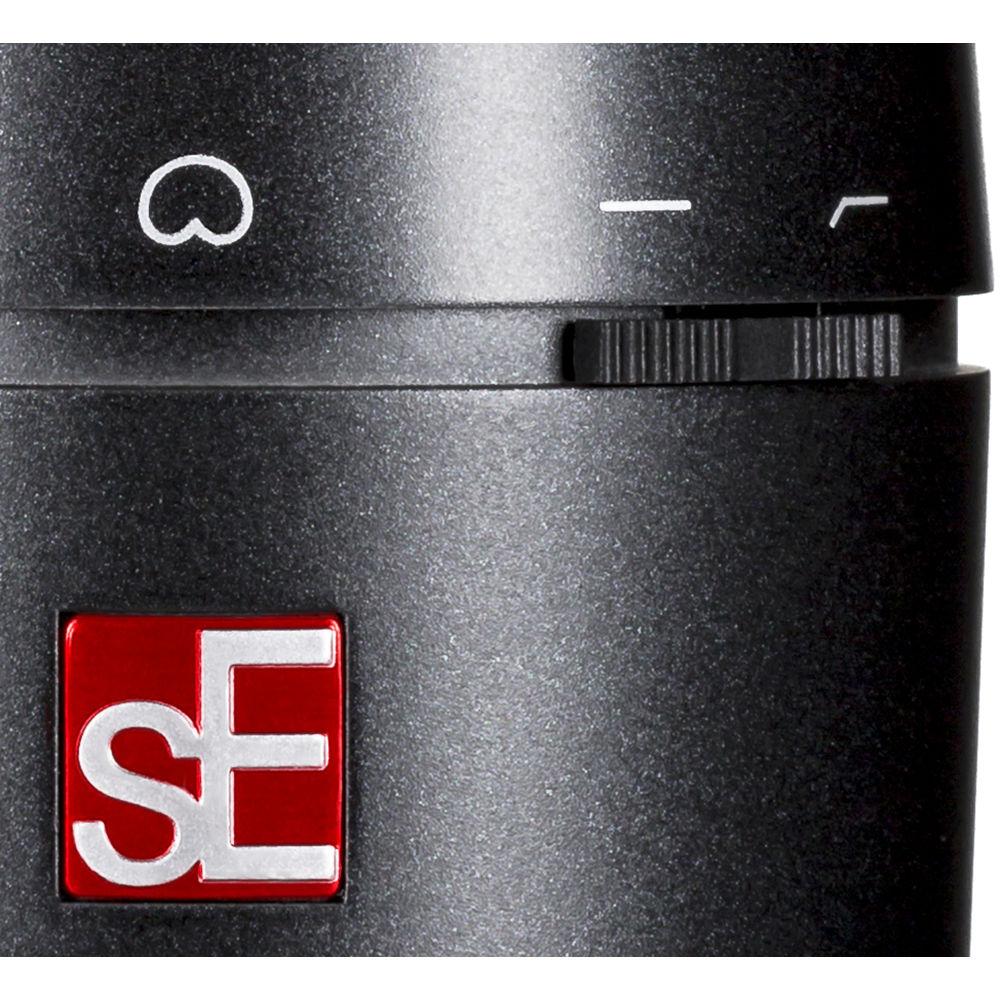

- On the right, the 100 Hz low-cut switch helps eliminate low-frequency rumble or footfall noise, and compensates for excessive bass with close-mic techniques (proximity effect)
- Gold-plated 3-pin XLR connector ensures a loss-free, reliable signal connection

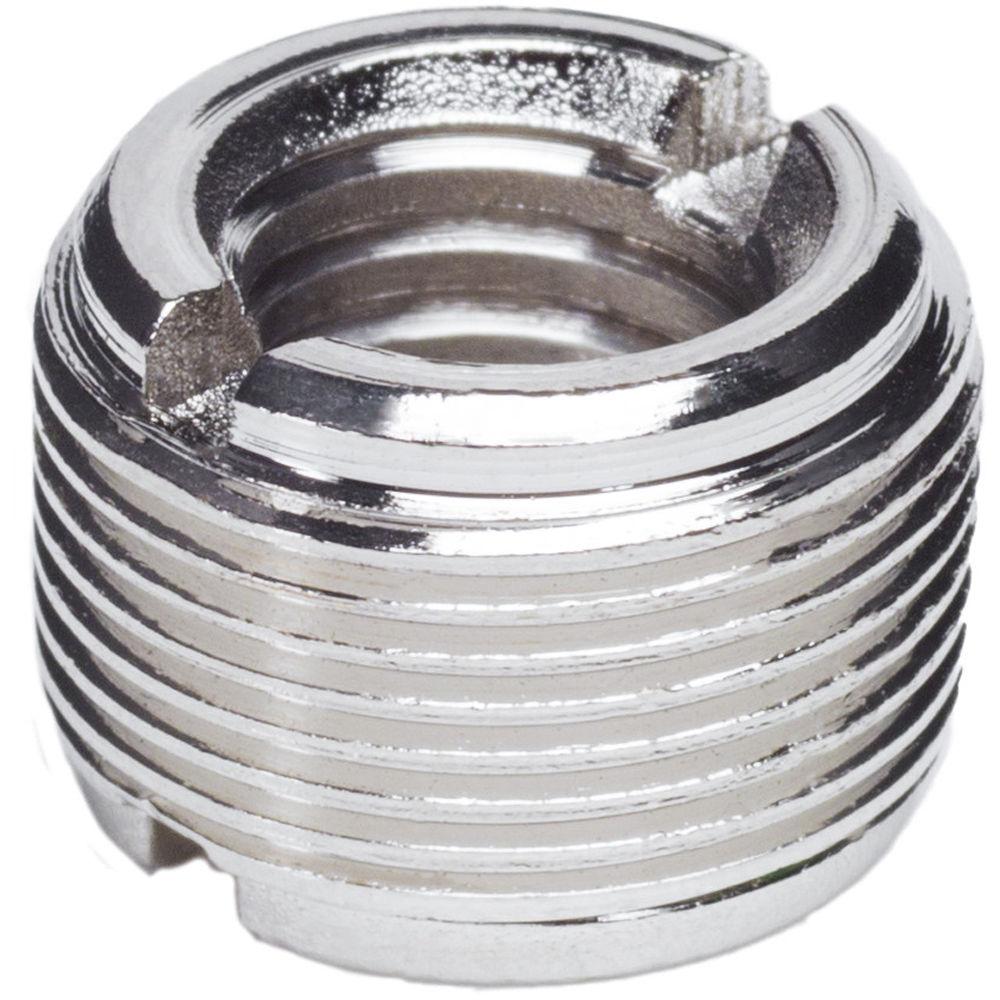

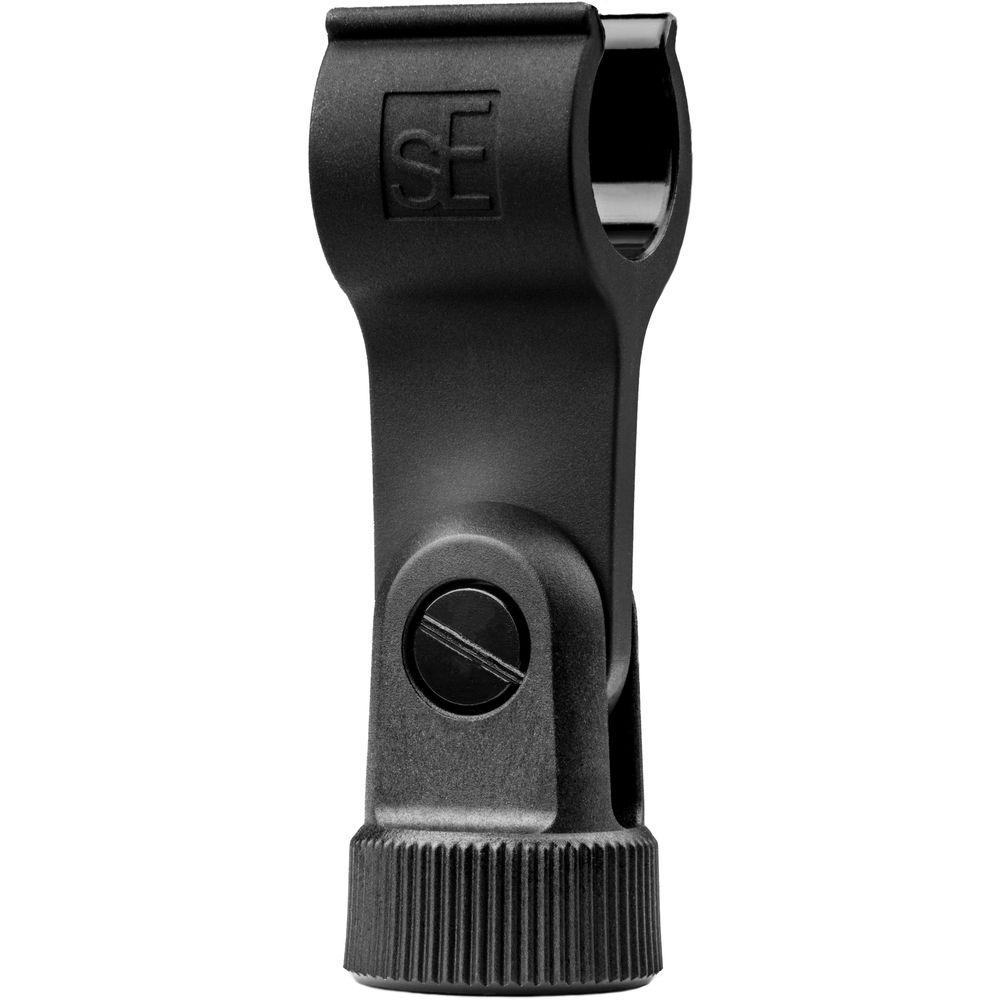

UPC: 819032011171 In the Box sE Electronics Cardioid Condenser Microphone with 20 dB Attenuation Pad Swivel Mic Clip Mic-Stand Thread Adapter Limited 2-Year Warranty (Extendable to 3-Years upon Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the sE Electronics Cardioid Condenser Microphone with 20 dB Attenuation Pad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterssE Electronics X1A Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 78 dB A-Weighted | | Equivalent Noise Level | Cardioid: 16 dB A-Weighted | | Maximum SPL | Cardioid: 130 dB SPL | | Pad | -20 dB | | THD | 0.5% | | Impedance | Cardioid: 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | Cardioid: 20 mV/Pa | | Low-Cut Filter | 0 to 6@ 100 Hz | | Dynamic Range | Cardioid: 114 dB
Cardioid: 134 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.0 mA | | Operating Voltage | 48 V | | Length | 6.65" / 16.89 cm | | Diameter | 2.28" / 57.91 mm | | Weight | 13.85 oz / 393 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 10.5 x 5.0 x 4.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
