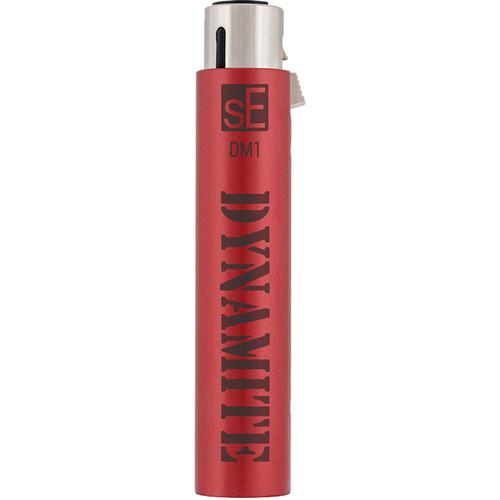

User Manual for sE Electronics DM1 Dynamite Active Inline Microphone Preamplifier Click to enlarge the picture
Contents of the user manual for the sE Electronics DM1 Dynamite Active Inline
- Product category: In-Line Mic Accessories sE Electronics
- Brand: sE Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for sE Electronics In-Line Mic Accessories
 |
User manual for the sE Electronics DM1 Dynamite Active Inline contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any sE Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official sE Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a sE Electronics product will considerably shorten its lifespan!
|
Product description - The DM1 DYNAMITE Active Inline Preamp

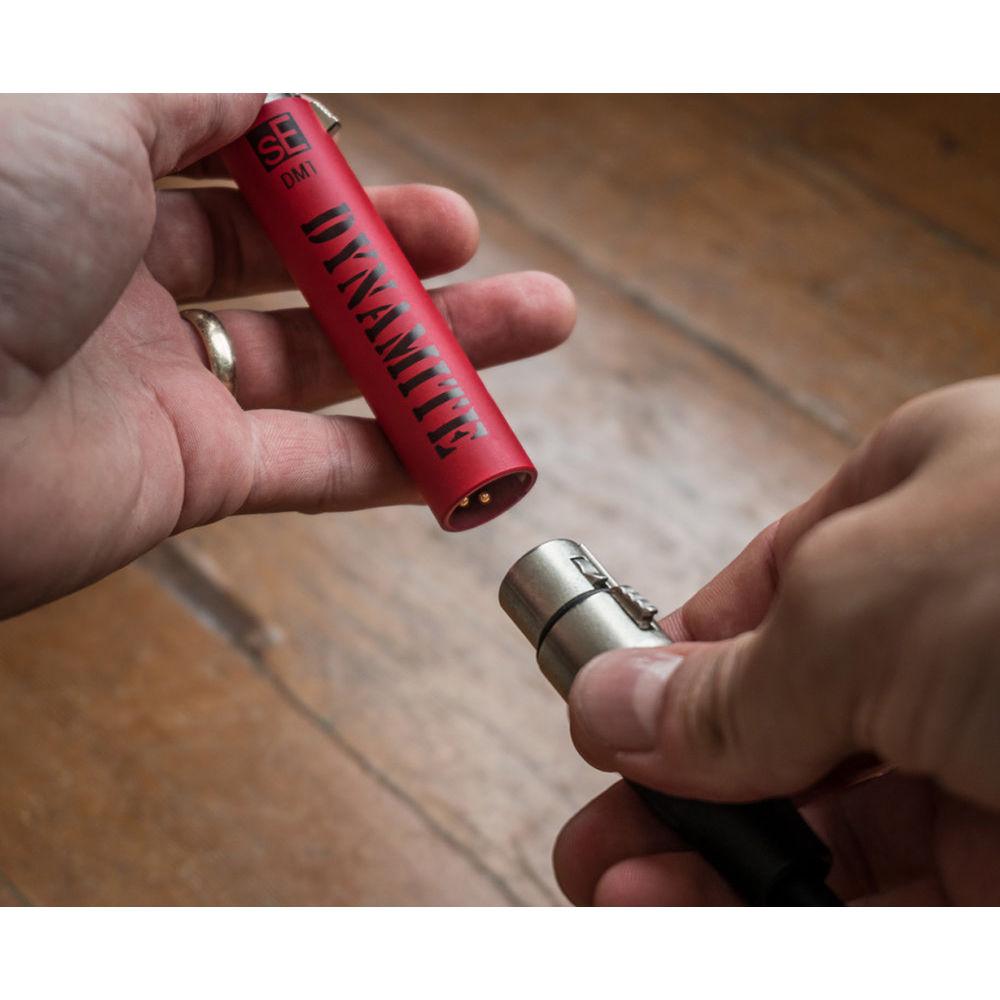

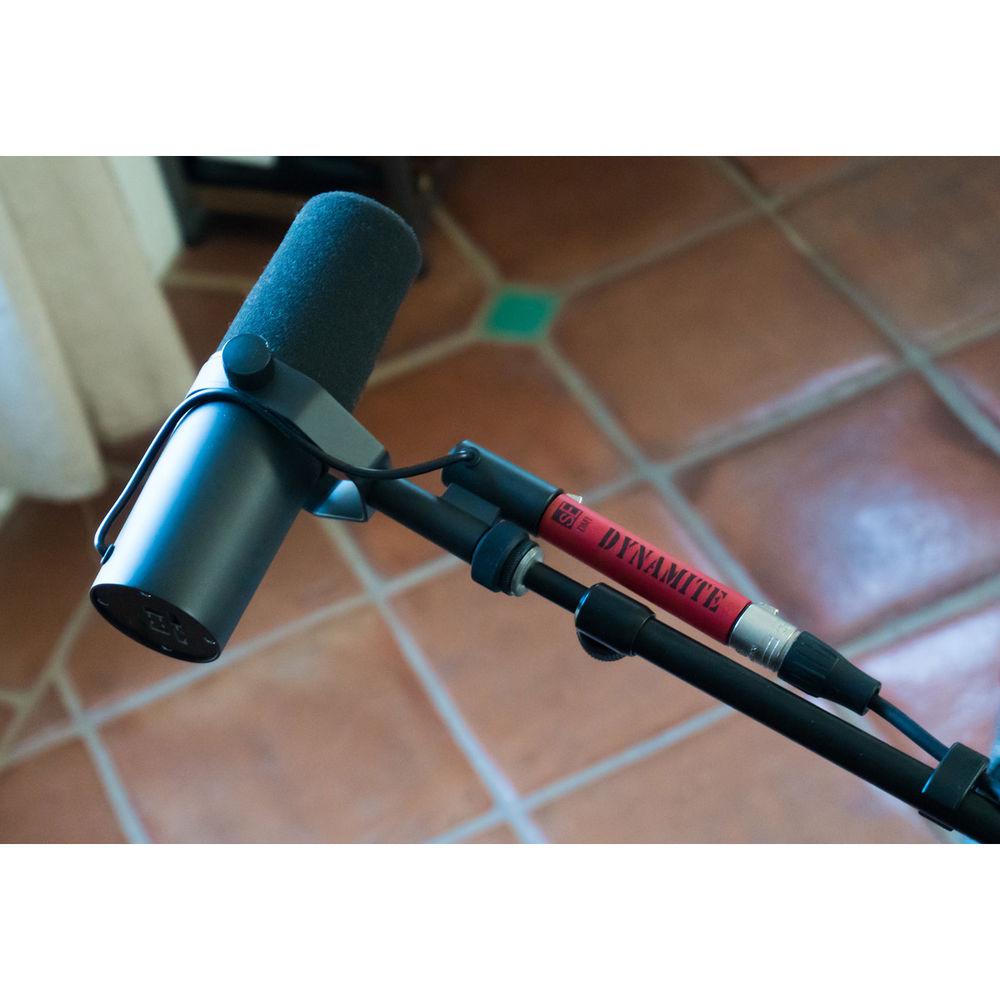

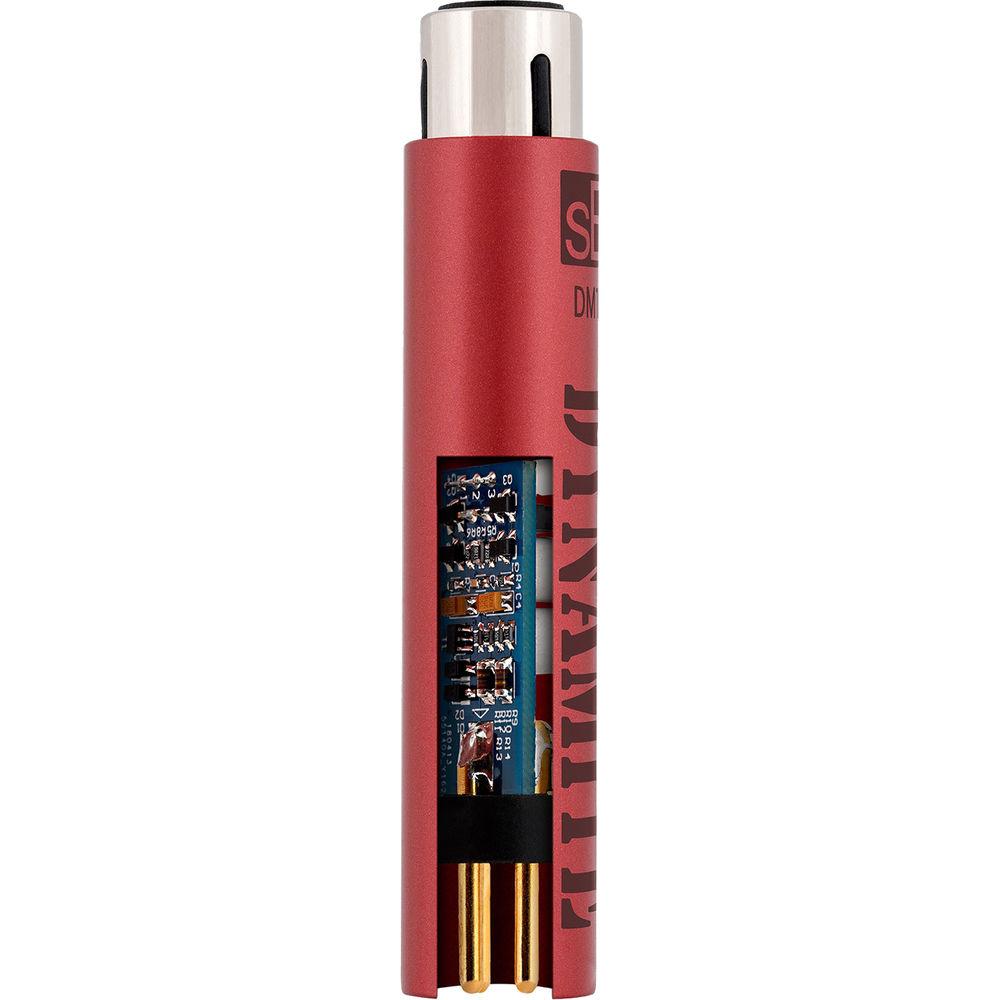

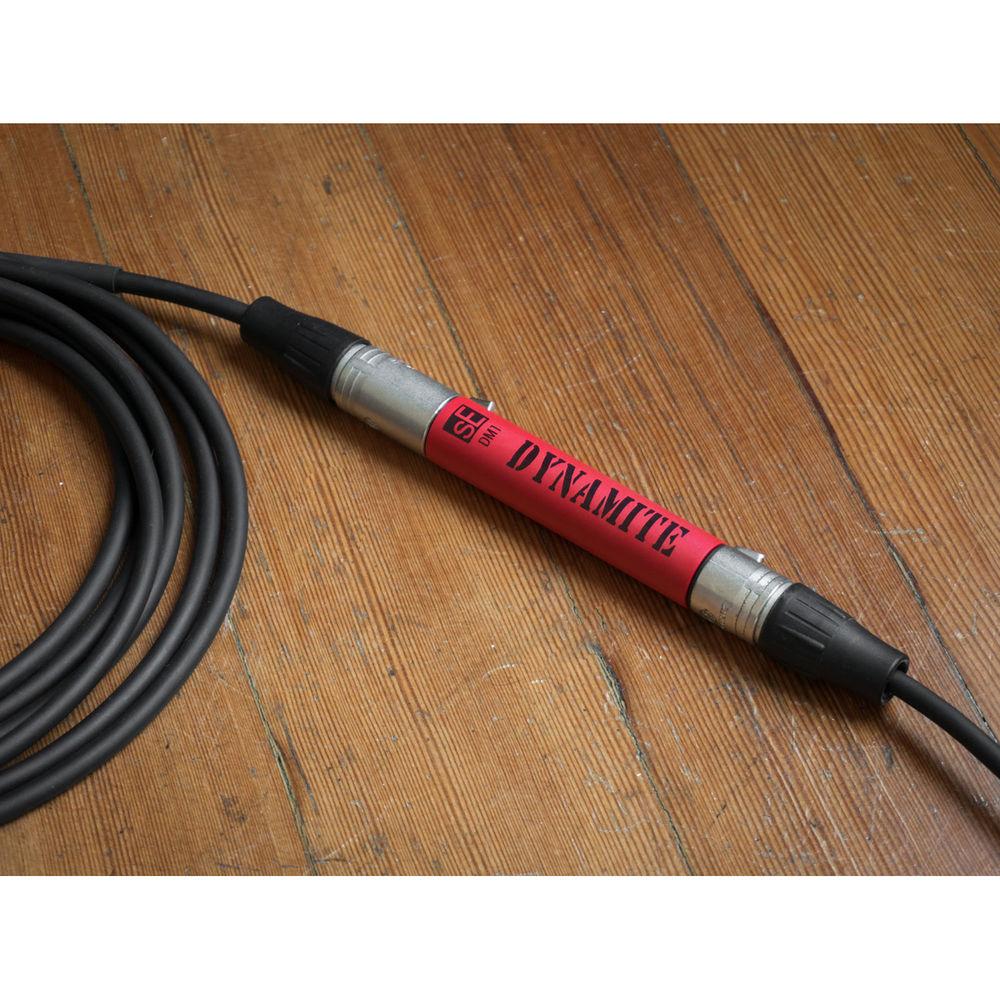

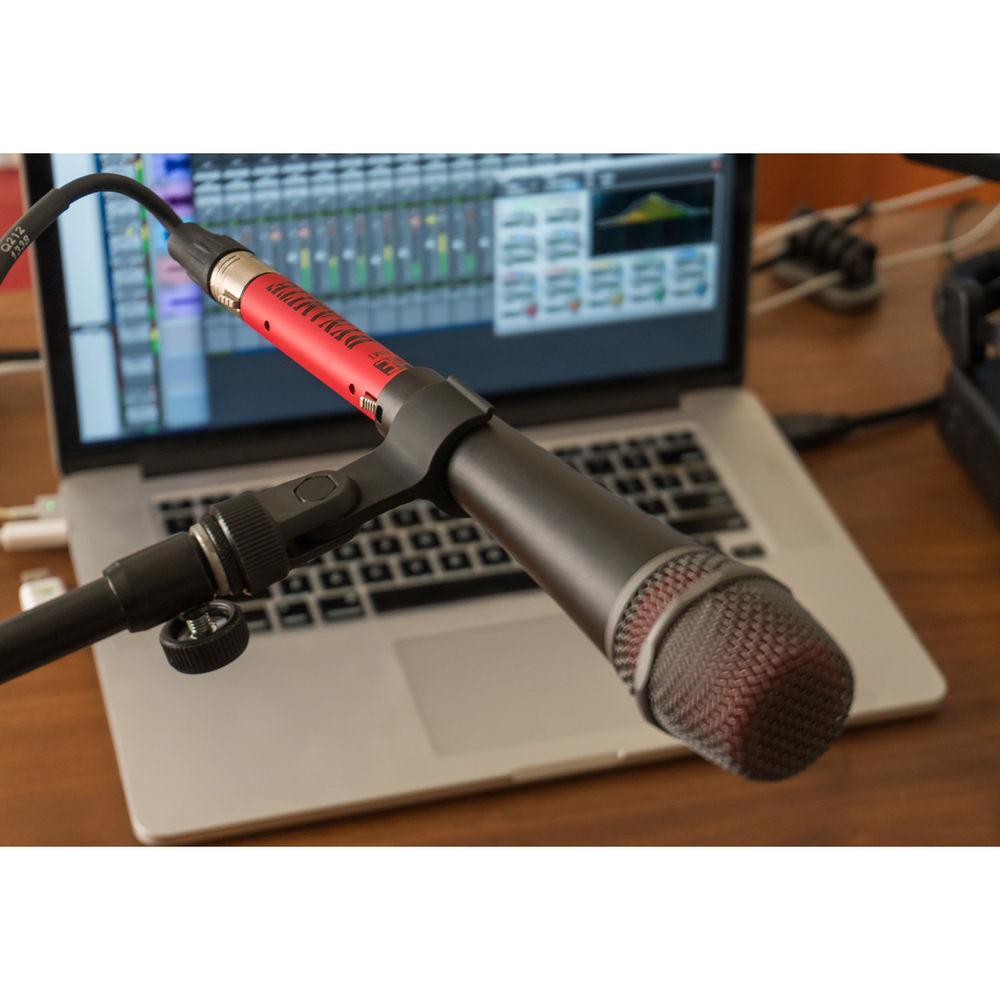

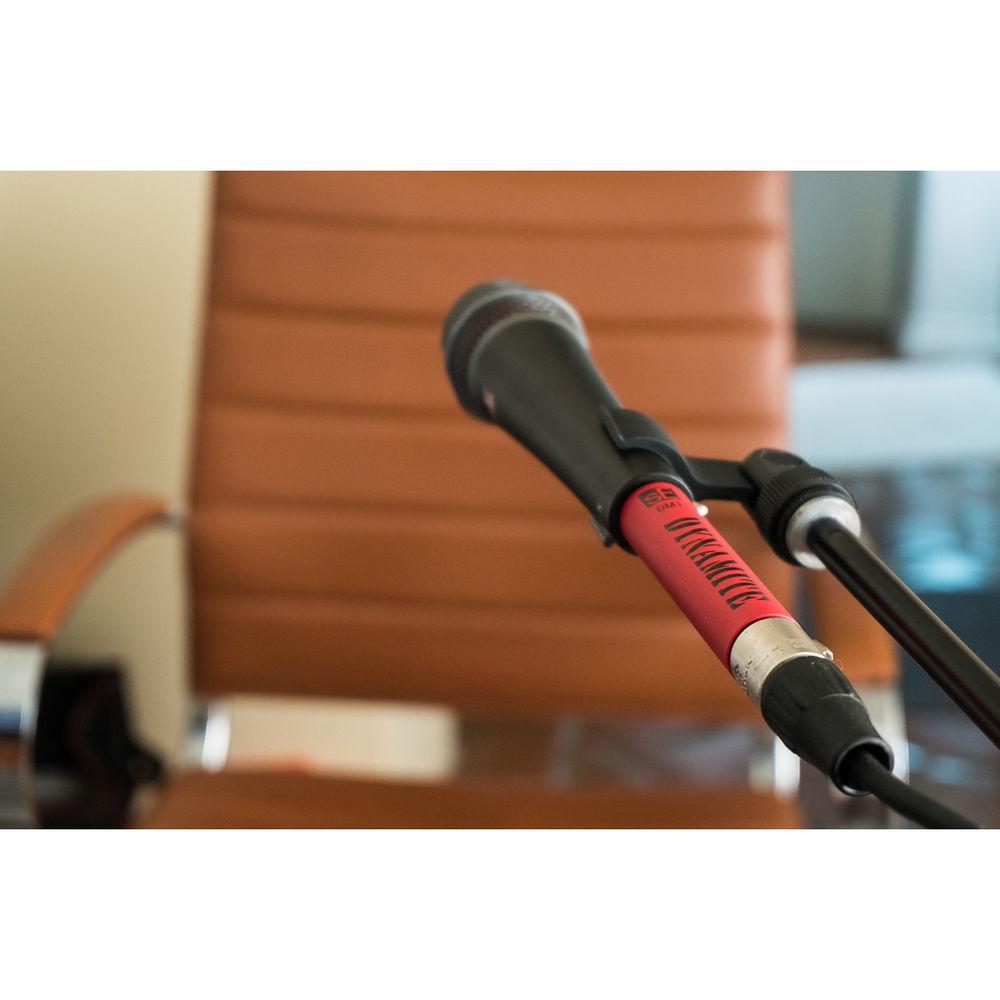

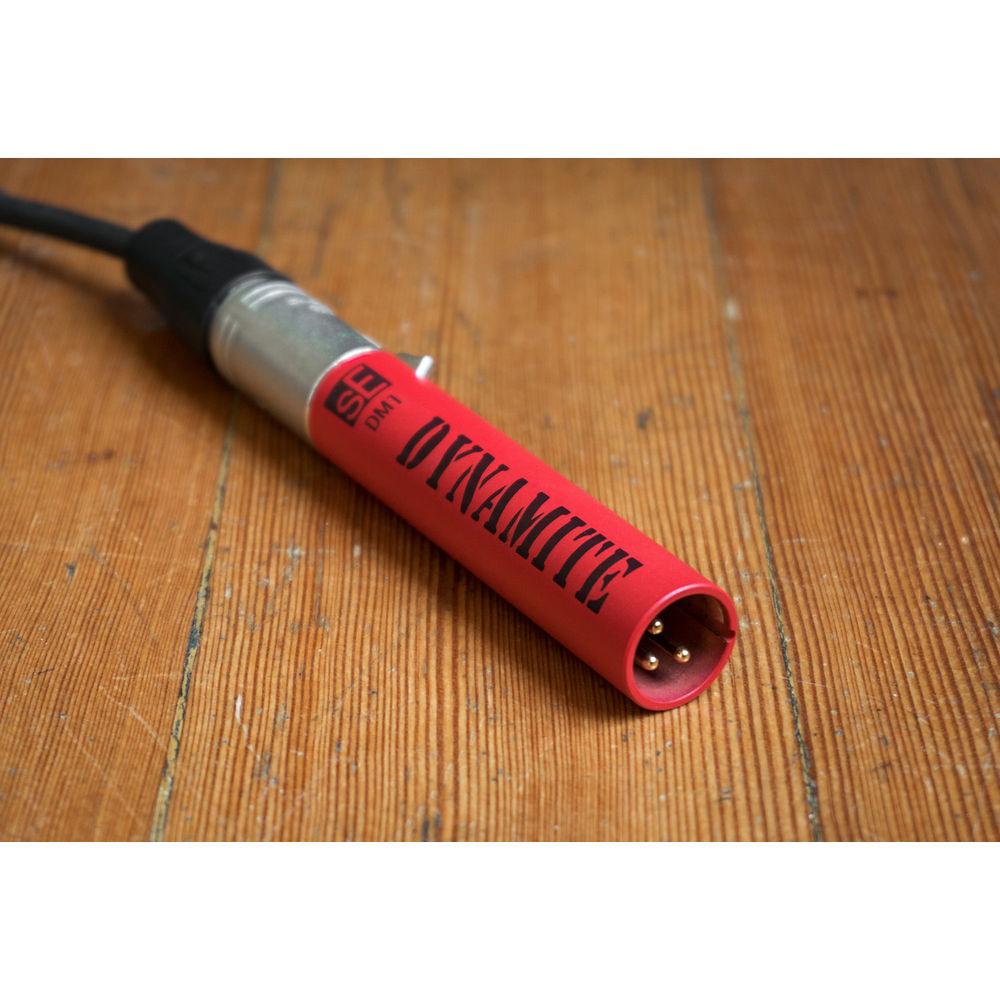

The DM1 Dynamite Active Inline Microphone Preamplifier from sE Electronics is an active inline preamp intended to be inserted between a passive ribbon or dynamic microphone and a microphone preamplifier (sold separately). It can be used to deliver a robust 28 dB of gain to boost the audio signal of a passive mic, which improves the level to a preamplifier without adding noise or coloration.With a sophisticated class-A design and high-grade FETs, the DM1 has a low self-noise. It is built with a dedicated output buffer amplifier allowing it to drive long cable runs and reduce RF interference, buzz, and hum. Additionally, the DM1 Dynamite Active Inline Microphone Preamplifier offers a roadworthy, slim, all-metal design ensuring reliable operation for on-stage applications in difficult environments. UPC: 819032011560 In the Box sE Electronics DM1 Dynamite Active Inline Microphone Preamplifier Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the sE Electronics DM1 Dynamite Active Inline Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterssE Electronics DM1 DYNAMITE Specs | System Requirements | Input: Passive microphone (ribbon/dynamic)
Output: Preamp/mixer or audio interface providing 48 V phantom power
Limitations: Not suitable for phantom-powered microphones (condenser microphones, active ribbon microphones) | | Frequency Range | 10 Hz to 120 kHz (-0.3 dB) | | Gain | 28 dB (load 1 kOhm) | | Maximum Output Level | 8.3 dBV /2.6 V (0.5% THD) | | Output Noise | Level: 9 μV (JIS-A) | | Powering | 48 V according to IEC 61938 | | Impedance | 135 Ohms | | Load Impedance | >1 kOhm | | Current Consumption | 3.0 mA | | Connector | 3-pin male/female XLR | | Dimensions (Ø x L) | 0.75 x 3.76" / 1.91 x 9.55 cm | | Weight | 2.8 oz / 79.9 g | | | | Package Weight | 0.22 lb | | Box Dimensions (LxWxH) | 14.4 x 2.85 x 1.25" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
