User Manual for sE Electronics Gemini II Dual Tube Cardioid Condenser Microphone with High Pass Filter and -10dB Pad Click to enlarge the picture
Contents of the user manual for the sE Electronics Gemini II Dual Tube
- Product category: Tube Microphones sE Electronics
- Brand: sE Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for sE Electronics Tube Microphones
 |
User manual for the sE Electronics Gemini II Dual Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any sE Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official sE Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a sE Electronics product will considerably shorten its lifespan!
|

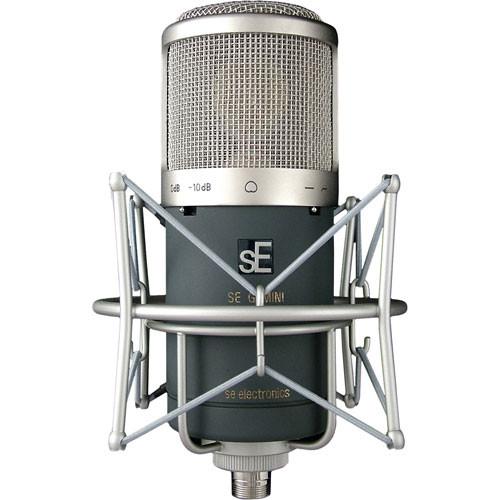

Product description The Gemini II Dual Tube Microphone from sE Electronics is designed for crucial capturing of vocals and instruments in professional recording applications and features a unique dual tube design. The sE-Electronics twin triode valves feature a 12AX7 (ECC83) and 12AU7 (ECC82) tubes that provide pristine warmth and detail at the input and output stages of the microphone.The Gemini II maintains a low noise floor, minimizing the "room noise" associated with most tube microphones. The capsule houses a large diaphragm cardioid element that features a wide 20 Hz to 20 kHz frequency response. The cardioid polar pattern is flexible for most applications as it rejects ambiance and noise at the off-axis sections of the capsule. The Gemini II uses an external Power Supply Unit (PSU) and an 3-pin screw-on terminal ensures a secure connection from the microphone to the PSU. A generous 13 foot (4.2 meter) cable is supplied for flexible placement and a heavy duty, wooden storage case is also supplied. - High Pass Filter Switch
- The Gemini II features a few improvements over the original Gemini. A high-pass filter switch is in place and eliminates low-frequency hum and noise.
- -10 dB Pad Switch
- A -10 dB Pad switch has been added for attenuating microphone level when capturing excessively loud audio signals.
- Dual Valve Design

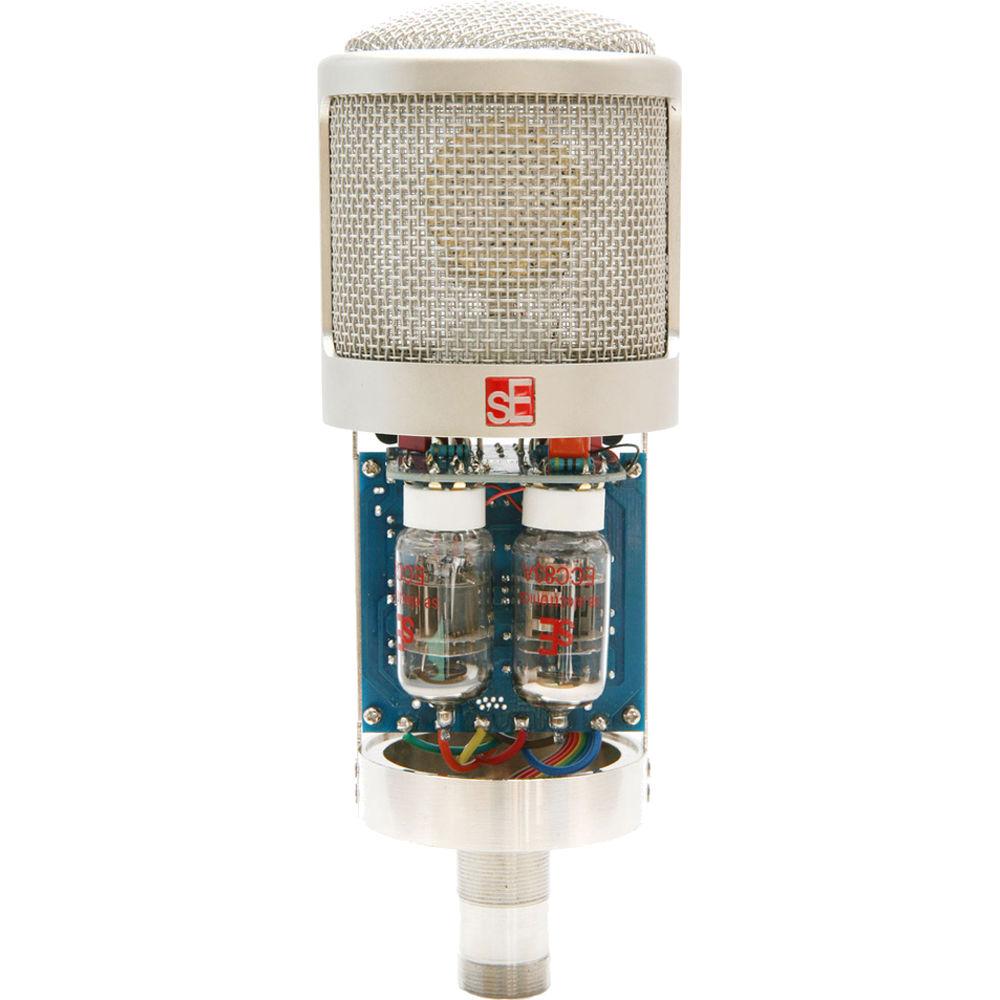

- The Gemini II features a twin valve design. A 12AX7 provides the warmth and detail on the input stage while a 12AU7 provides a transformer-less output stage.
- Cardioid Polar Pattern
- The fixed cardioid pattern rejects noise and ambiance at the off-axis sections of the capsule while.
- Low Noise Floor
- The Gemini's audio reproduction eliminates the ambient noise associated with most tube microphones.
- Generous Cable Length
- The Gemini II features a secure connection to the PSU and a generous long cable provides flexible placement.

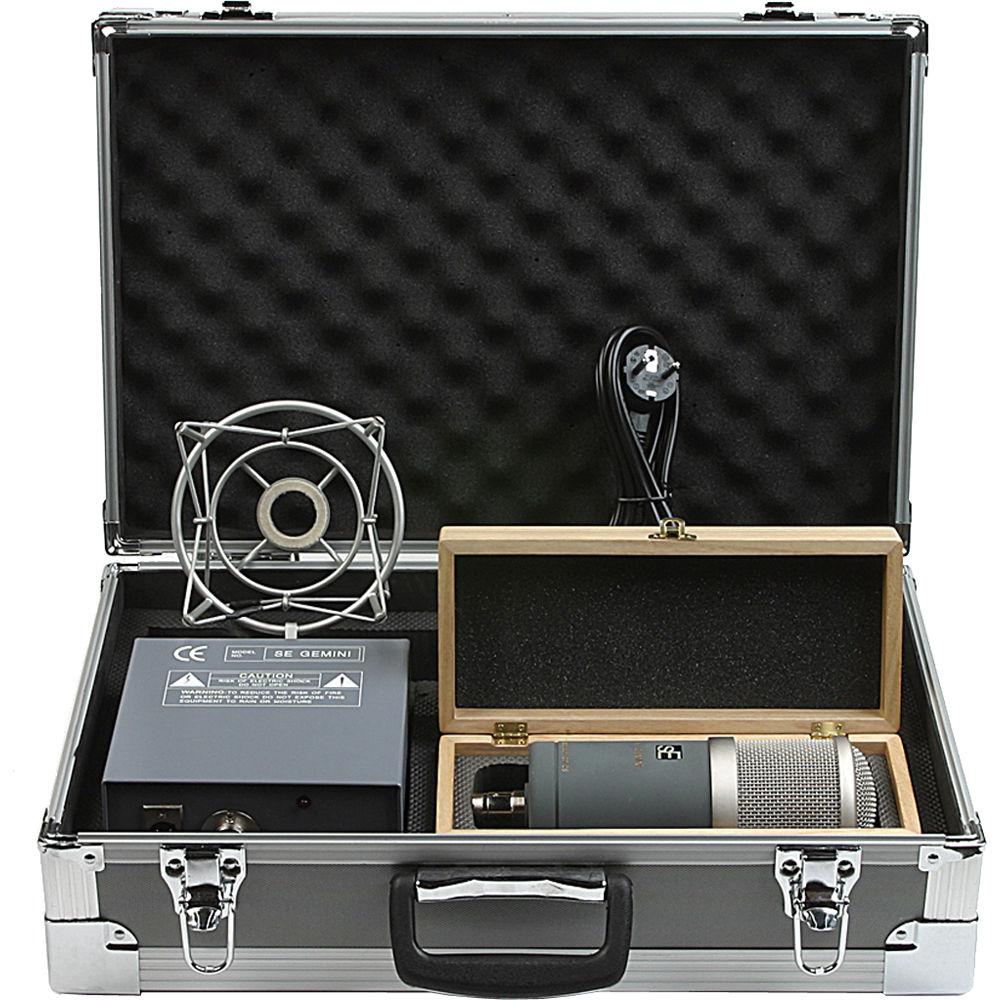

UPC: 850426001330 In the Box sE Electronics Gemini II Dual Tube Cardioid Condenser Microphone with High Pass Filter and -10dB Pad Mic Cable to PSU (13' / 4.2 m) Power Supply Unit Metal Road Case Wooden Storage Case for Mic Shock Mount Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the sE Electronics Gemini II Dual Tube Cardioid Condenser Microphone with High Pass Filter and -10dB Pad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterssE Electronics Gemini Dual II Specs | | | Tube | Yes | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 12 dB A-Weighted | | Maximum SPL | 135 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 200 Ohms | | Sensitivity | 12.6 mV/Pa | | Output Connectors | 1 x 3-Pin XLR | | | | Package Weight | 17.65 lb | | Box Dimensions (LxWxH) | 20.1 x 14.5 x 7.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
