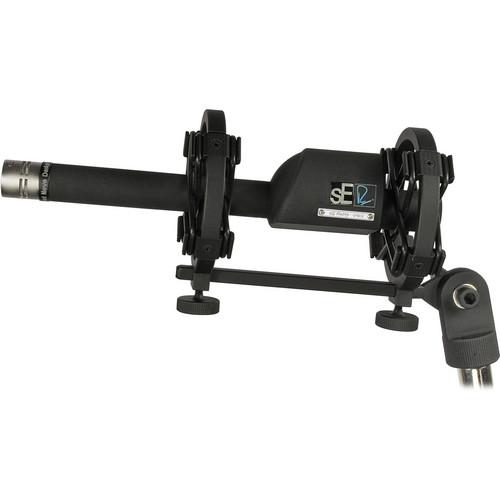

User Manual for sE Electronics RN17 Rupert Neve Pencil Microphone Click to enlarge the picture
Contents of the user manual for the sE Electronics RN17 Rupert Neve Pencil
- Product category: Small Diaphragm Condenser sE Electronics
- Brand: sE Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for sE Electronics Small Diaphragm Condenser
|
User manual for the sE Electronics RN17 Rupert Neve Pencil contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any sE Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official sE Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a sE Electronics product will considerably shorten its lifespan!
|
Product description The RN17 Rupert Neve Pencil Microphone from sE Electronics is a microphone that uses a custom, hand-wound Rupert Neve designed transformer. The microphone's 17mm mylar capsule and transformer combine to reproduce audio with the definition, detail and headroom well suited for crucial dialog capturing, sound design, vocals, instrument and performance recording and more. The RN17 ships with a cardioid capsule. Omnidirectional, hypercardioid and figure 8 capsules are sold separately. The microphone is shipped in a wooden presentation case, and with 5 canisters to hold the cardioid capsule in place. The wooden case is then packaged in sE's signature series flight-case with a custom shockmount. In the Box sE Electronics RN17 Rupert Neve Pencil Microphone (Single Microphone) Cardioid Capsule Wooden Display Box Signature Series Flight Case Custom Shockmount Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the sE Electronics RN17 Rupert Neve Pencil Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterssE Electronics RN17 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.67" / 17 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 69 dB CCIR
74 dB A-Weighted | | Equivalent Noise Level | 23 dB CCIR
18 dB A-Weighted | | Maximum SPL | 150 dB SPL | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 6 mV/Pa at 1 kHz into 1 kOhms | | Dynamic Range | 131 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3 mA | | Operating Voltage | 48 V ± 4 V | | Length | 7.87" / 200 mm | | Diameter | 1.73" / 44 mm | | Weight | 8.75 oz / 248 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
