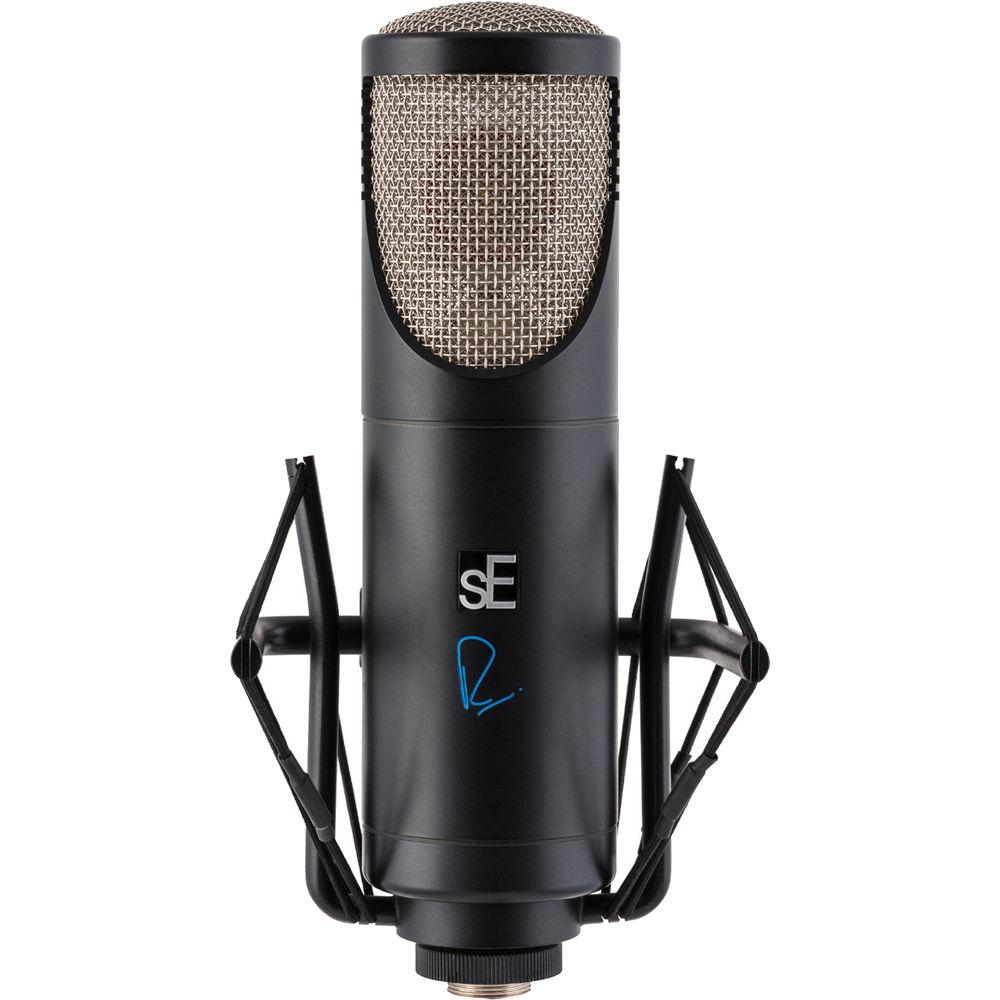

User Manual for sE Electronics RNT Rupert Neve Signature Series Multi-Pattern Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the sE Electronics RNT Rupert Neve Signature
- Product category: Tube Microphones sE Electronics
- Brand: sE Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for sE Electronics Tube Microphones
 |
User manual for the sE Electronics RNT Rupert Neve Signature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any sE Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official sE Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a sE Electronics product will considerably shorten its lifespan!
|

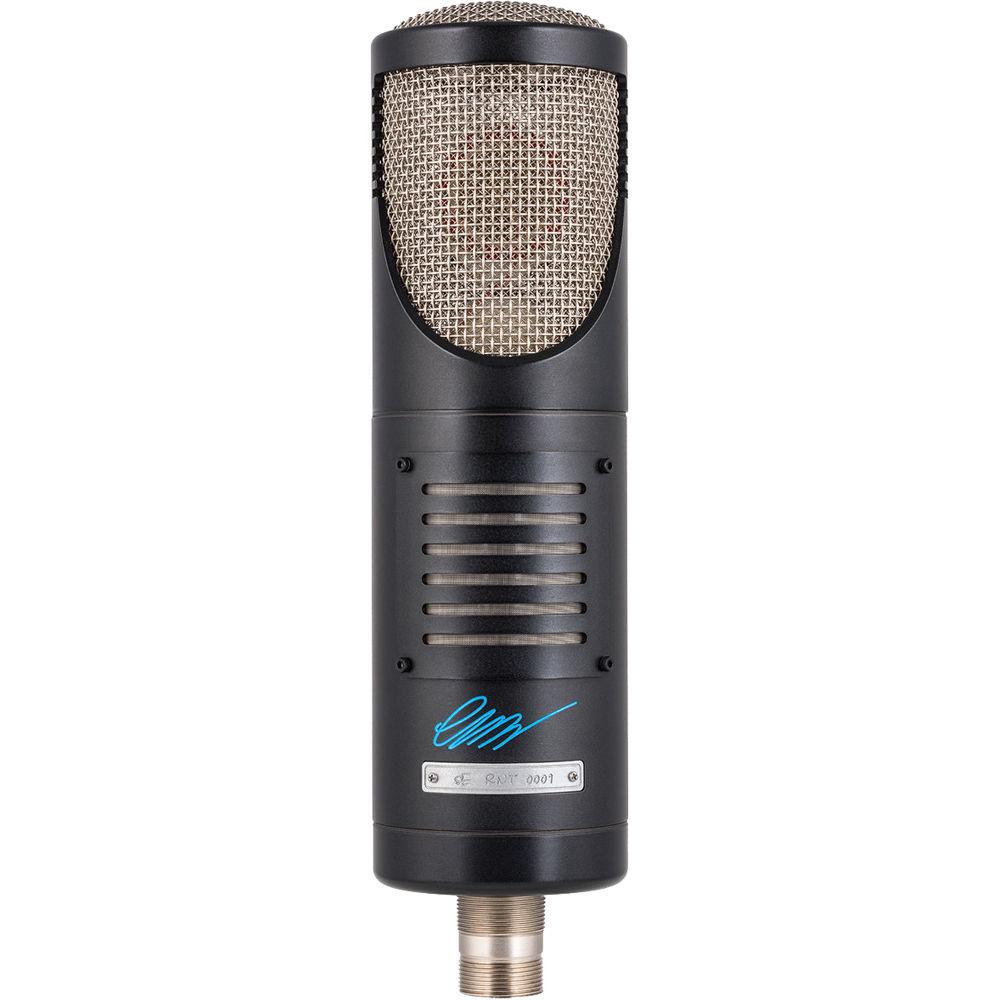

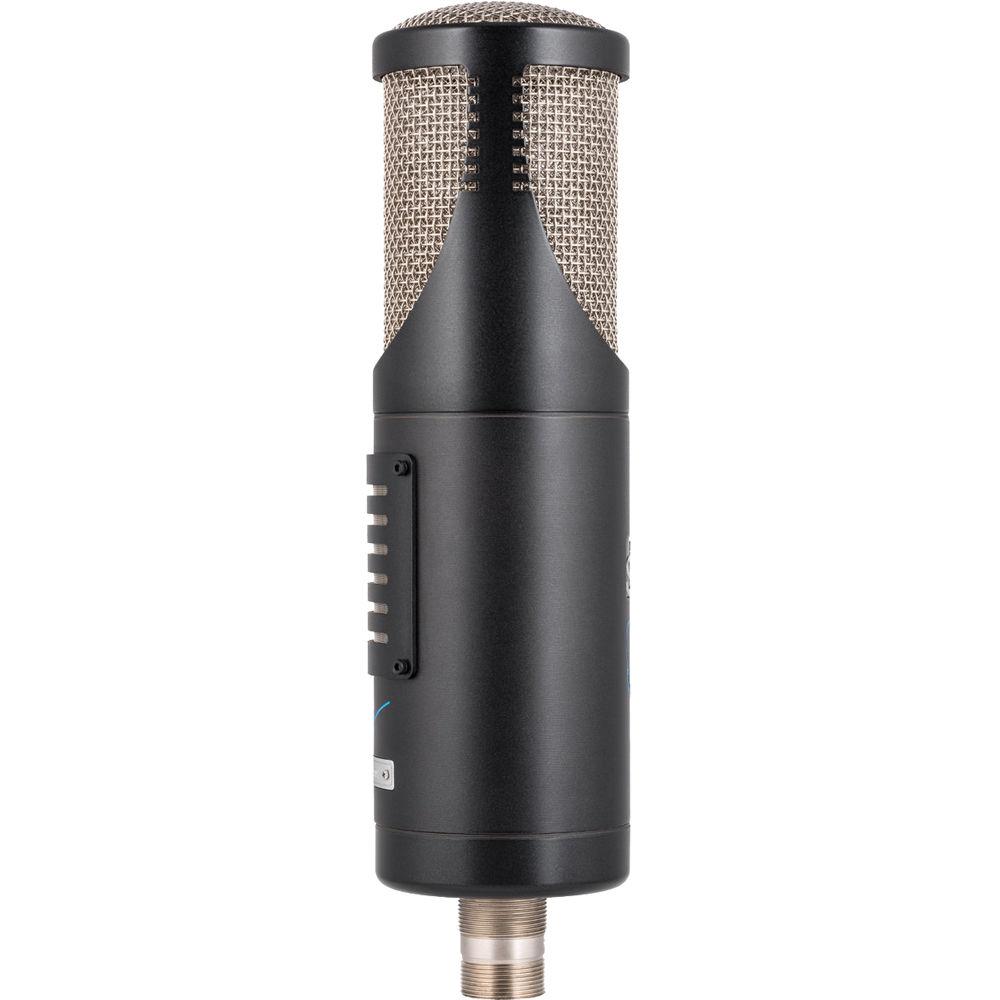

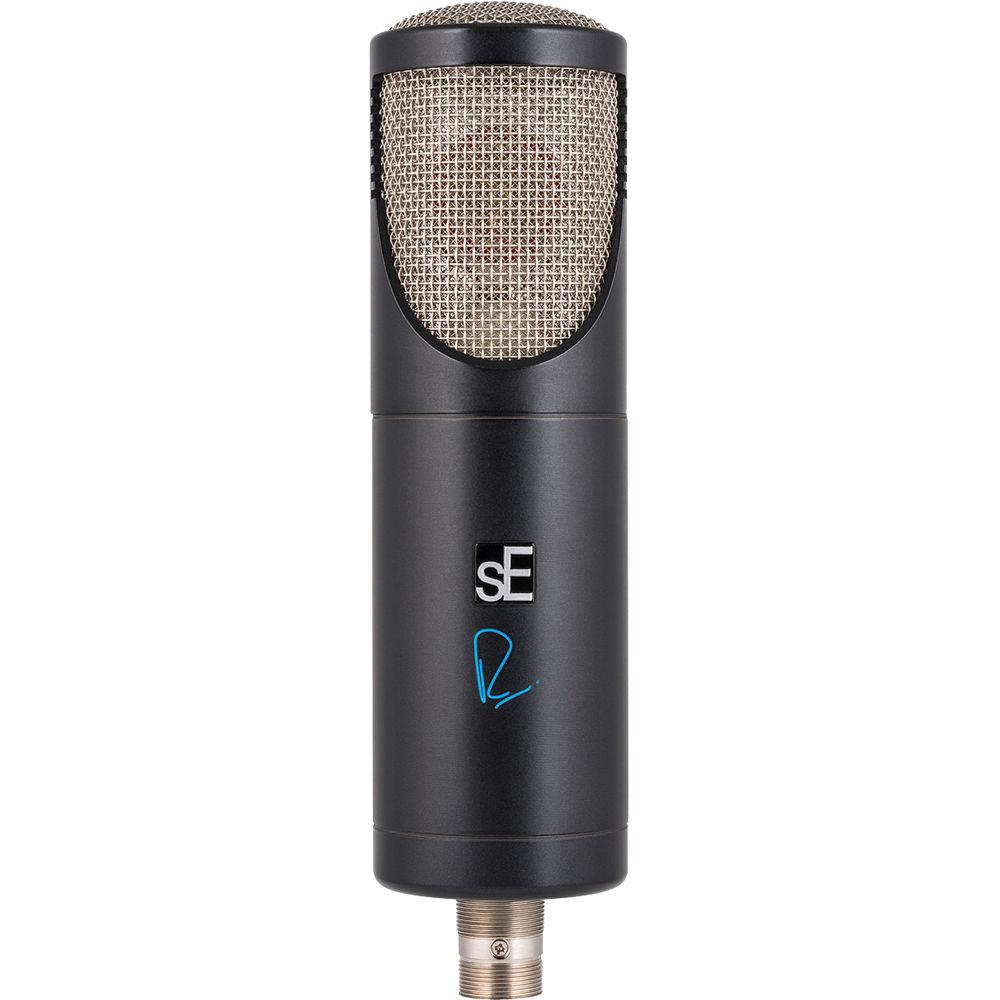

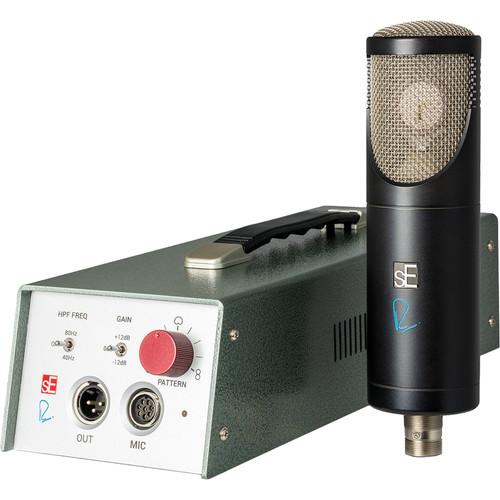

Product description Developed in close collaboration with pioneering designer Rupert Neve, the flagship sE Electronics RNT is a large-diaphragm, multi-pattern tube condenser microphone, which promises to bring the larger-than-life sounds of classic studio tube microphones into the modern age, capturing vocals and instruments with enhanced depth and sonic clarity.The RNT microphone features a handcrafted, gold-sputtered, 1" true-condenser, dual-diaphragm capsule, individually tuned in the company's factory to deliver a natural sound. The first active stage includes a hand-selected, low-noise ECC82 tube housed within the microphone chassis and optimized for driving the mic's first custom-made Rupert Neve Designs output transformer. The microphone's all-metal construction provides efficient rejection of electrical interference and noise, and its high-quality finish offers protection against damage from normal use or aging.The floor box (power supply) houses a second, custom-made Rupert Neve Designs output transformer, built around the same custom op-amps used in Rupert Neve Designs' flagship 5088 recording console, and known for its pristine transparency and large headroom. The box features a nine-position polar pattern switch, which enables you to choose between omnidirectional, cardioid, figure-8, or positions in-between to optimize the pickup of the desired sound source while controlling ambient sound and minimizing unwanted signal bleed.The Microphone utilizes fully discrete, Class-A electronics throughout both of its active stages. It offers three switchable stages of active gain with 24 dB of extended dynamic range, ideal for recording delicate ambiences or close-miking loud instruments and voices. Two switchable, active low-cut filters at 40 and 80 Hz help reduce unwanted rumble or compensate for proximity effect.The RNT includes an 8-pin cable to connect the mic to the floor box, a custom shockmount, a wooden microphone box, and a flight case. RNT Microphone - Handcrafted, Gold-Sputtered 1" True Condenser Capsule
-
- sE's flagship capsule with refined electrode design delivers a natural sound
- Handcrafted and individually tuned in the company's factory
- Nine Selectable Polar Patterns
-
- Precisely-tuned dual-diaphragm capsule design with omnidirectional, cardioid, and figure-8 polar patterns, plus three steps between each
- Allows you to choose the perfect setting for every application
- Minimize unwanted signal bleed with ease
- Hand-Selected ECC82 Tube & Custom Rupert Neve Designs Audio Transformer
-
- Each microphone-grade tube is carefully selected and pre-tested in house
- Produce vivid realism and depth in recordings
- Unique tube circuit design optimized for driving the mic's custom-built Rupert Neve Designs first output transformer
- Handcrafted Metal Housing with Premium Finish
-
- All-metal construction built with highest attention to detail
- Efficient rejection of electrical interference and noise
- High-quality finish ensures a great look for many years

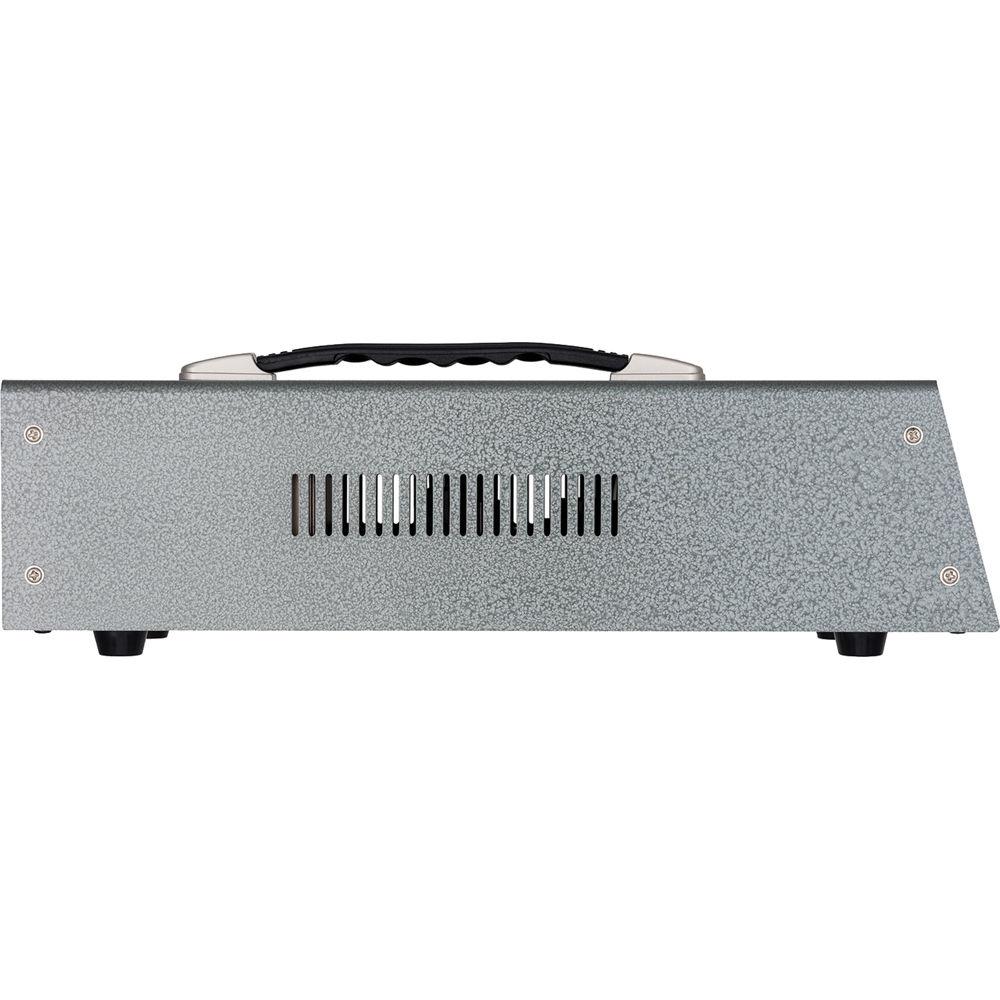

Floor Box (Power Supply) - Second Custom-Built Rupert Neve Designs Audio Transformer
-
- Transformer designed for sweet, musical performance and flawless isolation
- Provides the legendary sonic character of Rupert Neve's transformers
- Custom-Made, Discrete Class-A Rupert Neve Designs Amplification
-
- Delivers the sonic character and performance expected from one of the world's most prized recording equipment
- Utilizes the same operational amplifiers found in Rupert Neve Designs' flagship 5088 console
- Discrete op-amps ensure large headroom, ultra-wide bandwidth, and zero crossover distortion

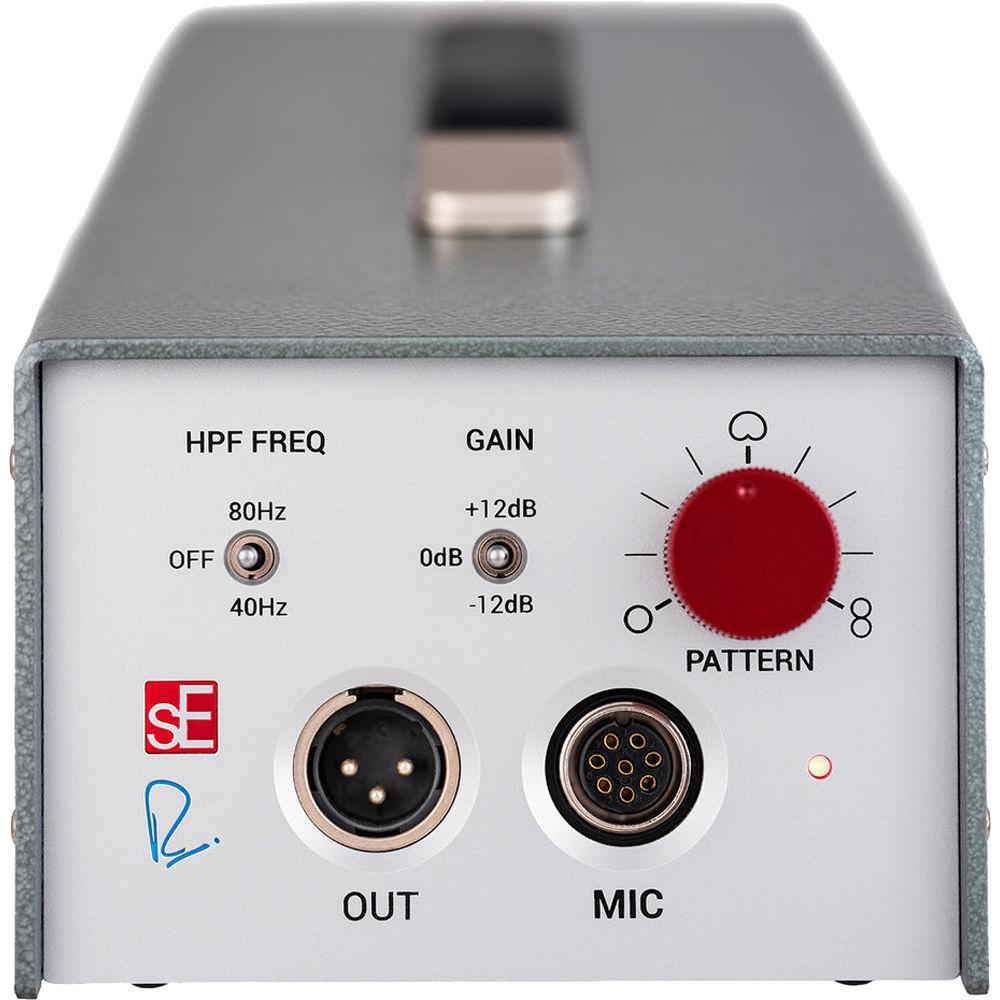

- Active Gain Stage with Three Switchable Levels
-
- Provides 24 dB of extended dynamic range for a wide range of applications (-12 / 0 / +12 dB)
- Discrete Rupert Neve Designs op-amp cards ensure pristine performance
- Suitable for every type of recording from capturing delicate ambience to close-miking loud instruments and voices
- Two Switchable Active Low-Cut Filters
-
- Switchable 80 and 40 Hz low-cut filters
- Reduce unwanted rumble or foot-fall noise, or compensate for proximity effect

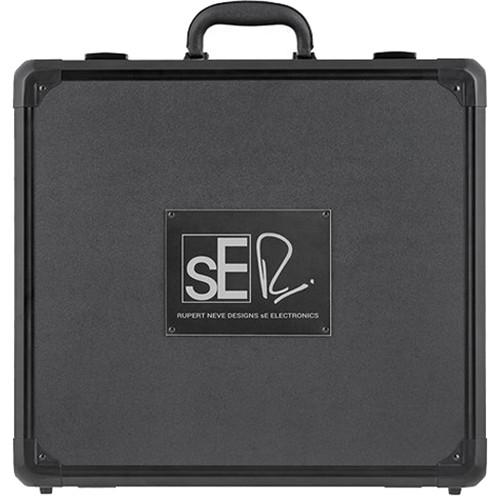

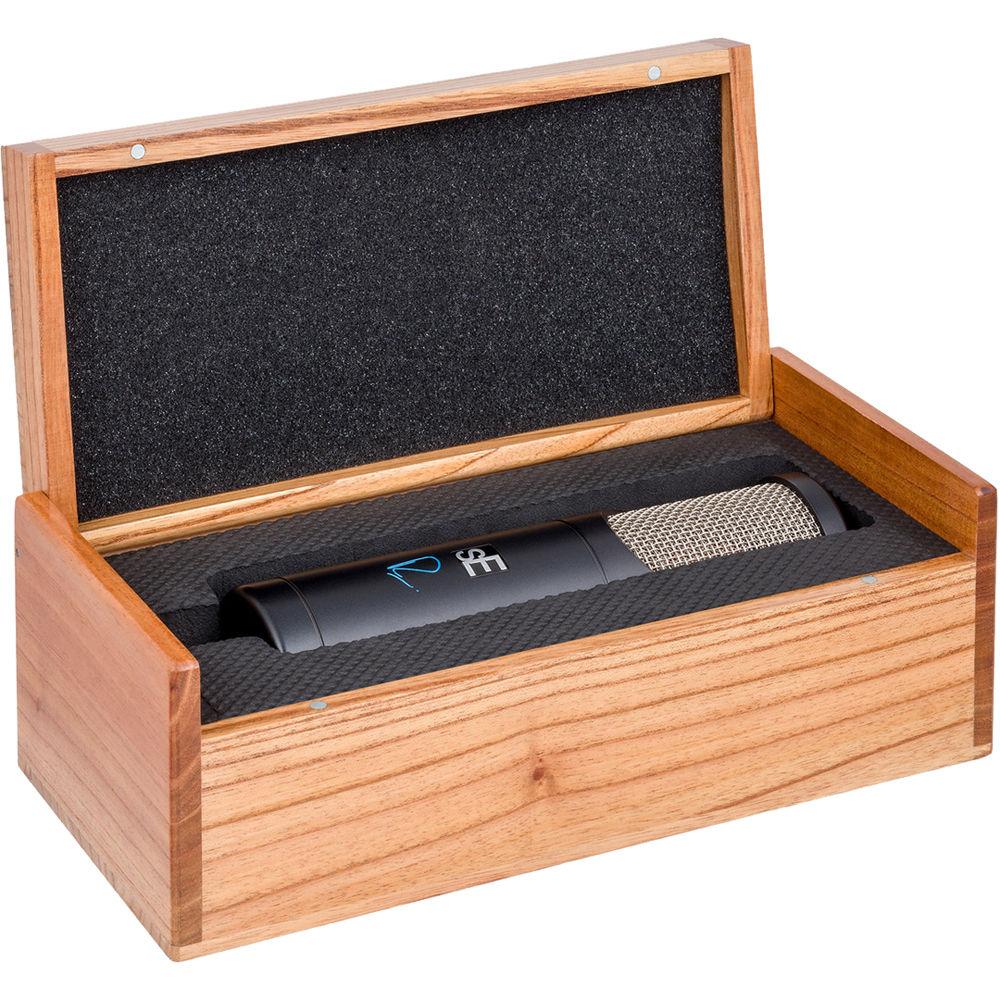

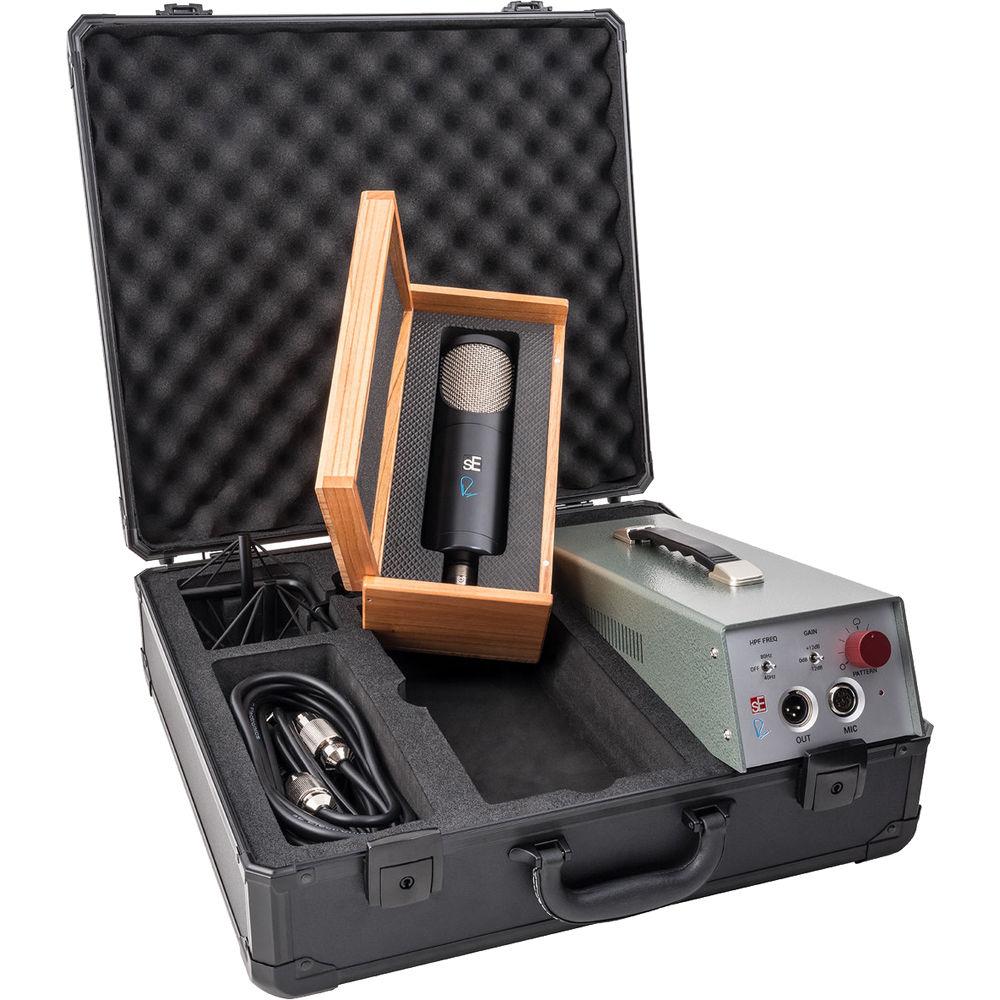

UPC: 819032011027 In the Box sE Electronics RNT Rupert Neve Signature Series Multi-Pattern Tube Condenser Microphone RNT Microphone RNT Floor Box (Power Supply) 8-Pin Cable (To Connect Mic to Floor Box) IEC Power Cable Wooden Microphone Box Flight Case sE Logo Sticker Limited 4-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the sE Electronics RNT Rupert Neve Signature Series Multi-Pattern Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterssE Electronics RNT Specs | | | Sound Field | Mono | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm (Condenser) | | Tube | Yes 12AU7 (ECC82) | | Polar Pattern | Cardioid, Figure-8, Omnidirectional 3 additional steps between each of the main patterns for a total of 9 polar patterns | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB | | Equivalent Noise Level | 18 dB A-Weighted | | Maximum SPL | 151 dB SPL | | Pad | -12 dB | | Impedance | 30 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | 16 mV/Pa | | Low-Cut Filter | 12 dB/Octave @ 40 Hz
12 dB/Octave @ 80 Hz | | Dynamic Range | 133 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 9.45" / 240 mm | | Diameter | 2.44" / 62 mm | | Weight | 34.9 oz / 989 g PSU Weight: 8.6 lb / 3.9 kg |
