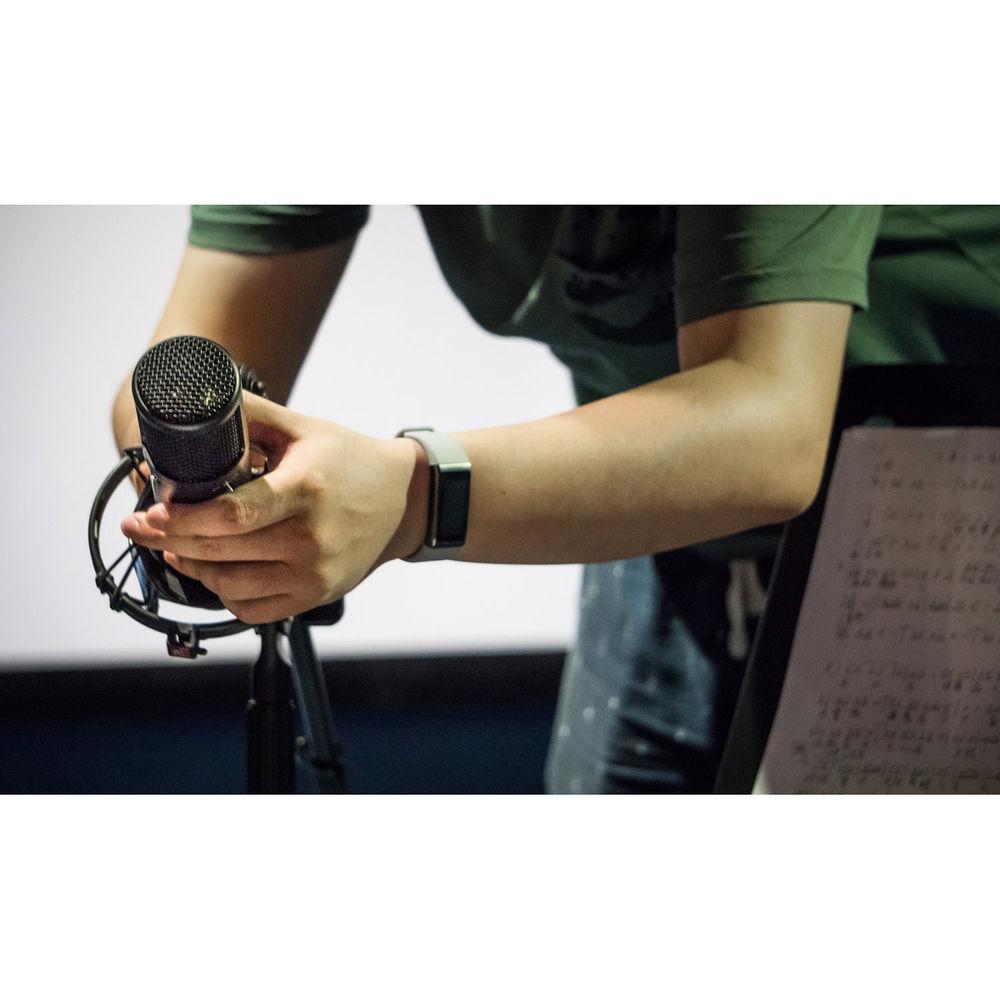

User Manual for sE Electronics sE2300 Studio Condenser Microphone with Switchable Polar Patterns and Isolation Pack Click to enlarge the picture
Contents of the user manual for the sE Electronics sE2300 Studio Condenser Microphone
- Product category: Large Diaphragm Condenser sE Electronics
- Brand: sE Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for sE Electronics Large Diaphragm Condenser
 |
User manual for the sE Electronics sE2300 Studio Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any sE Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official sE Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a sE Electronics product will considerably shorten its lifespan!
|
Product description Suitable for vocals, voiceovers, and instrumental applications, the sE Electronics sE2300 is a hand-crafted condenser microphone bundled together with an isolation pack. The microphone takes the same design as the sE2200 and adds a switch to change polar patterns for added versatility. You'll find the same capsule design, custom-built output transformer, and class-A circuit topologies.
The dual, 1" gold-sputtered diaphragms give you cardioid, omnidirectional, and figure-8 polar pattern options. Each capsule is hand-crafted and individually tuned in the factory. The included isolation pack features a shockmount that uses a single twist-knob for easy setup and breakdown. Also included is sE's curved metal pop filter, which efficiently slots into the shockmount and is vertically adjustable. A thread adapter and an sE logo sticker are supplied as well. - Traditional Class-A Electronic Design
-
- Carefully selected, discrete components ensure professional sound quality on any source
- Microphone's design avoids using any ICs (integrated circuits)
- Low noise, consistent performance, and high sensitivity are provided by surface-mounted electronic components with extremely tight tolerances
- Two Switchable Attenuation Levels and Low-Cut Filters
-
- The -10 and -20 dB pad switches provide extended dynamic range, enabling a wide variety of applications and close-mic techniques for even the loudest instruments
- Selectable at either 80 or 160 Hz, the low-cut filter helps eliminate low-frequency rumble or footfall noise, and helps compensate for excessive bass (proximity effect) with close-mic techniques
- Custom-Built Output Transformer
-
- Reviving the spirit of classic studio microphones, the sE2300’s custom transformer is designed to provide superb depth and weight to the overall sonic image, while the heavy-shielded metal housing ensures noise-free operation
- All-Metal Housing and Premium Finish
-
- The sE2300's all-metal chassis provides efficient rejection of electrical interference and noise.
- Gold-Plated XLR Connector
-
- Ensures loss-free, reliable signal connection
- Isolation Pack
-
- With the twist of a single knob, the shockmount attaches quickly and securely to the microphone, and is removable with the same simple motion, allowing the mic to be set up quickly and easily without superfluous adjustments or hassle
- The Isolation Pack also comes equipped with sE's curved metal pop filter, which efficiently slots in to the shockmount and is vertically adjustable for best performance
UPC: 819032011522 In the Box sE Electronics sE2300 Studio Condenser Microphone with Switchable Polar Patterns and Isolation Pack Shockmount Metal Pop Filter Thread Adapter sE Logo Sticker Limited 2-Year Warranty, Extended to 3-Year with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the sE Electronics sE2300 Studio Condenser Microphone with Switchable Polar Patterns and Isolation Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterssE Electronics SE2300 Specs | | | Sound Field | Mono | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Tube | No | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 86 dB | | Equivalent Noise Level | 9 dB | | Maximum SPL | 125 dB SPL Peak
135 dB SPL Peak
145 dB SPL Peak SPL changes depending on pad setting | | Pad | -10 dB
-20 dB | | THD | 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1 kOhms | | Sensitivity | 23.7 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 80 Hz
6 dB/Octave @ 160 Hz | | Dynamic Range | 117 dB
127 dB
137 dB Dynamic range changes depending on pad setting | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.2 mA | | Operating Voltage | 48 V | | Length | 8.46" / 215 mm | | Diameter | 2.01" / 51 mm | | Weight | 21.55 oz / 611 g | | | | Package Weight | 2.99 lb | | Box Dimensions (LxWxH) | 11.0 x 8.9 x 5.3" |
