Product description - The sE7 Small-Diaphragm Condenser
Designed for drums, guitars, pianos, or indeed, any application requiring a pencil-mic design, the sE Electronic sE7 Stereo Pair offers two back-electret, small-diaphragm condenser microphones. This is a matched pair suitable for stereo-miking drum overheads and other instruments. Each mic sports a cardioid polar pattern. Fashioned from class-A circuitry and utilizing a transformerless output, each microphone captures sound with clarity and neutrality across its frequency response, thus eschewing overly harsh highs and aiding in a pleasurable bottom end.
A switchable 20 dB attenuation pad in each mic allows you to use the pair with loud instruments, doing so with a favorable signal-to-noise ratio. Engaging the 80 Hz low-cut filter helps reduce rumble and other unwanted bass issues. Thus, you can use the mics in both close and distant miking scenarios.

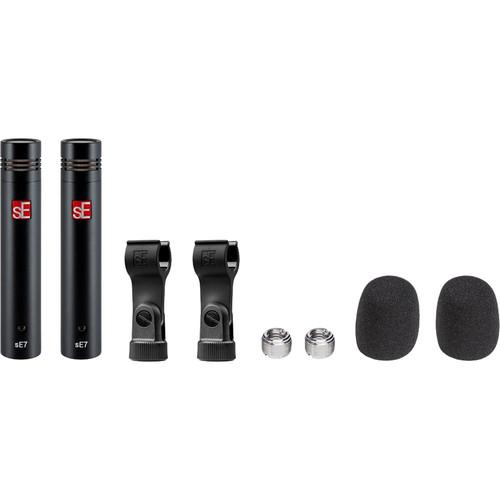

An all-metal chassis in each microphone provides a robust, roadworthy construction, while gold-plated XLR terminations ensure security in the connecting process. Mic clips and windscreens are included. UPC: 819032011546 In the Box sE Electronics sE7 Small-Diaphragm Condenser Microphone (Matched Stereo Pair) 2 x Mic Clips 2 x Wind Screens Limited 2-Year Warranty, Extended to 3-Year with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the sE Electronics sE7 Small-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterssE Electronics SE7 Specs | | | Sound Field | Mono | | Transducer | Electret Condenser | | Diaphragm | 0.5" / 12.70 mm | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 78 dB | | Equivalent Noise Level | Cardioid: 16 dB A-Weighted | | Maximum SPL | Cardioid: 136 dB SPL
Cardioid: 156 dB SPL Depending on pad position | | Pad | -20 dB | | Impedance | Cardioid: 200 Ohms | | Load Impedance | 1 kOhms | | Sensitivity | Cardioid: 19 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 80 Hz | | Dynamic Range | Cardioid: 120 dB
Cardioid: 140 dB Depending on pad position | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3 mA | | Operating Voltage | 48 V | | Length | 4.72" / 120 mm | | Diameter | 0.91" / 23 mm | | Weight | 4.52 oz / 128 g | | | | Package Weight | 1.11 lb | | Box Dimensions (LxWxH) | 8.0 x 6.15 x 2.2" |
