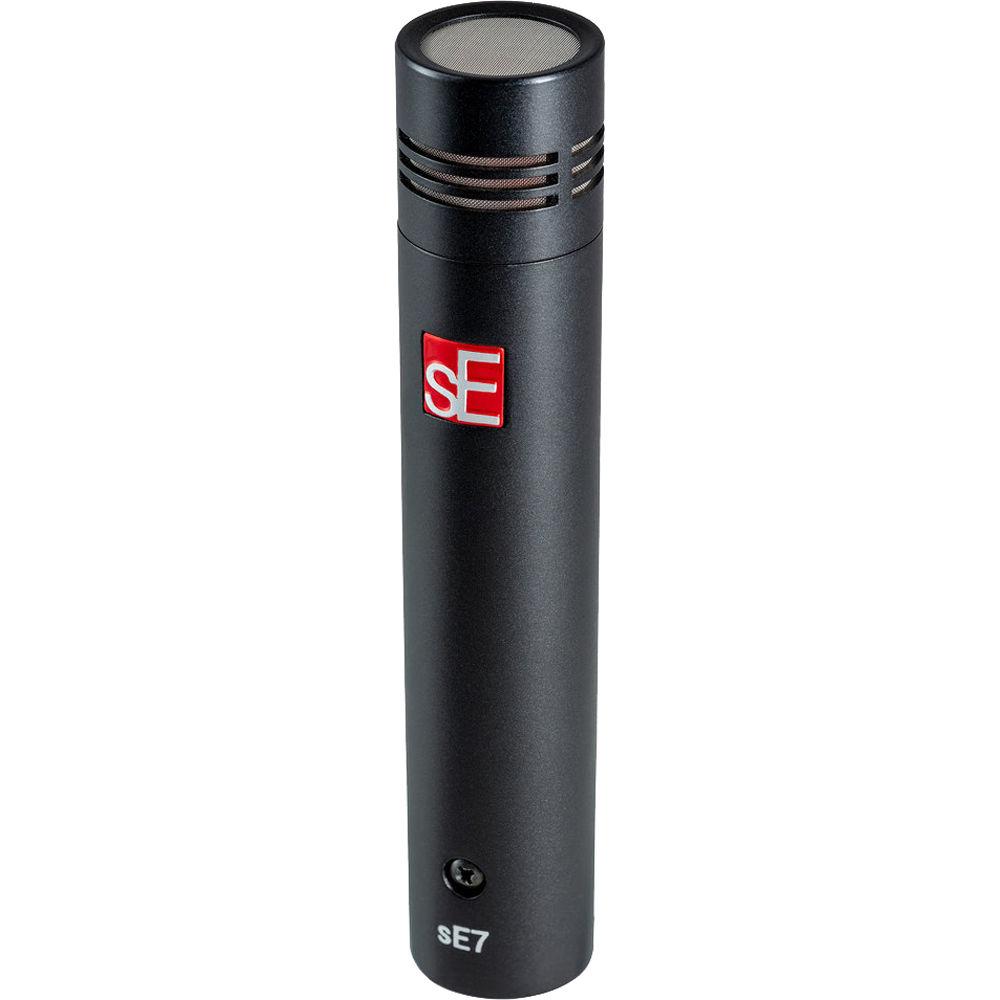

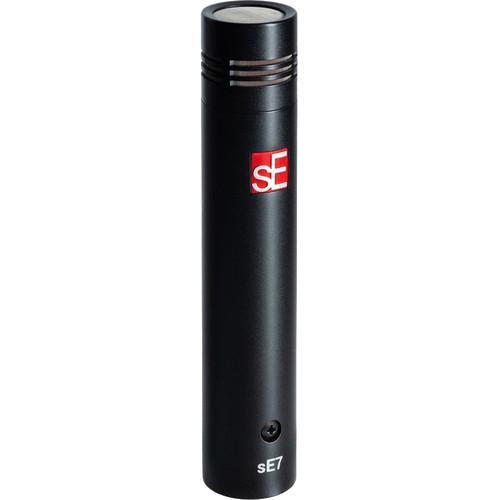

User Manual for sE Electronics sE7 Small-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the sE Electronics sE7 Small-Diaphragm Condenser Microphone
- Product category: Small Diaphragm Condenser sE Electronics
- Brand: sE Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for sE Electronics Small Diaphragm Condenser
 |
User manual for the sE Electronics sE7 Small-Diaphragm Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any sE Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official sE Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a sE Electronics product will considerably shorten its lifespan!
|

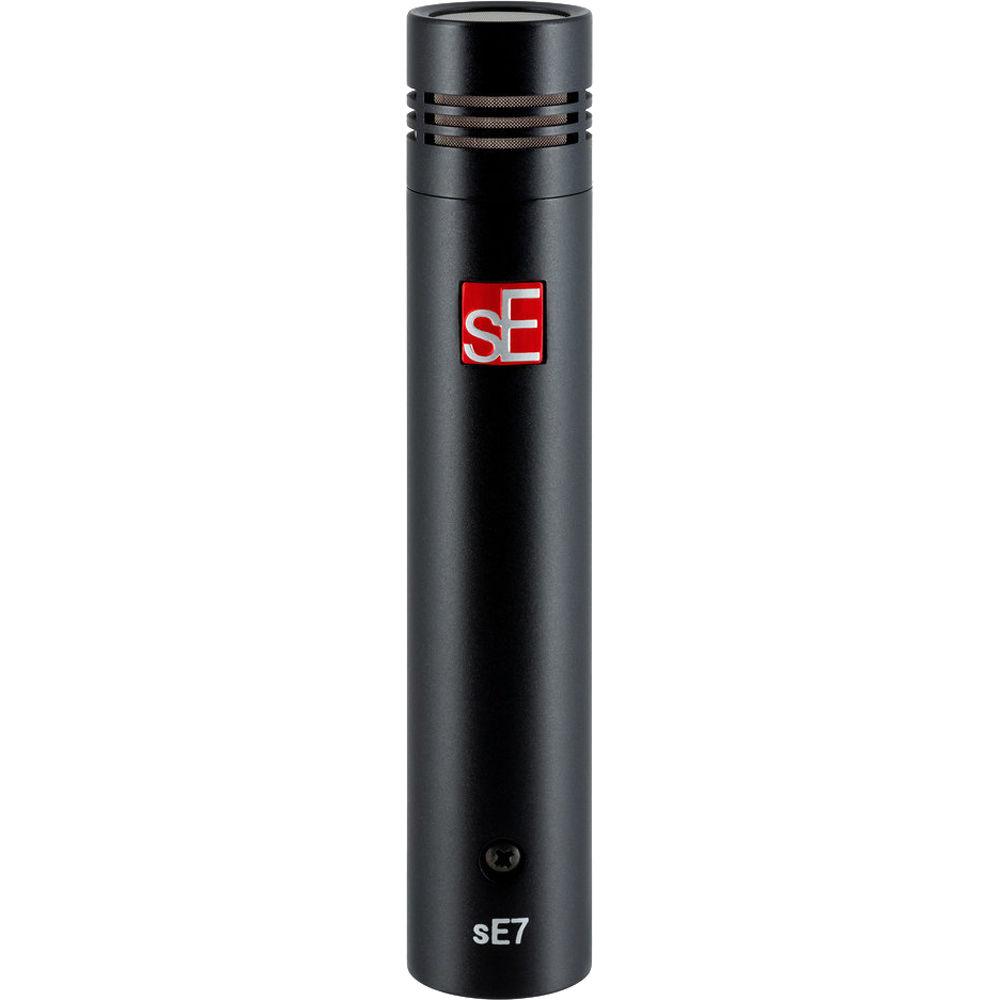

Product description - The sE7 Small-Diaphragm Condenser

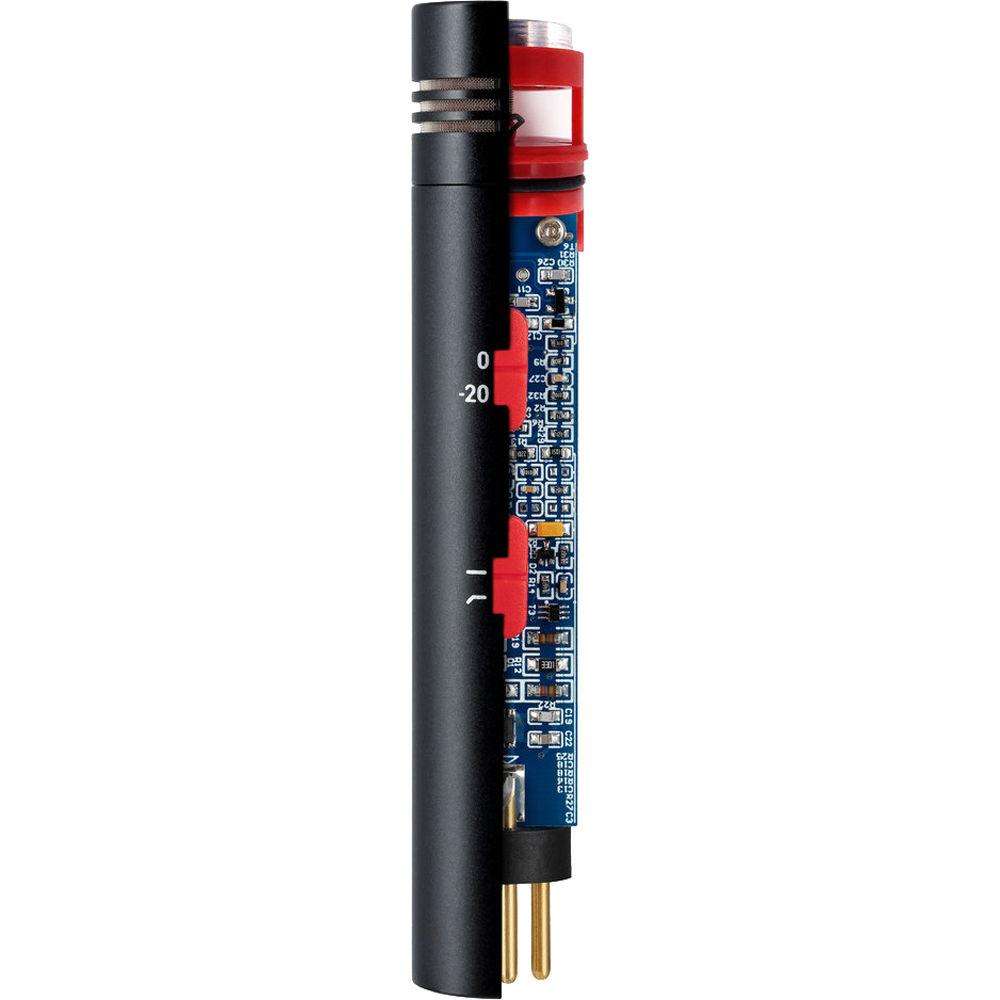

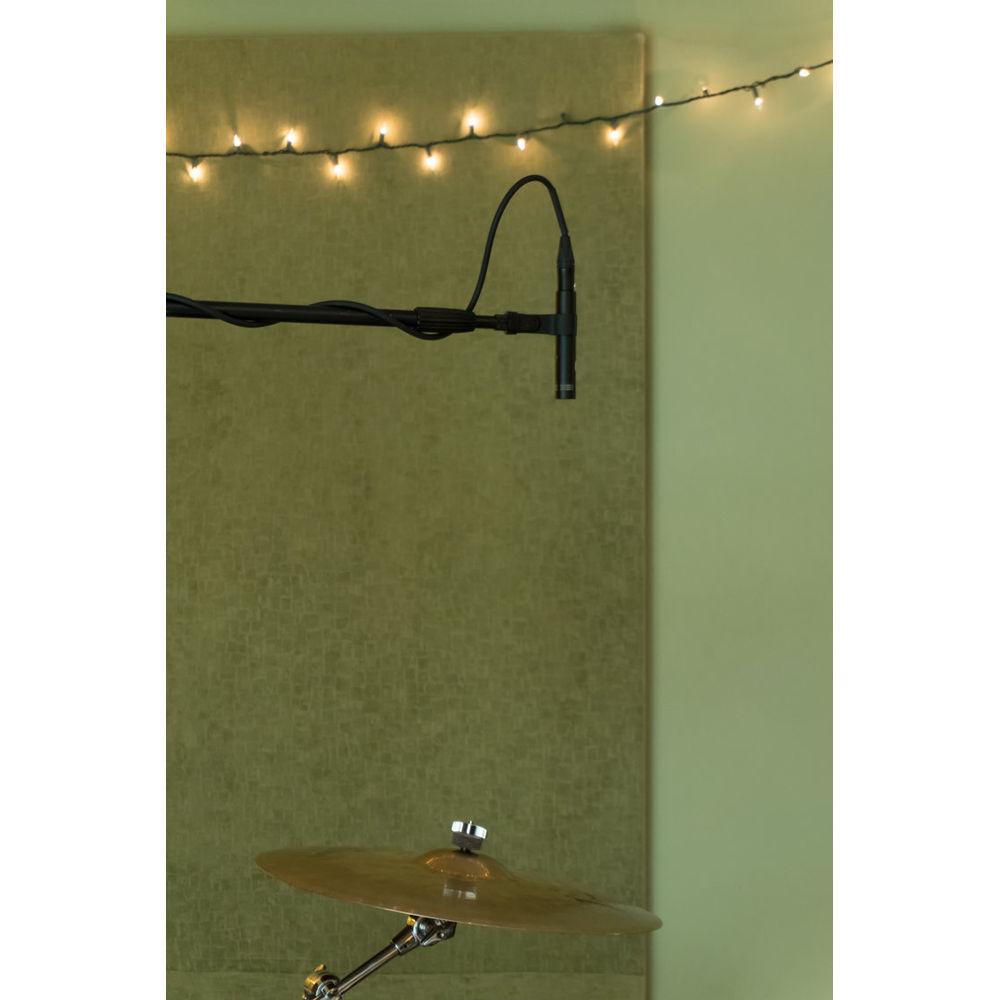

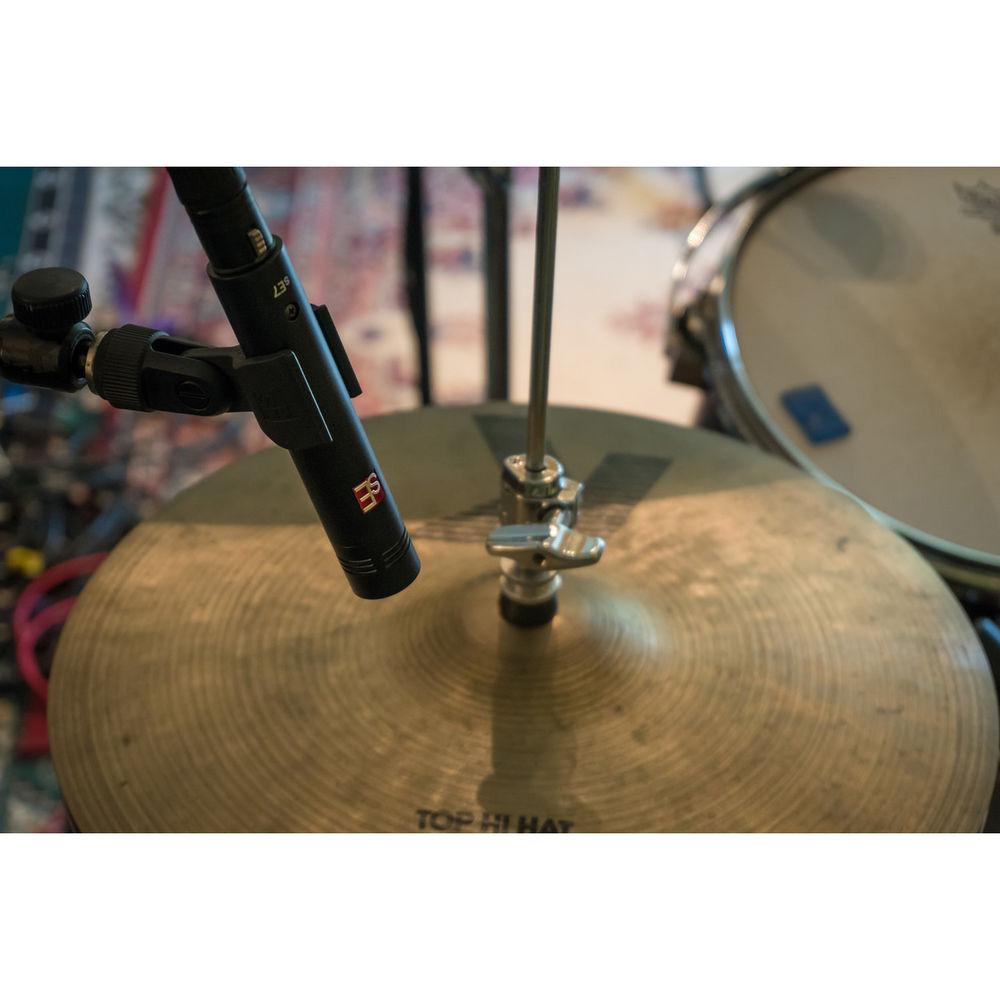

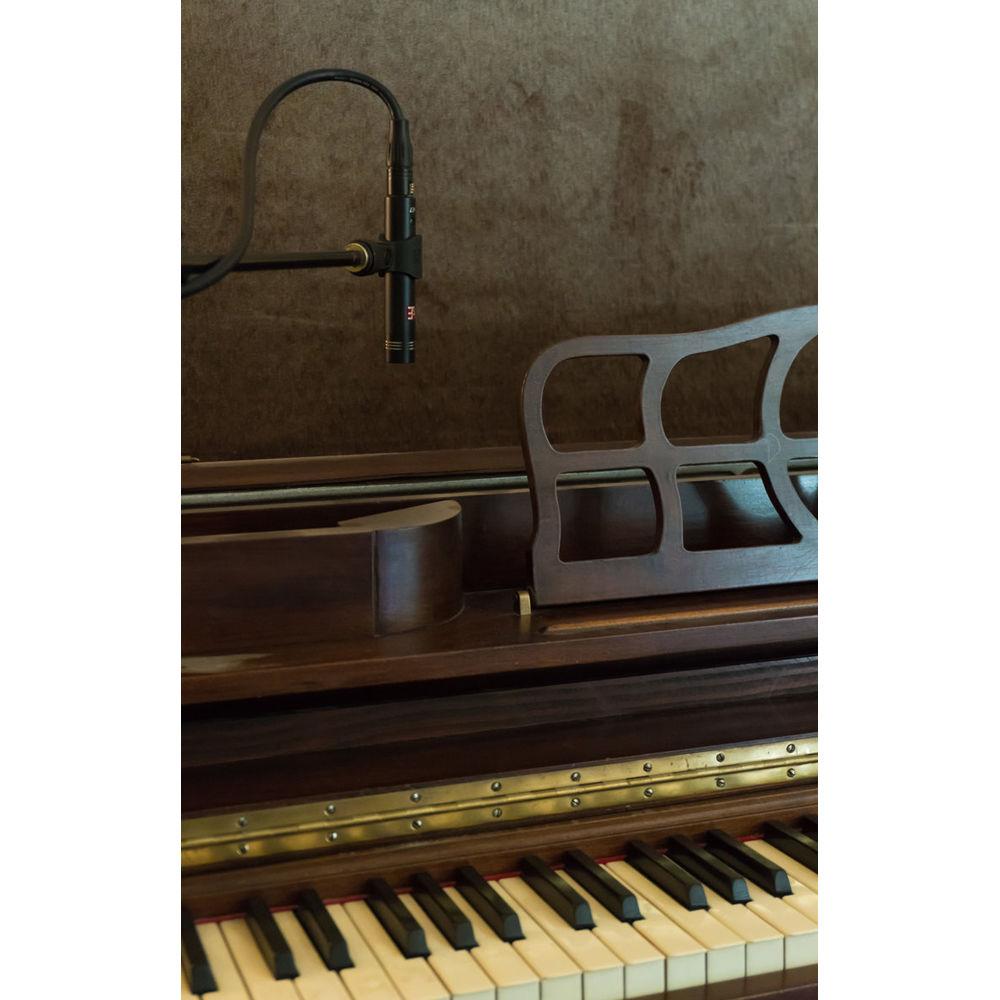

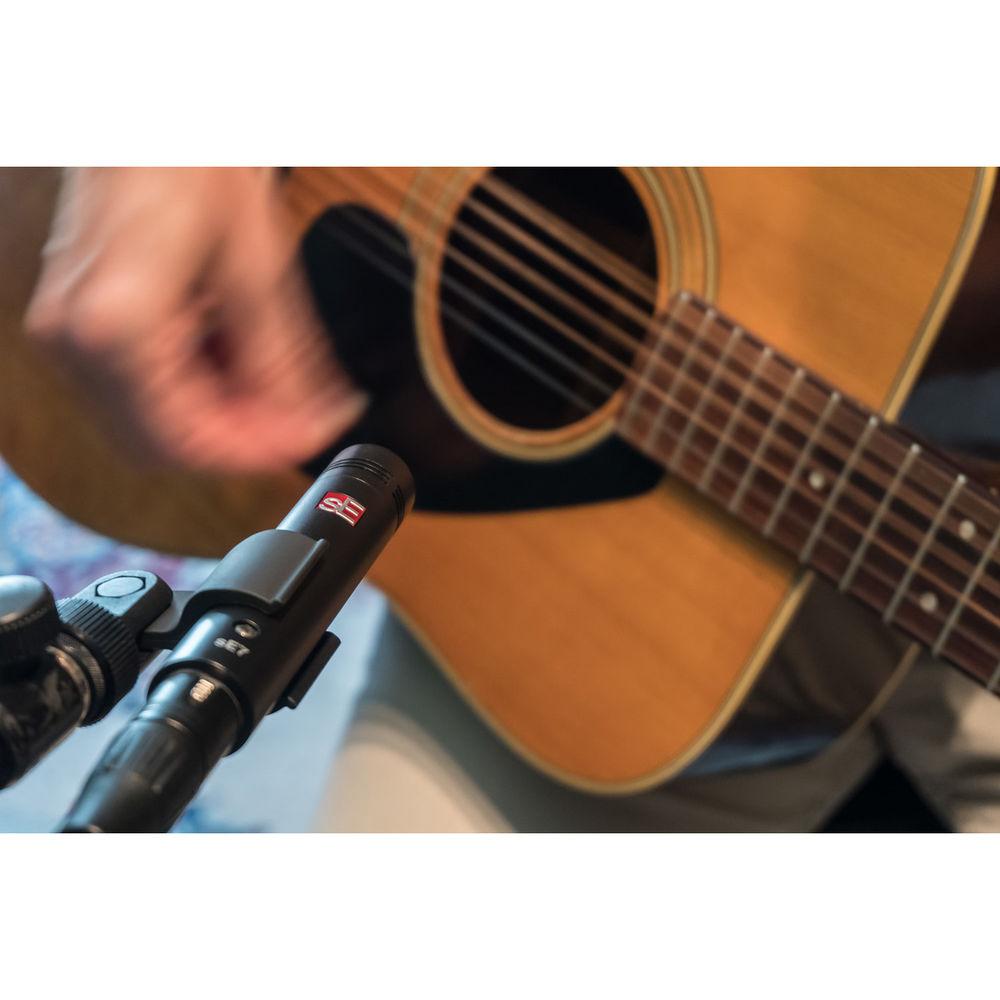

Designed for drums, guitars, pianos, or indeed, any application requiring a pencil-mic design, the sE Electronics sE7 is a back-electret, small-diaphragm condenser microphone. It sports a cardioid polar pattern. Fashioned from class-A circuitry and utilizing a transformerless output, the microphone captures sound with clarity and neutrality across its frequency response, thus eschewing overly harsh highs and aiding in a pleasurable bottom end.

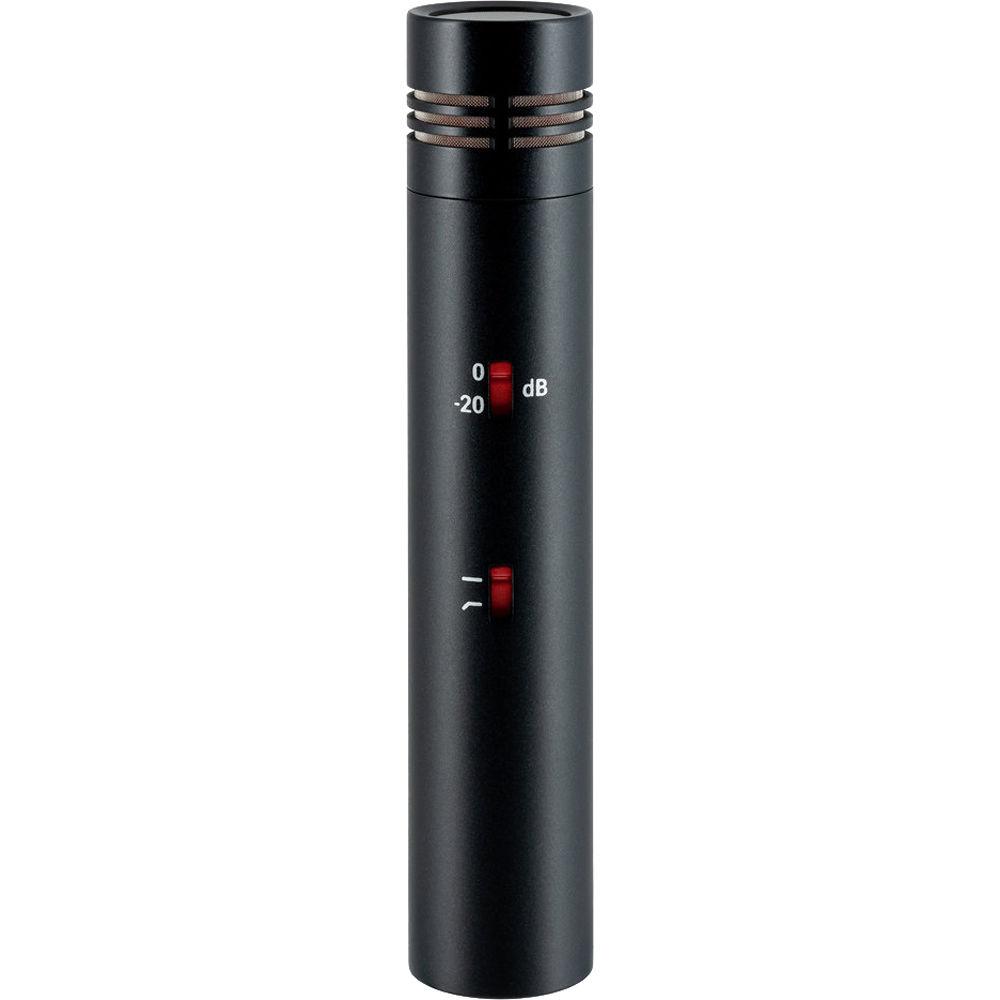

A switchable 20 dB attenuation pad allows you to use this microphone with loud instruments, doing so with a favorable signal-to-noise ratio. A low-cut filter at 80 Hz helps filter out rumble and other unwanted bass issues. Thus, you can use the sE7 in both close and distant miking scenarios.
An all-metal chassis provides a robust, roadworthy construction, while gold-plated XLR terminations ensure security in the connecting process. A mic clip and a windscreen are included. UPC: 819032011539 In the Box sE Electronics sE7 Small-Diaphragm Condenser Microphone Mic Clip Windscreen Limited 2-Year Warranty, Extended to 3-Year with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the sE Electronics sE7 Small-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterssE Electronics SE7 Specs | | | Sound Field | Mono | | Transducer | Electret Condenser | | Diaphragm | 0.5" / 12.70 mm | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 78 dB | | Equivalent Noise Level | Cardioid: 16 dB A-Weighted | | Maximum SPL | Cardioid: 136 dB SPL
Cardioid: 156 dB SPL Depending on pad position | | Pad | -20 dB | | Impedance | Cardioid: 200 Ohms | | Load Impedance | 1 kOhms | | Sensitivity | Cardioid: 19 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 80 Hz | | Dynamic Range | Cardioid: 120 dB
Cardioid: 140 dB Depending on pad position | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3 mA | | Operating Voltage | 48 V | | Length | 4.72" / 120 mm | | Diameter | 0.91" / 23 mm | | Weight | 4.52 oz / 128 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.05 x 4.55 x 2.15" |
